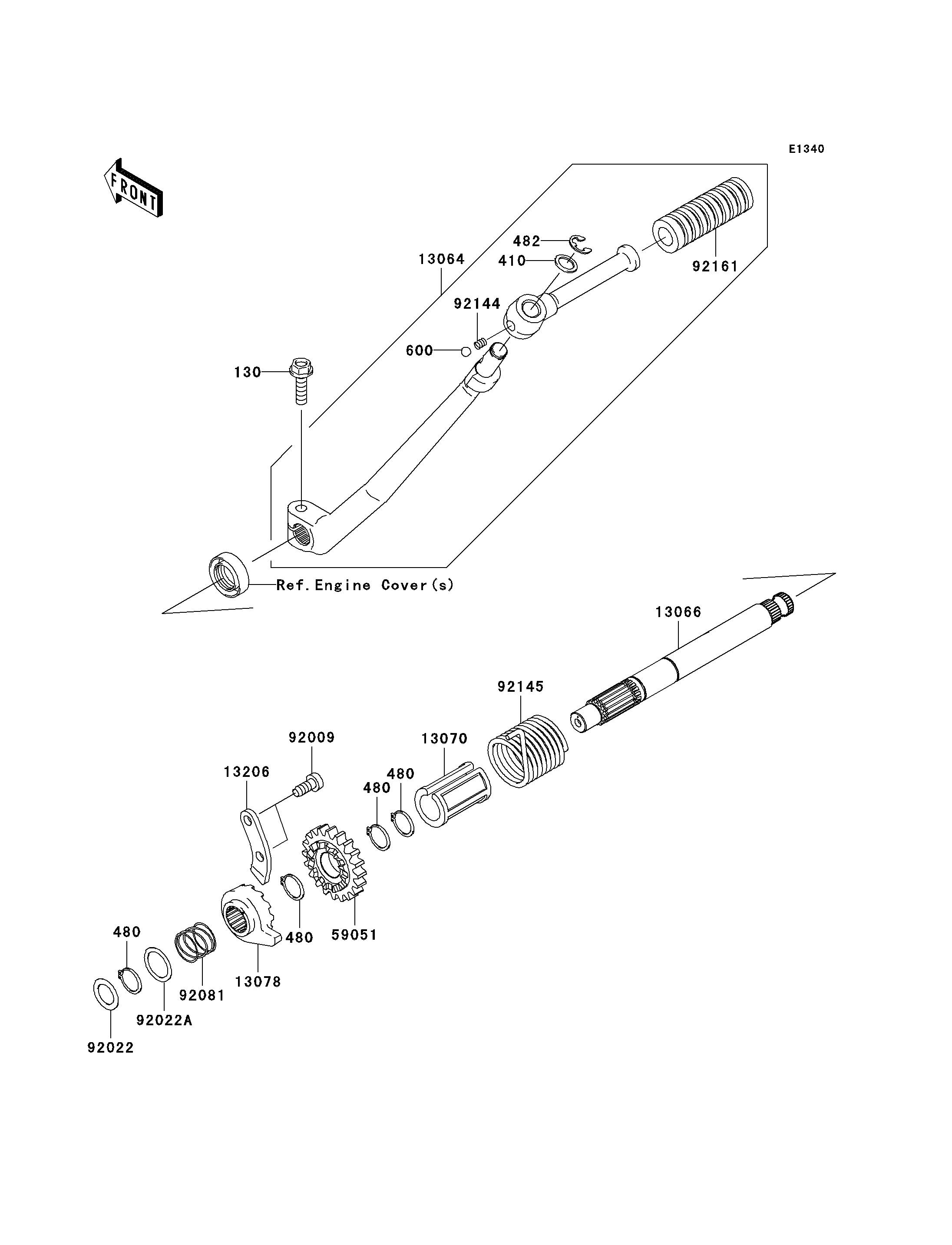

2010 Fury 125R - Kickstarter Mechanism
130
410
480
480
480
480
482
600
13064
13066
13070
13078
13206
59051
92009
92022
92022A
92081
92144
92145
92161
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,6X22 | 130 | 130CB0622 | 1 | ||
| WASHER-PLAIN-SMALL,10MM | 410 | 410AA1000 | 1 | ||
| CIRCLIP-TYPE-C,16MM | 480 | 480J1600 | 4 | ||
| CIRCLIP-TYPE-E,8MM | 482 | 482EA8000 | 1 | ||
| BALL-STEEL,1/4" | 600 | 600A0800 | 1 | ||
| LEVER-ASSY-KICK | 13064 | 13064-0055 | 1 | ||
| SHAFT-KICK | 13066 | 13066-1108 | 1 | ||
| GUIDE,KICK SHAFT | 13070 | 13070-1035 | 1 | ||
| RATCHET | 13078 | 13078-1069 | 1 | ||
| GUIDE-KICK | 13206 | 13206-1006 | 1 | ||
| GEAR-SPUR,KICK STARTER,22T | 59051 | 59051-1404 | 1 | ||
| SCREW,TAPPING | 92009 | 92009-1104 | 2 | ||
| WASHER,13.2X20X0.5 | 92022 | 92022-1224 | 1 | ||
| WASHER,16.8X22X0.5 | 92022A | 92022-315 | 1 | ||
| SPRING,RATCHET | 92081 | 92081-122 | 1 | ||
| SPRING,KICK PEDAL | 92144 | 92144-1791 | 1 | ||
| SPRING,KICK STARTER | 92145 | 92145-0626 | 1 | ||
| DAMPER | 92161 | 92161-1250 | 1 |
| BOLT-FLANGED,6X22 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER-PLAIN-SMALL,10MM | |
| REF # | 410 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP-TYPE-C,16MM | |
| REF # | 480 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP-TYPE-E,8MM | |
| REF # | 482 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BALL-STEEL,1/4" | |
| REF # | 600 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER-ASSY-KICK | |
| REF # | 13064 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHAFT-KICK | |
| REF # | 13066 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUIDE,KICK SHAFT | |
| REF # | 13070 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RATCHET | |
| REF # | 13078 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUIDE-KICK | |
| REF # | 13206 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR-SPUR,KICK STARTER,22T | |
| REF # | 59051 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,13.2X20X0.5 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,16.8X22X0.5 | |
| REF # | 92022A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,RATCHET | |
| REF # | 92081 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,KICK PEDAL | |
| REF # | 92144 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,KICK STARTER | |
| REF # | 92145 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
