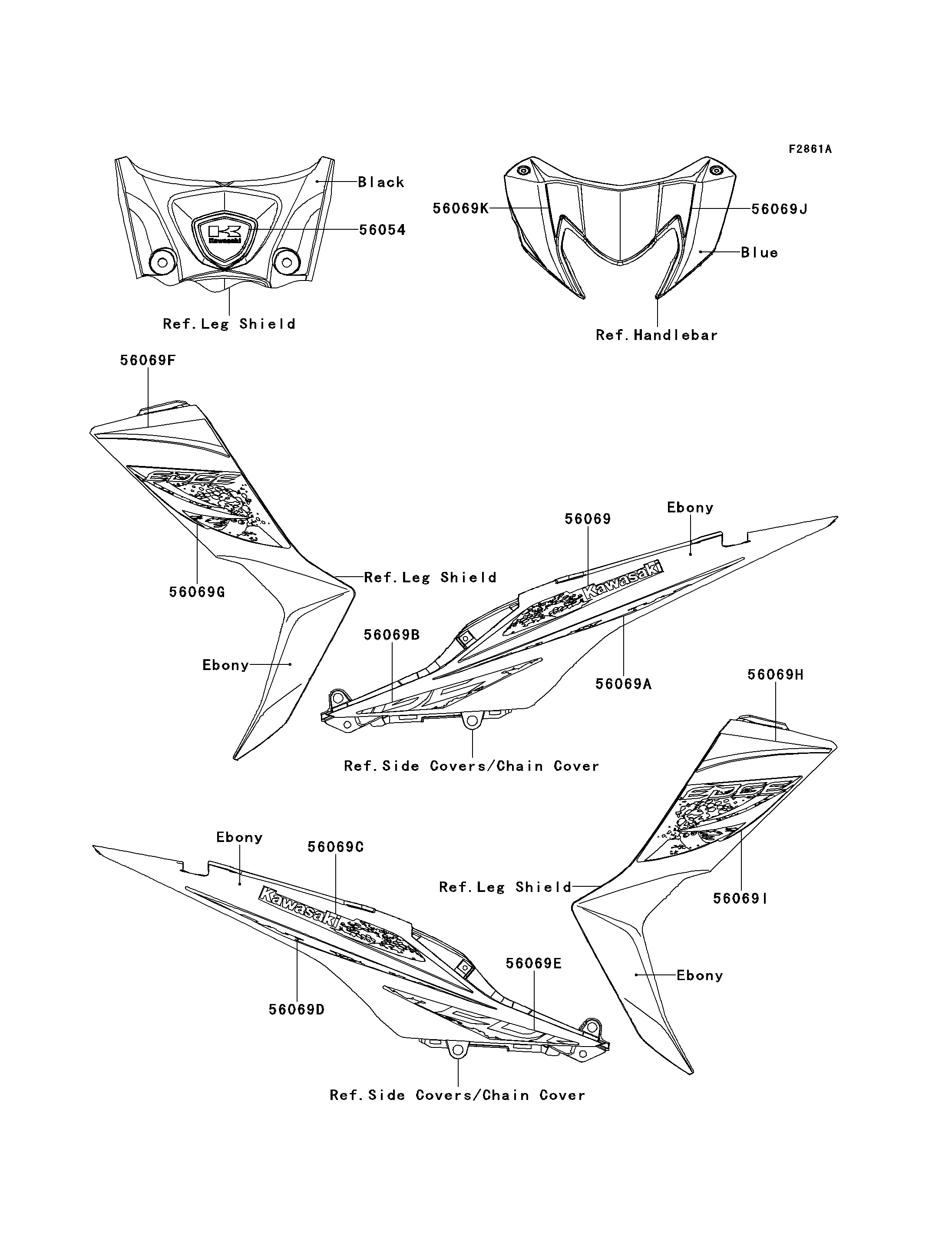

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,FR COVER,TOP,K | 56054 | 56054-0514 | 1 | ||
| PATTERN,TAIL COVER,UPP,LH | 56069 | 56069-2009 | 1 | ||
| PATTERN,TAIL COVER,CNT,LH | 56069A | 56069-2010 | 1 | ||
| PATTERN,TAIL COVER,LWR,LH | 56069B | 56069-2011 | 1 | ||
| PATTERN,TAIL COVER,UPP,RH | 56069C | 56069-2012 | 1 | ||
| PATTERN,TAIL COVER,CNT,RH | 56069D | 56069-2013 | 1 | ||
| PATTERN,TAIL COVER,LWR,RH | 56069E | 56069-2014 | 1 | ||
| PATTERN,COWLING,UPP,LH | 56069F | 56069-2015 | 1 | ||
| PATTERN,COWLING,LWR,LH | 56069G | 56069-2016 | 1 | ||
| PATTERN,COWLING,UPP,RH | 56069H | 56069-2017 | 1 | ||
| PATTERN,COWLING,LWR,RH | 56069I | 56069-2018 | 1 | ||
| PATTERN,HANDLE COVER,LH | 56069J | 56069-2122 | 1 | ||
| PATTERN,HANDLE COVER,RH | 56069K | 56069-2123 | 1 |
