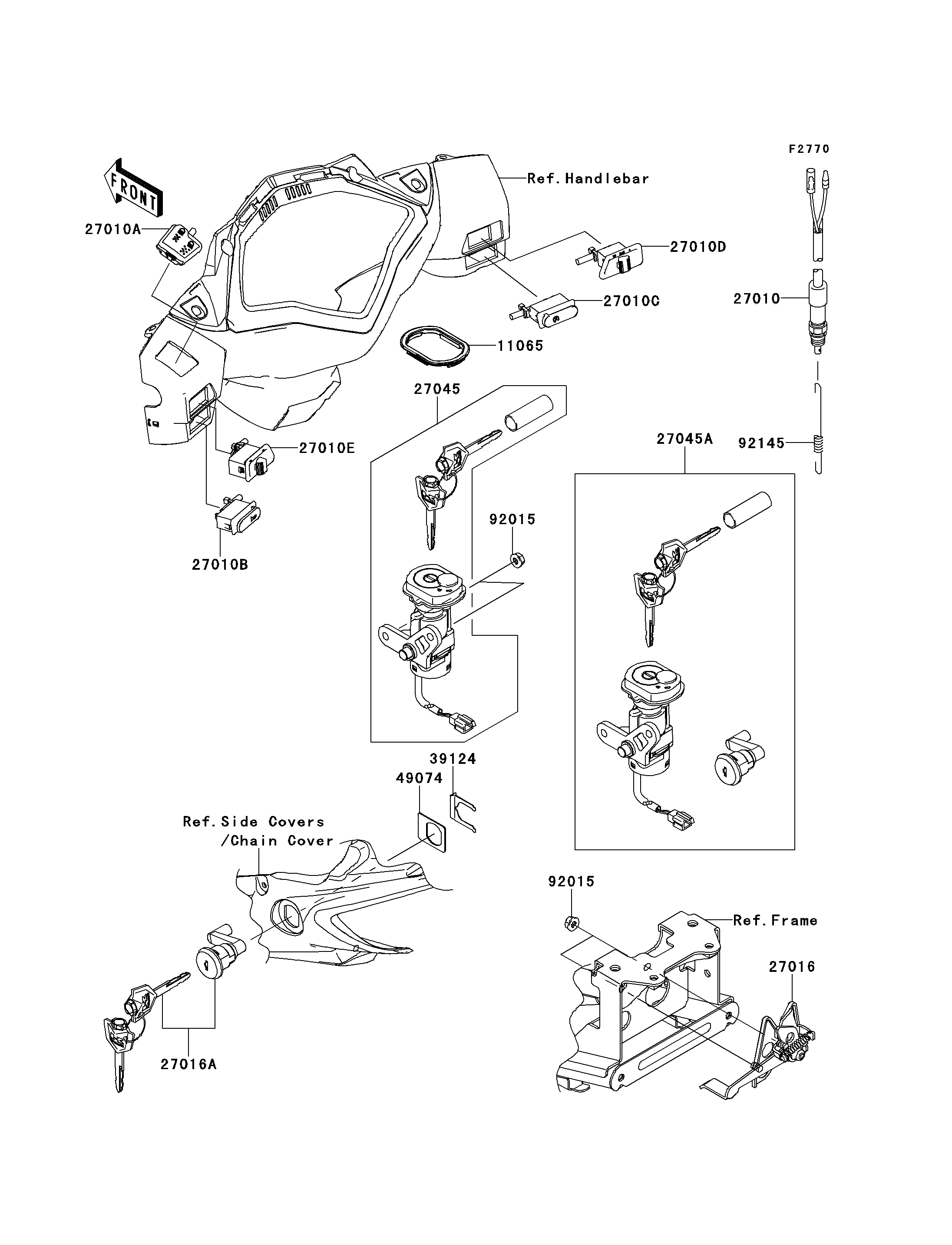

Parts Diagrams |
11065
27010
27010A
27010B
27010C
27010D
27010E
27016
27016A
27045
27045A
39124
49074
92015
92015
92145
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP,IGNITION SWITCH | 11065 | 11065-0361 | 1 | ||
| SWITCH,REAR BRAKE | 27010 | 27010-0048 | 1 | ||
| SWITCH,DIMMER | 27010A | 27010-0052 | 1 | ||
| SWITCH,HORN | 27010B | 27010-0053 | 1 | ||
| SWITCH,STARTER | 27010C | 27010-0055 | 1 | ||
| SWITCH,LIGHTING | 27010D | 27010-0056 | 1 | ||
| SWITCH,TURN SIGNAL | 27010E | 27010-0096 | 1 | ||
| LOCK-ASSY,SEAT | 27016 | 27016-0072 | 1 | ||
| LOCK-ASSY,SEAT | 27016A | 27016-5366 | 1 | ||
| SWITCH-ASSY,IGNITION | 27045 | 27045-0552 | 1 | ||
| SWITCH-ASSY | 27045A | 27045-9504 | 1 | ||
| SNAP,SEAT LOCK | 39124 | 39124-0002 | 1 | ||
| PLATE-THRUST | 49074 | 49074-0001 | 1 | ||
| NUT,FLANGED,6MM | 92015 | 92015-1367 | 4 | ||
| SPRING,REAR BRAKE SWITCH | 92145 | 92145-0250 | 1 |
