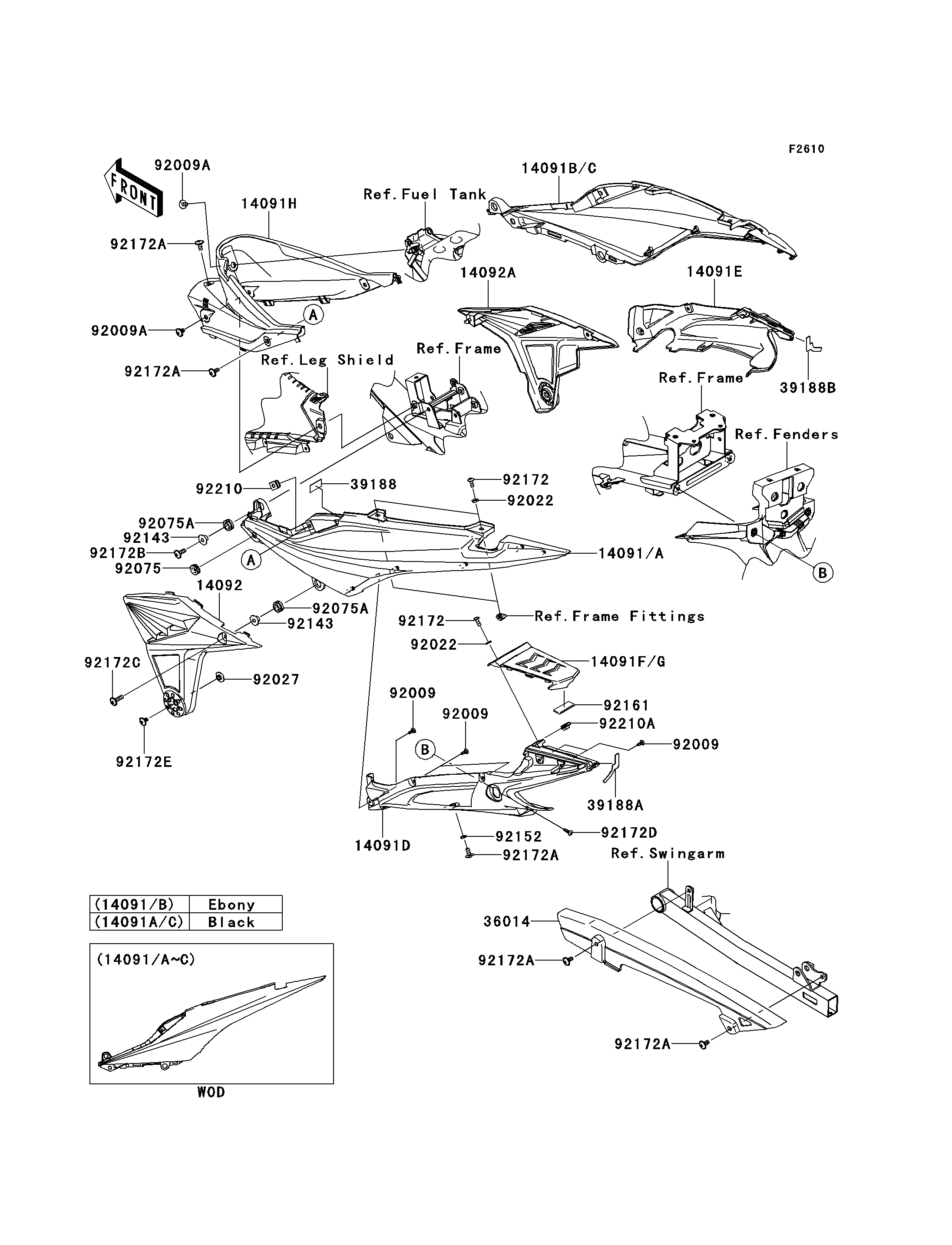

2012 EDGE R - Side Covers/Chain Cover

DOWNLOAD PDF
SELECT A NEW PART
14091
14091B
14091D
14091E
14091F
14091H
14092
14092A
36014
39188
39188A
39188B
92009
92009
92009
92009A
92009A
92022
92022
92027
92075
92075A
92075A
92143
92143
92152
92161
92172
92172
92172A
92172A
92172A
92172A
92172A
92172B
92172C
92172D
92172E
92210
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,TAIL,UPP,LH,EBONY 14091 14091-1778-20A 1
COVER,TAIL,UPP,RH,EBONY 14091B 14091-1779-20A 1
COVER,TAIL,LWR,LH,F.BLACK 14091D 14091-1780-6Z 1
COVER,TAIL,LWR,RH,F.BLACK 14091E 14091-1781-6Z 1
COVER,TAIL,CNT,EBONY 14091F 14091-1782-20A 1
COVER,TANK,F.BLACK 14091H 14091-1786-6Z 1
COVER,PIVOT,LH,F.BLACK 14092 14092-0169-6Z 1
COVER,PIVOT,RH,F.BLACK 14092A 14092-0170-6Z 1
CASE-CHAIN 36014 36014-0001 1
TAPE 39188 39188-0022 2
TAPE 39188A 39188-0023 1
TAPE 39188B 39188-0024 1
SCREW,TAPPING,4X12,BLACK 92009 92009-1142 10
SCREW,6X10 92009A 92009-1729 3
WASHER,NYLON,5.3X11.5X1.5 92022 92022-1521 6
COLLAR 92027 92027-1757 2
DAMPER 92075 92075-1629 2
DAMPER 92075A 92075-1634 4
COLLAR,L=9.6 92143 92143-1016 4
COLLAR,6.4X8X3.3 92152 92152-0813 2
DAMPER,40X15X3 92161 92161-0983 1
SCREW 92172 92172-0016 6
SCREW,6X14 92172A 92172-0055 7
SCREW,6X18 92172B 92172-0192 2
SCREW,6X22 92172C 92172-0373 2
SCREW,5X18 92172D 92172-0443 2
SCREW,6X10 92172E 92172-0491 2
NUT,6MM 92210 92210-0218 2
NUT,PLATE,5MM 92210A 92210-0262 2
