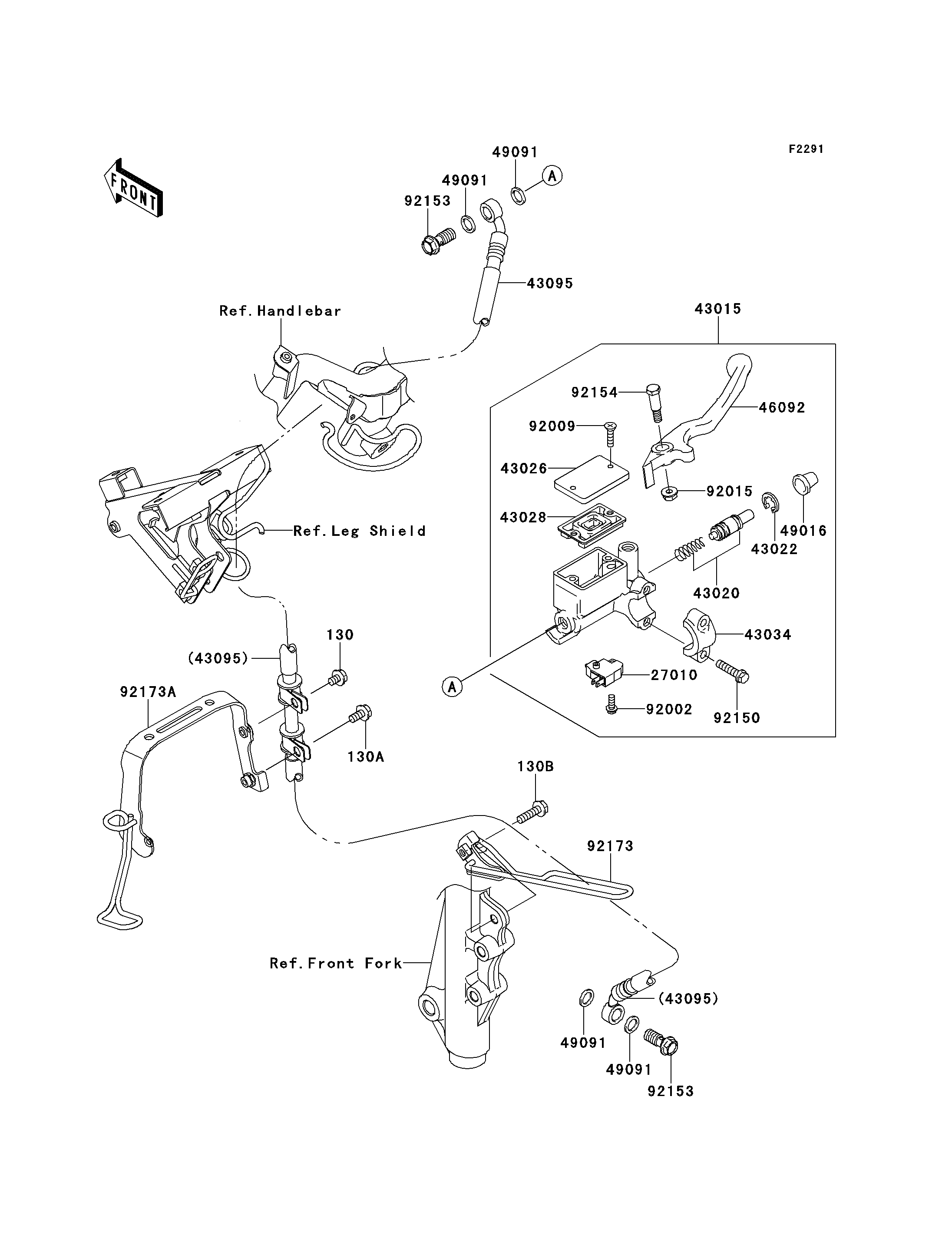

2012 EDGE R - Front Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
130
130A
130B
27010
43015
43020
43022
43026
43028
43034
43095
46092
49016
49091
49091
49091
49091
92002
92009
92015
92150
92153
92153
92154
92173
92173A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X8 130 130BB0608 1
BOLT-FLANGED,6X12 130A 130BB0612 1
BOLT-FLANGED,6X22 130B 130BB0622 1
SWITCH,BRAKE 27010 27010-0025 1
CYLINDER-ASSY-MASTER 43015 43015-0565 1
PISTON-COMP-BRAKE 43020 43020-1095 1
STOPPER-BRAKE,PISTON 43022 43022-1010 1
CAP-BRAKE 43026 43026-1074 1
DIAPHRAGM 43028 43028-1061 1
HOLDER-BRAKE 43034 43034-1110 1
HOSE-BRAKE,FR 43095 43095-0643 1
LEVER-GRIP,FR BRAKE 46092 46092-0553 1
COVER-SEAL,MASTER CYLINDER 49016 49016-1044 1
WASHER-SEAL,10.1X14.5X1.5 49091 49091-0001 4
BOLT,SCREW,4X12 92002 92002-1323 1
SCREW,4MM 92009 92009-1458 2
NUT,FLANGED,6MM 92015 92015-1528 1
BOLT 92150 92150-1452 2
BOLT,OIL,L=23 92153 92153-0029 2
BOLT,FR BRAKE LEVER 92154 92154-0882 1
CLAMP 92173 92173-0760 1
CLAMP 92173A 92173-0761 1
