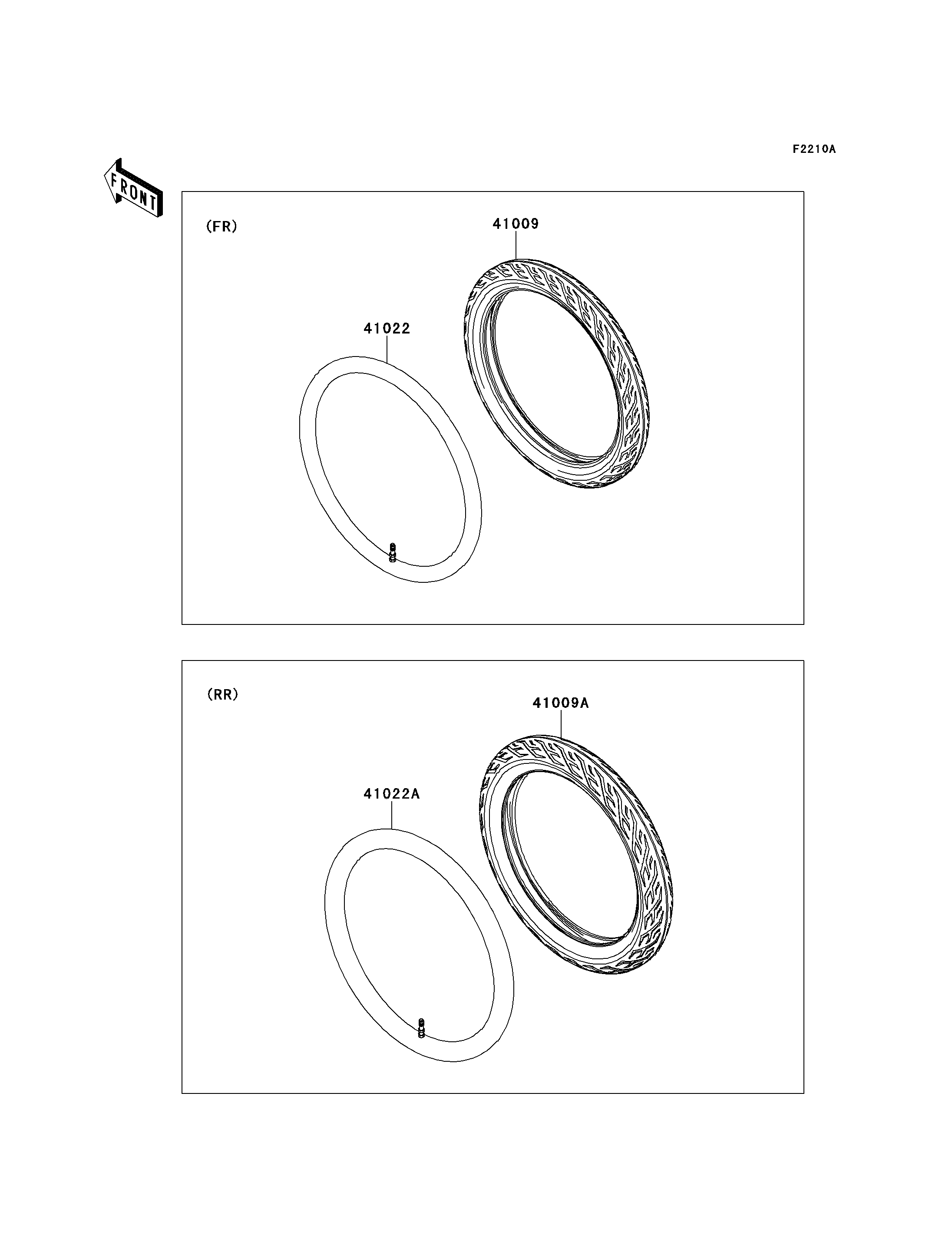

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| TIRE,FR,70/90-17 38P,NR73(IRC) | 41009 | 41009-0101 | 1 | ||
| TIRE,RR,80/90-17 44P,NR73(IRC) | 41009A | 41009-0102 | 1 | ||
| TUBE-TIRE,FR,70/90-17(IRC) | 41022 | 41022-0011 | 1 | ||
| TUBE-TIRE,RR,80/90-17(IRC) | 41022A | 41022-0012 | 1 |
| TIRE,FR,70/90-17 38P,NR73(IRC) | |
| REF # | 41009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TIRE,RR,80/90-17 44P,NR73(IRC) | |
| REF # | 41009A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE-TIRE,FR,70/90-17(IRC) | |
| REF # | 41022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE-TIRE,RR,80/90-17(IRC) | |
| REF # | 41022A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
