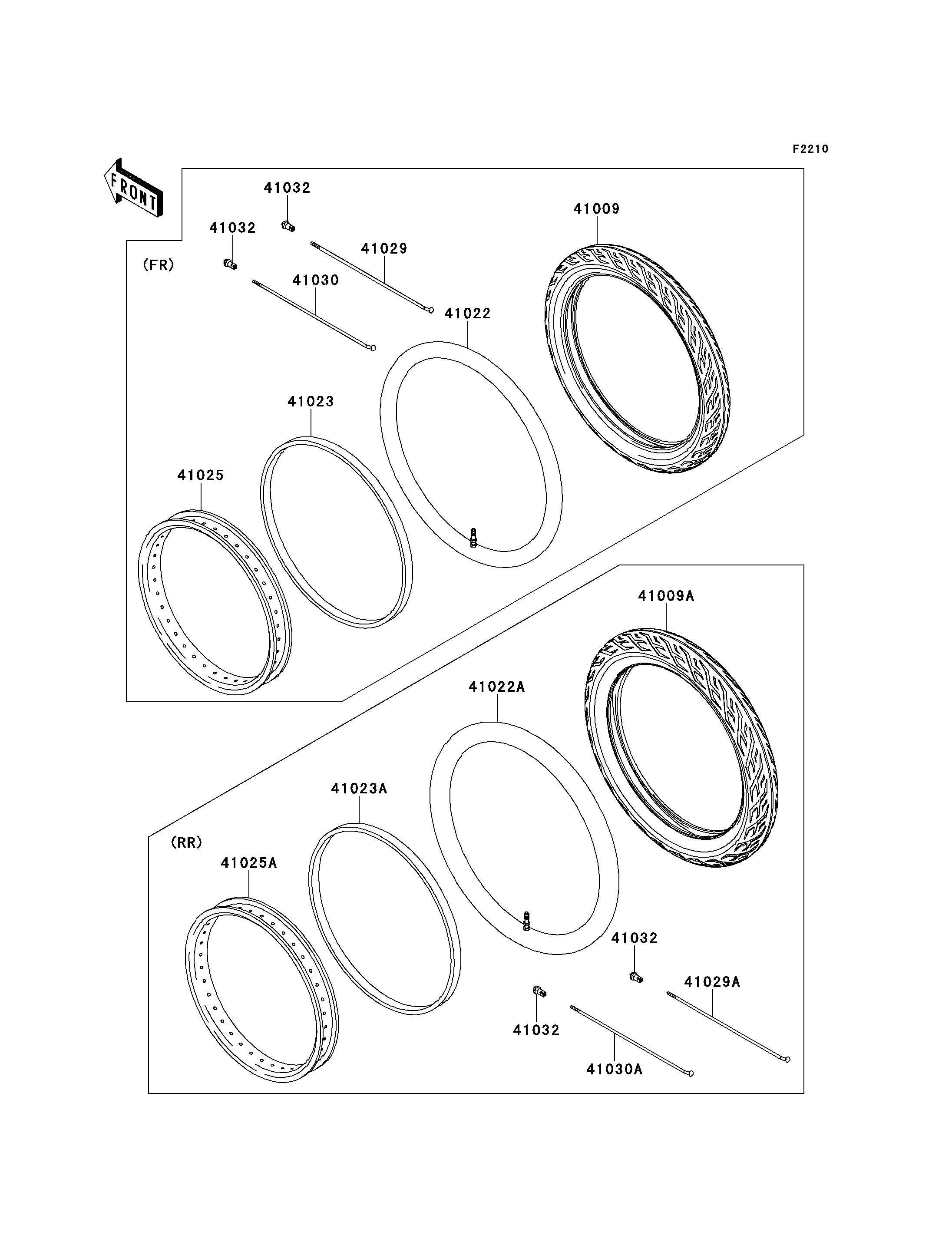

Parts Diagrams |
41009
41009A
41022
41022A
41023
41023A
41025
41025A
41029
41029A
41030
41030A
41032
41032
41032
41032
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| TIRE,FR,70/90-17 38P,NR73(IRC) | 41009 | 41009-0101 | 1 | ||
| TIRE,RR,80/90-17 44P,NR73(IRC) | 41009A | 41009-0102 | 1 | ||
| TUBE-TIRE,FR,70/90-17(IRC) | 41022 | 41022-0011 | 1 | ||
| TUBE-TIRE,RR,80/90-17(IRC) | 41022A | 41022-0012 | 1 | ||
| BAND-RIM,17-17(IRC) | 41023 | 41023-0006 | 1 | ||
| BAND-RIM,22-17(IRC) | 41023A | 41023-0007 | 1 | ||
| RIM,FR,1.40X17 | 41025 | 41025-1438 | 1 | ||
| RIM,RR,1.60X17 | 41025A | 41025-1439 | 1 | ||
| SPOKE-INNER,FR,172MMX100D | 41029 | 41029-1258 | 18 | ||
| SPOKE-INNER,RR,160.5MMX96D | 41029A | 41029-1326 | 18 | ||
| SPOKE-OUTER,FR,172MMX88D | 41030 | 41030-1141 | 18 | ||
| SPOKE-OUTER,RR,160MMX86D | 41030A | 41030-1179 | 18 | ||
| NIPPLE-SPOKE | 41032 | 41032-024 | 72 |
| TIRE,FR,70/90-17 38P,NR73(IRC) | |
| REF # | 41009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TIRE,RR,80/90-17 44P,NR73(IRC) | |
| REF # | 41009A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE-TIRE,FR,70/90-17(IRC) | |
| REF # | 41022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE-TIRE,RR,80/90-17(IRC) | |
| REF # | 41022A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND-RIM,17-17(IRC) | |
| REF # | 41023 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND-RIM,22-17(IRC) | |
| REF # | 41023A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RIM,FR,1.40X17 | |
| REF # | 41025 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RIM,RR,1.60X17 | |
| REF # | 41025A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPOKE-INNER,FR,172MMX100D | |
| REF # | 41029 |
|---|---|
| PART NUMBER | |
| QUANTITY | 18 |
| DESTINATION | |
| REMARKS | |
| SPOKE-INNER,RR,160.5MMX96D | |
| REF # | 41029A |
|---|---|
| PART NUMBER | |
| QUANTITY | 18 |
| DESTINATION | |
| REMARKS | |
| SPOKE-OUTER,FR,172MMX88D | |
| REF # | 41030 |
|---|---|
| PART NUMBER | |
| QUANTITY | 18 |
| DESTINATION | |
| REMARKS | |
| SPOKE-OUTER,RR,160MMX86D | |
| REF # | 41030A |
|---|---|
| PART NUMBER | |
| QUANTITY | 18 |
| DESTINATION | |
| REMARKS | |
| NIPPLE-SPOKE | |
| REF # | 41032 |
|---|---|
| PART NUMBER | |
| QUANTITY | 72 |
| DESTINATION | |
| REMARKS | |
