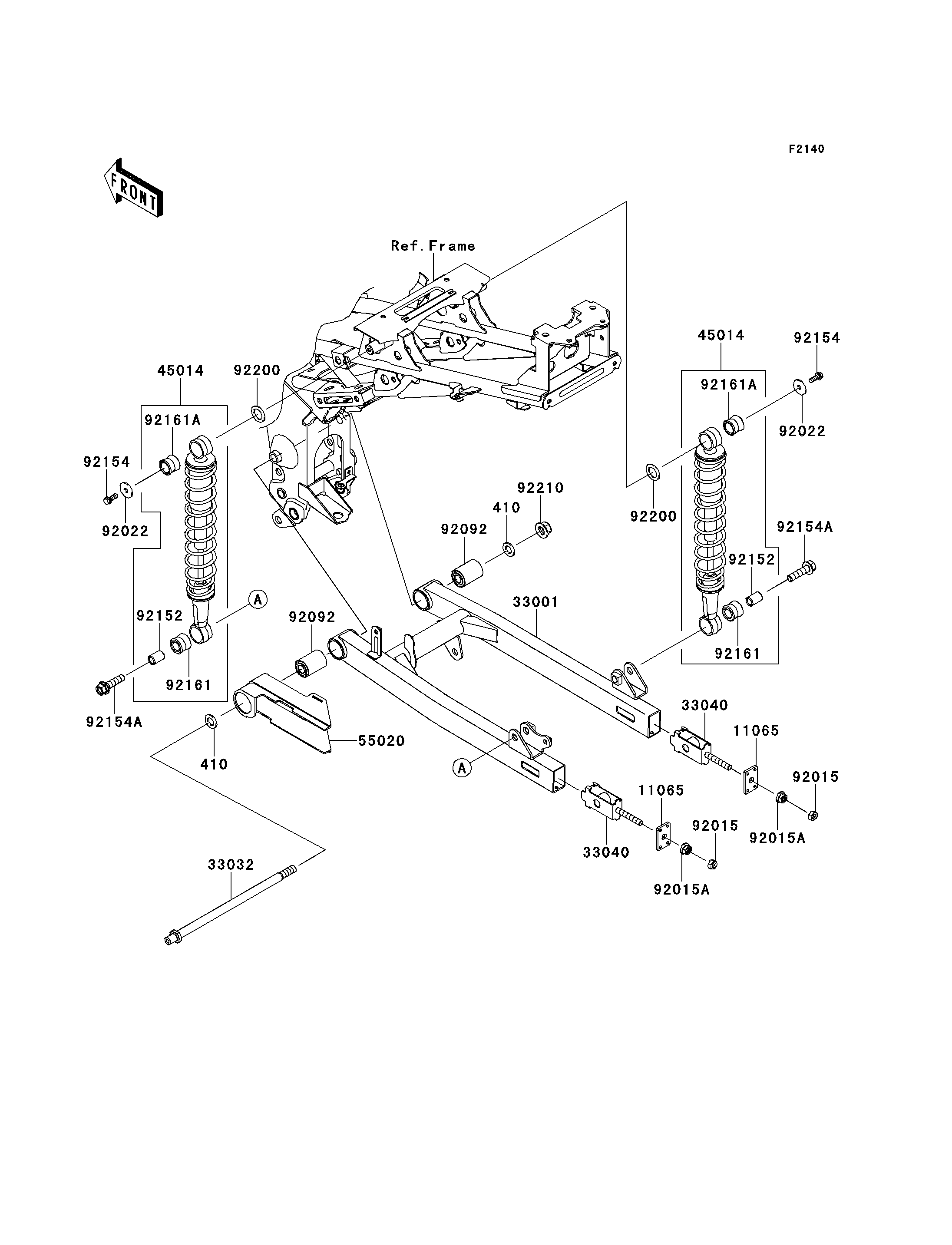

2012 EDGE R - Swingarm/Shock Absorber

DOWNLOAD PDF
SELECT A NEW PART
410
410
11065
11065
33001
33032
33040
33040
45014
45014
55020
92015
92015
92015A
92015A
92022
92022
92092
92092
92152
92152
92154
92154
92154A
92154A
92161
92161
92161A
92161A
92200
92200
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
WASHER-PLAIN-SMALL,12MM 410 410AA1200 2
CAP 11065 11065-0314 2
ARM-COMP-SWING,P.SILVER 33001 33001-0556-458 1
SHAFT-SWING ARM 33032 33032-0034 1
ADJUSTER-CHAIN 33040 33040-0074 2
SHOCKABSORBER,BLACK 45014 45014-0357-10 2
GUARD,CHAIN 55020 55020-1770 1
NUT,8MM 92015 92015-1364 2
NUT,FLANGED,8MM 92015A 92015-1406 2
WASHER,6.5X24X2 92022 92022-1690 2
BUSHING-RUBBER 92092 92092-1089 2
COLLAR 92152 92152-0830 2
BOLT,FLANGED,6X16 92154 92154-0768 2
BOLT,FLANGED,10X38 92154A 92154-0769 2
DAMPER,SHOCKABSORBER 92161 92161-1262 2
DAMPER,SHOCKABSORBER 92161A 92161-1263 2
WASHER,17X26X1.6 92200 92200-1607 2
NUT,LOCK,FLANGED,12MM 92210 92210-0348 1
