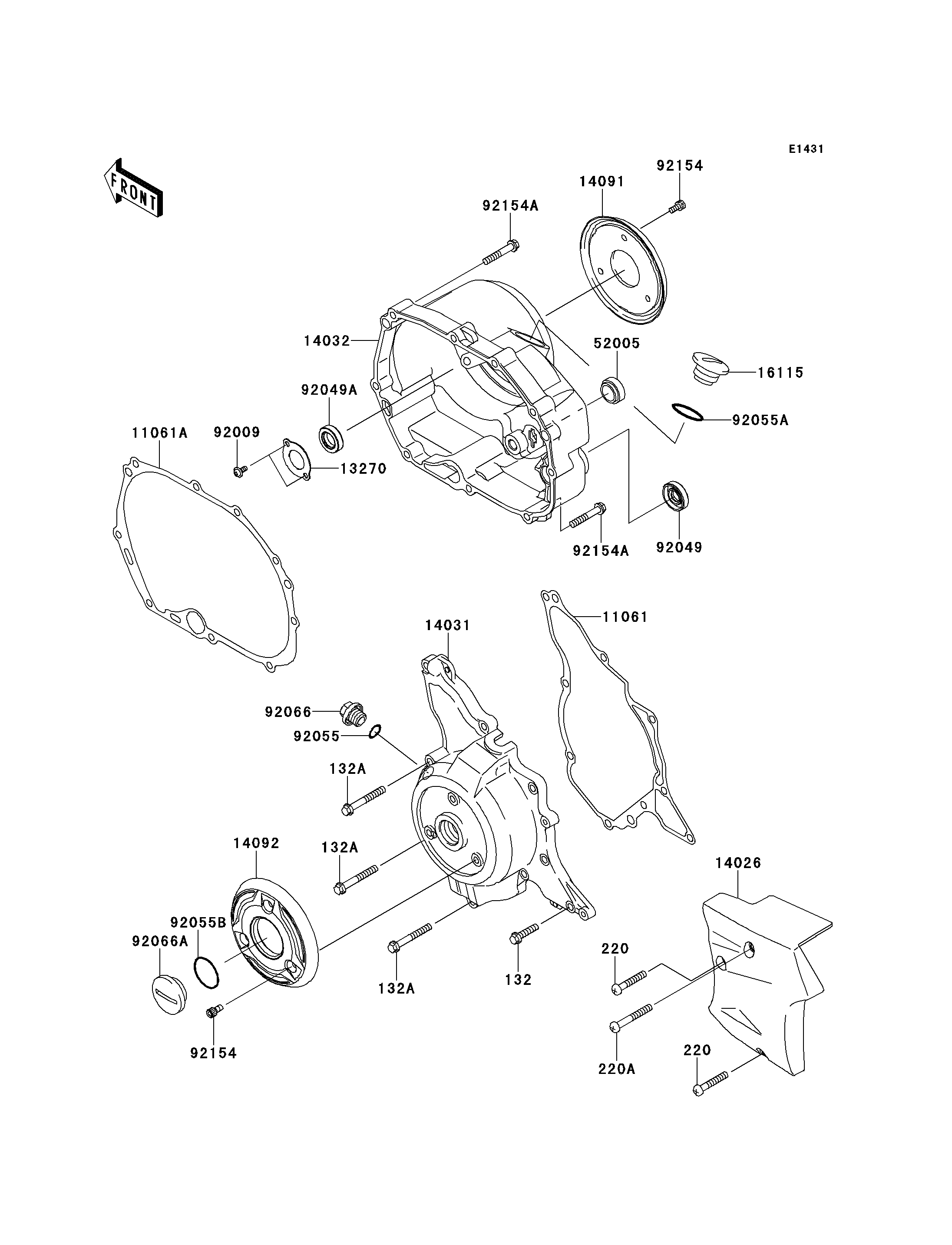

2012 EDGE R - Engine Cover(s)

DOWNLOAD PDF
SELECT A NEW PART
132
132A
132A
132A
220
220
220A
11061
11061A
13270
14026
14031
14032
14091
14092
16115
52005
92009
92049
92049A
92055
92055A
92055B
92066
92066A
92154
92154
92154A
92154A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X25 132 132BA0625 6
BOLT-FLANGED-SMALL,6X45 132A 132BA0645 3
SCREW-PAN-CROS,6X35 220 220AD0635 2
SCREW-PAN-CROS,6X45 220A 220AD0645 1
GASKET,GENERATOR COVER 11061 11061-0257 1
GASKET,CLUTCH COVER 11061A 11061-0426 1
PLATE 13270 13270-1800 1
COVER-CHAIN,M.M.GOLD 14026 14026-0073-D3 1
COVER-GENERATOR,M.M.GOLD 14031 14031-0119-D3 1
COVER-CLUTCH,M.M.GOLD 14032 14032-0112-D3 1
COVER,HEAT INSULATOR 14091 14091-1444 1
COVER 14092 14092-0029 1
CAP-OIL FILLER 16115 16115-1067 1
GAUGE,OIL LEVEL 52005 52005-0019 1
SCREW 92009 92009-1745 2
SEAL-OIL,S 12 28 7 HS 92049 92049-0051 1
SEAL-OIL 92049A 92049-1430 1
RING-O,14.8X2.4 92055 92055-0194 1
RING-O,31.5X2.6 92055A 92055-049 1
RING-O,25.7X2.4 92055B 92055-0716 1
PLUG,14X10 92066 92066-0724 1
PLUG,GENERATOR COVER CAP 92066A 92066-1565 1
BOLT,SOCKET,5X10 92154 92154-0789 6
BOLT 92154A 92154-1134 9
