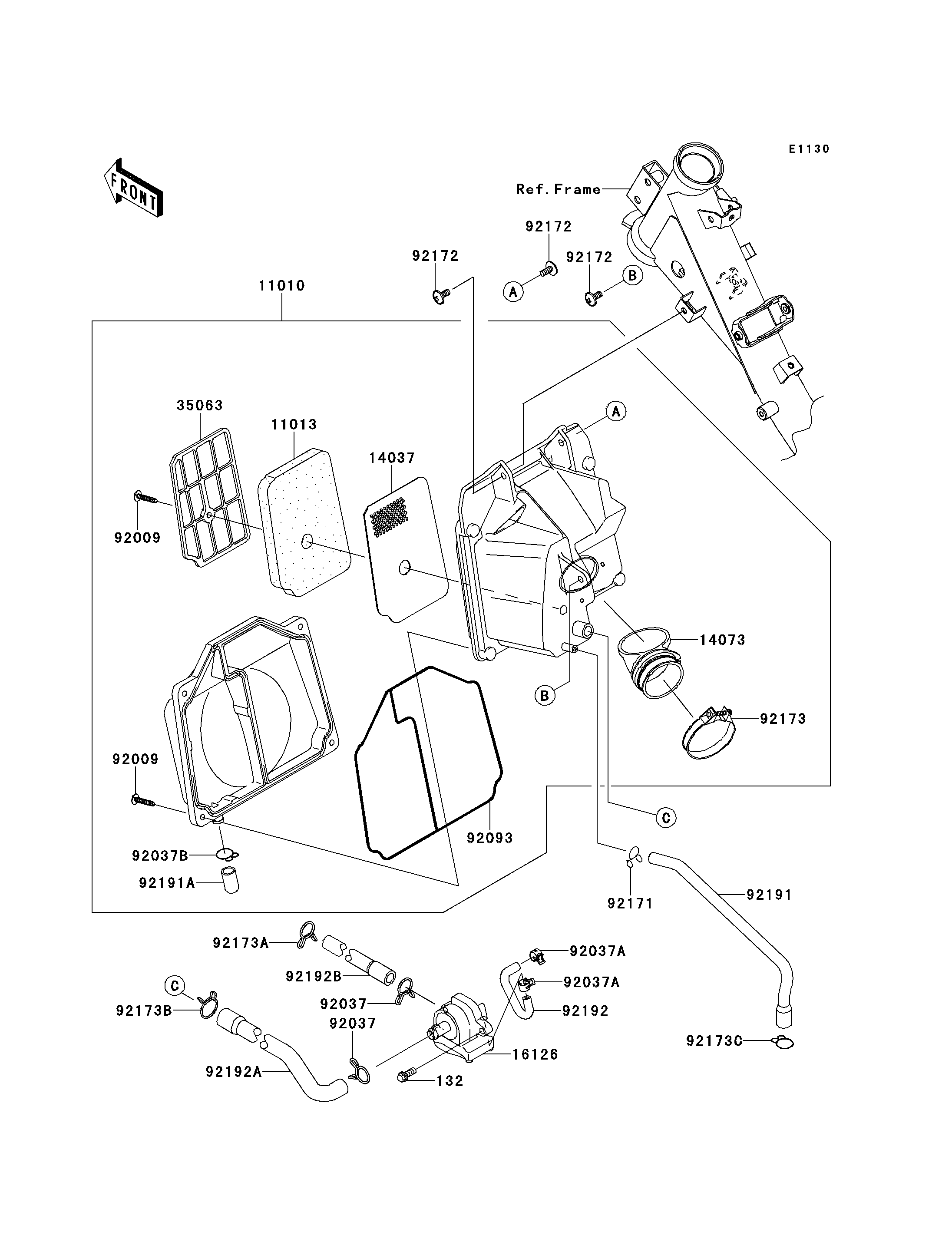

2012 EDGE R - Air Cleaner

DOWNLOAD PDF
SELECT A NEW PART
132
11010
11013
14037
14073
16126
35063
92009
92009
92037
92037
92037A
92037A
92037B
92093
92171
92172
92172
92172
92173
92173A
92173B
92173C
92191
92191A
92192
92192A
92192B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X16 132 132BA0616 2
FILTER-ASSY-AIR 11010 11010-0725 1
ELEMENT-AIR FILTER 11013 11013-1293 1
SCREEN,AIR FILTER 14037 14037-1297 1
DUCT 14073 14073-1810 1
VALVE,2ND-AIR 16126 16126-0052 1
STAY,AIR FILTER 35063 35063-1210 1
SCREW,5X25 92009 92009-1986 5
CLAMP 92037 92037-1593 2
CLAMP 92037A 92037-1601 2
CLAMP,14.5MM 92037B 92037-1900 1
SEAL,AIR FILTER 92093 92093-1568 1
CLAMP 92171 92171-1521 1
SCREW,6X14 92172 92172-0055 3
CLAMP 92173 92173-0784 1
CLAMP,14MM 92173A 92173-0790 1
CLAMP,20MM 92173B 92173-0795 1
CLAMP,15MM 92173C 92173-0814 1
TUBE,BREATHER 92191 92191-1684 1
TUBE,DRAIN 92191A 92191-1685 1
TUBE,FITTING-ACV 92192 92192-0806 1
TUBE,A/C-ACV 92192A 92192-0807 1
TUBE,ACV-HEAD 92192B 92192-1102 1
