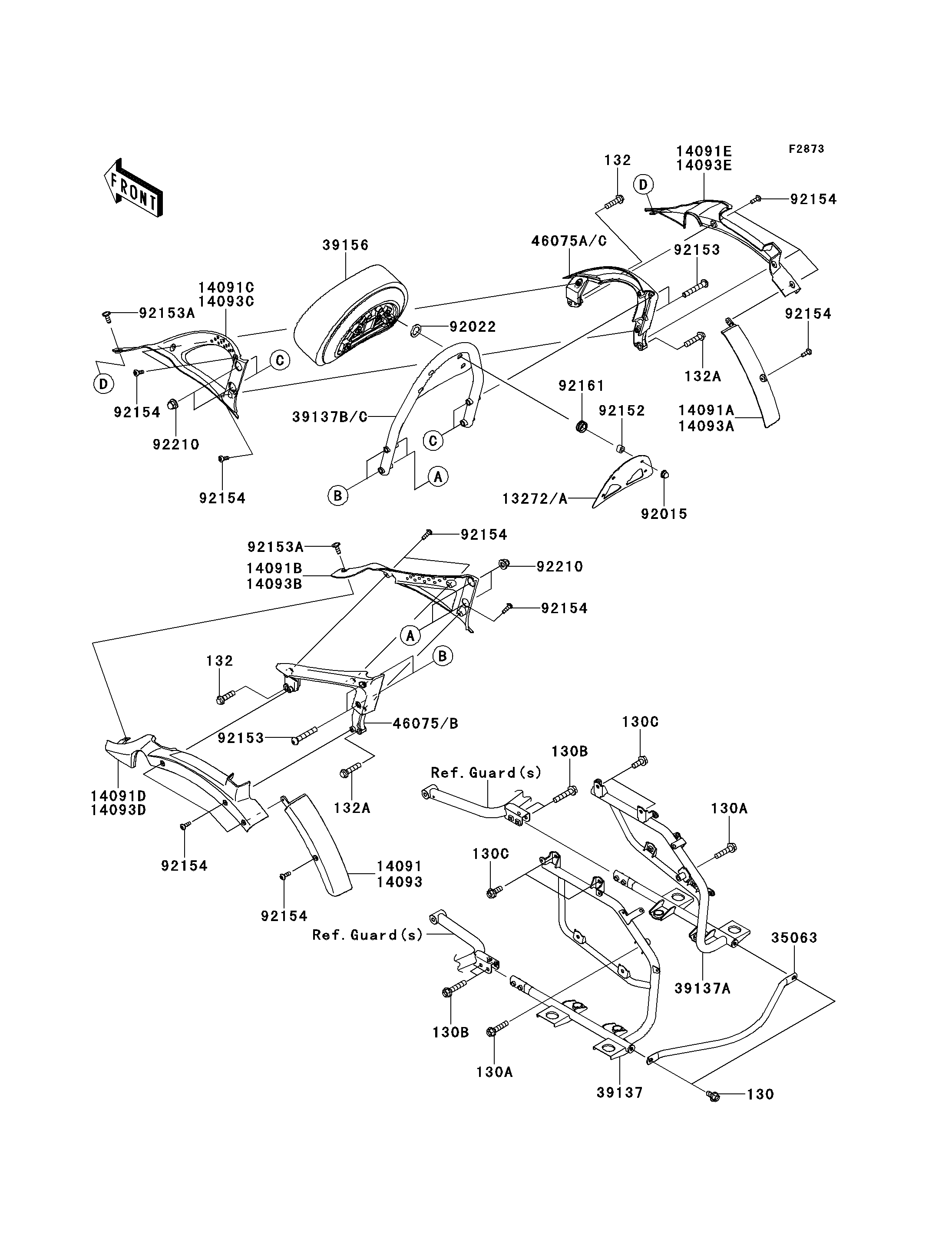

2014 VULCAN® 1700 NOMAD™ ABS - Saddlebags(Side Bag Bracket)

DOWNLOAD PDF
SELECT A NEW PART
130
130A
130A
130B
130B
130C
130C
132
132
132A
132A
13272
14091
14091A
14091B
14091C
14091D
14091E
35063
39137
39137A
39137B
39156
46075
46075A
92015
92022
92152
92153
92153
92153A
92153A
92154
92154
92154
92154
92154
92154
92154
92154
92161
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X14 130 130BA0814 2
BOLT-FLANGED,8X35 130A 130BA0835 2
BOLT-FLANGED,8X40 130B 130BA0840 4
BOLT-FLANGED,8X20 130C 130CA0820 4
BOLT-FLANGED-SMALL,8X30 132 132BA0830 2
BOLT-FLANGED-SMALL,8X35 132A 132BA0835 2
PLATE,BACKREST 13272 13272-0747 1
COVER,STRUT,LH 14091 14091-0957 1
COVER,STRUT,RH 14091A 14091-0958 1
COVER,GRIP,INNER,LH 14091B 14091-0962 1
COVER,GRIP,INNER,RH 14091C 14091-0963 1
COVER,GRIP,OUTER,LH 14091D 14091-0964 1
COVER,GRIP,OUTER,RH 14091E 14091-0965 1
STAY,PANNIER 35063 35063-0537 1
STAY-COMP,PANNIER,LH 39137 39137-0048 1
STAY-COMP,PANNIER,RH 39137A 39137-0049 1
STAY-COMP,BACKREST 39137B 39137-0053 1
PAD,BACKREST,BLACK 39156 39156-0657-MA 1
GRIP,LH 46075 46075-0075 1
GRIP,RH 46075A 46075-0076 1
NUT,CAP,6MM 92015 92015-1385 4
WASHER,15.1X23X1.8 92022 92022-1755 4
COLLAR,6.5X12X7.5 92152 92152-0793 4
BOLT,SOCKET,8X50 92153 92153-0420 4
BOLT,SOCKET,6X16 92153A 92153-0817 2
BOLT,SOCKET,5X16 92154 92154-0209 14
DAMPER 92161 92161-0570 4
NUT,CAP,8MM 92210 92210-1161 4
