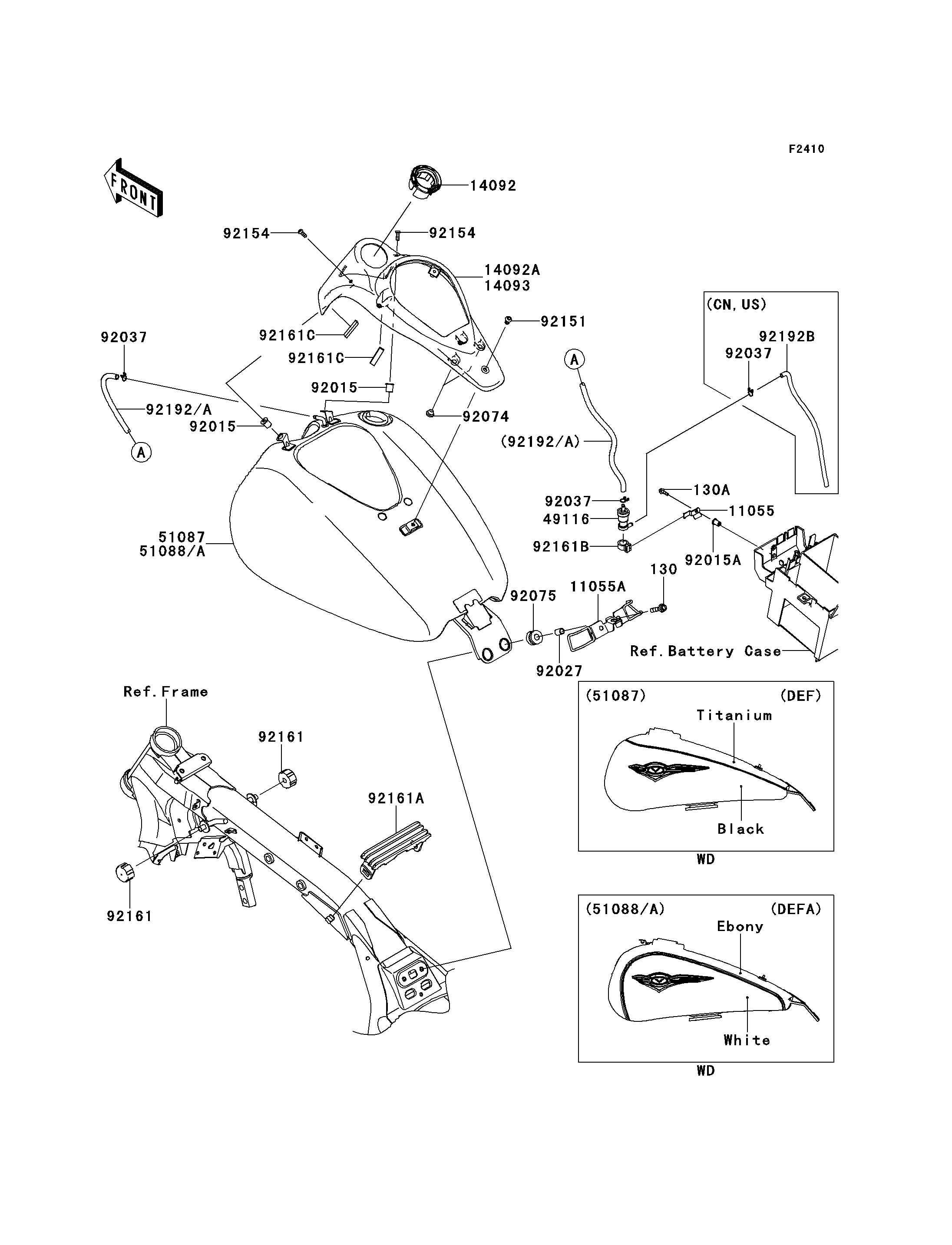

2014 VULCAN® 1700 NOMAD™ ABS - Fuel Tank

DOWNLOAD PDF
SELECT A NEW PART
130
130A
11055
11055A
14092
14092A
49116
51087
92015
92015
92015A
92027
92037
92037
92037
92074
92075
92151
92154
92154
92161
92161
92161A
92161B
92161C
92161C
92192
92192B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X30 130 130BA0830 2
BOLT-FLANGED,5X16 130A 130BB0516 1
BRACKET,CHECK VALVE 11055 11055-1512 1
BRACKET,SEAT 11055A 11055-1552 1
COVER,IGNITION SWITCH 14092 14092-0046 1
COVER,METER 14092A 14092-0117 1
VALVE-ASSY,CHECK 49116 49116-0014 1
TANK-COMP-FUEL,BLACK/TITANIUM 51087 51087-5442-28K 1
NUT 92015 92015-1700 2
NUT,WELL,5MM 92015A 92015-1757 1
COLLAR,8.8X12X17 92027 92027-034 2
CLAMP,TUBE 92037 92037-147 3
PLUG,7X2 92074 92074-028 2
DAMPER 92075 92075-1736 2
BOLT,SOCKET,6X10 92151 92151-1449 1
BOLT,SOCKET,6X16 92154 92154-0242 2
DAMPER,FUEL TANK 92161 92161-0293 2
DAMPER,FUEL TANK 92161A 92161-0577 1
DAMPER,CHECK VALVE 92161B 92161-0744 1
DAMPER,10X40X7 92161C 92161-1502 2
TUBE,5X10X980 92192 92192-0829 1
TUBE 92192B 92192-0837 1
