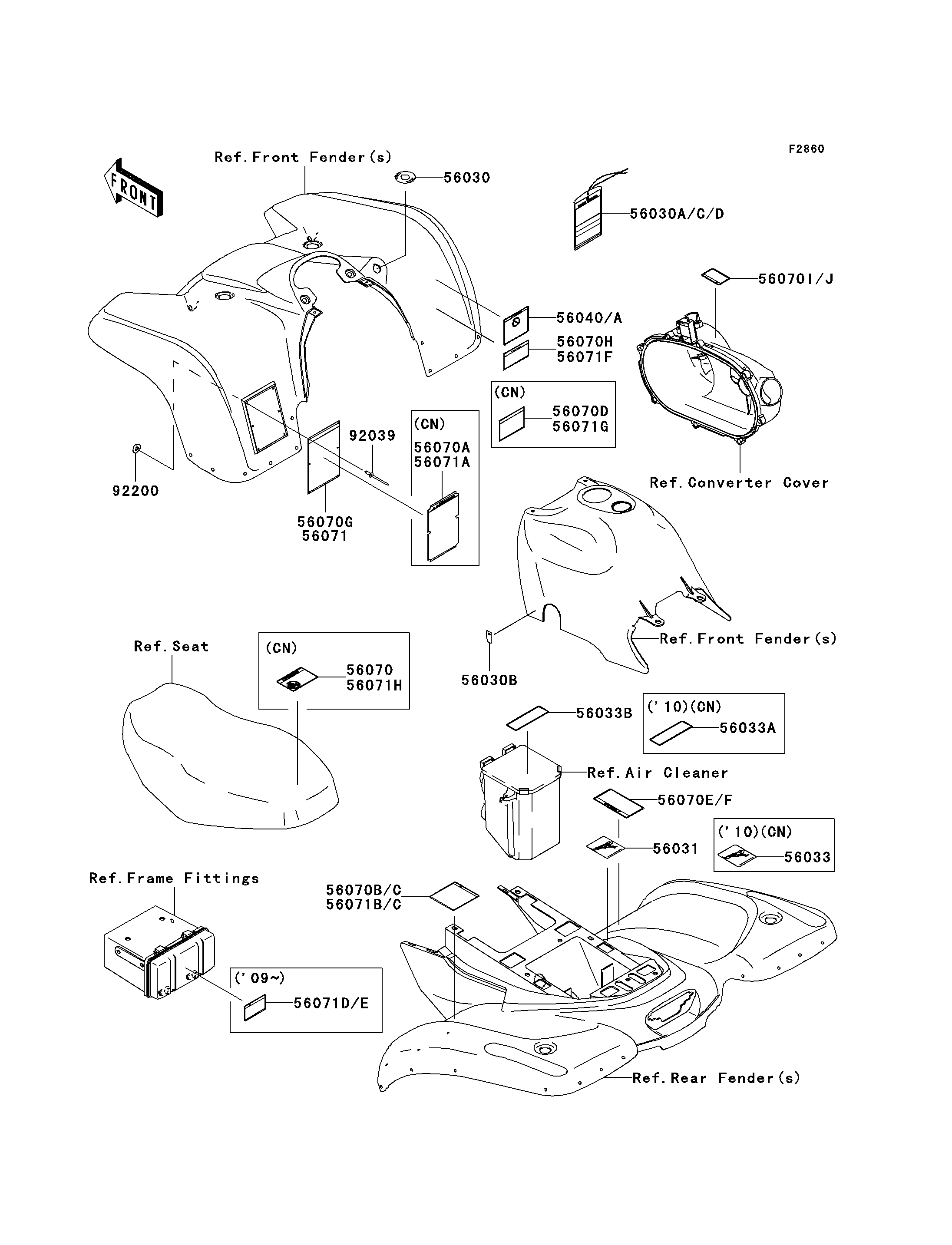

2006 Prairie 360 4X4 - Labels

DOWNLOAD PDF
SELECT A NEW PART
56030
56030
56030B
56030B
56031
56031
56033B
56033B
56040
56040
56070B
56070B
56070E
56070E
56070G
56070G
56070H
56070H
56070I
56070I
92039
92039
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LABEL,IGNITION SWITCH 56030 56030-0014 1
LABEL,FUEL TAP 56030B 56030-0129 1
LABEL-MANUAL,BATTERY VENT 56031 56031-1963 1
LABEL-MANUAL,AIR CLEANER 56033B 56033-1263 1
LABEL-WARNING,UNDER 16 56040 56040-1276 1
LABEL-WARNING,TIRE&LOAD 56070B 56070-0033 1
LABEL-WARNING,DRIVE BELT 56070E 56070-0038 1
LABEL-WARNING,SERIOUS INJURY 56070G 56070-1151 1
LABEL-WARNING,SHIFT LEVER 56070H 56070-1170 1
LABEL-WARNING,CVT COVER 56070I 56070-1269 1
RIVET,3.2X8 92039 92039-3763 6
WASHER,3.5X8X1 92200 92200-1251 6
LABEL,HANGTAG 56030A 56030-0047 1 US
LABEL-WARNING,AGE 56040A 56040-1325 1 CN
LABEL-WARNING,NO PASSENGER 56070 56070-0018 1 CN
LABEL-WARNING,GENERAL 56070A 56070-0019 1 CN
LABEL-WARNING,TIRE&LOAD 56070C 56070-0034 1 CN
LABEL-WARNING,SHIFT LEVER(FREN 56070D 56070-0037 1 CN
LABEL-WARNING,DRIVE BELT(FRENC 56070F 56070-0039 1 CN
LABEL-WARNING,CVT COVER(FRENCH 56070J 56070-1271 1 CN
