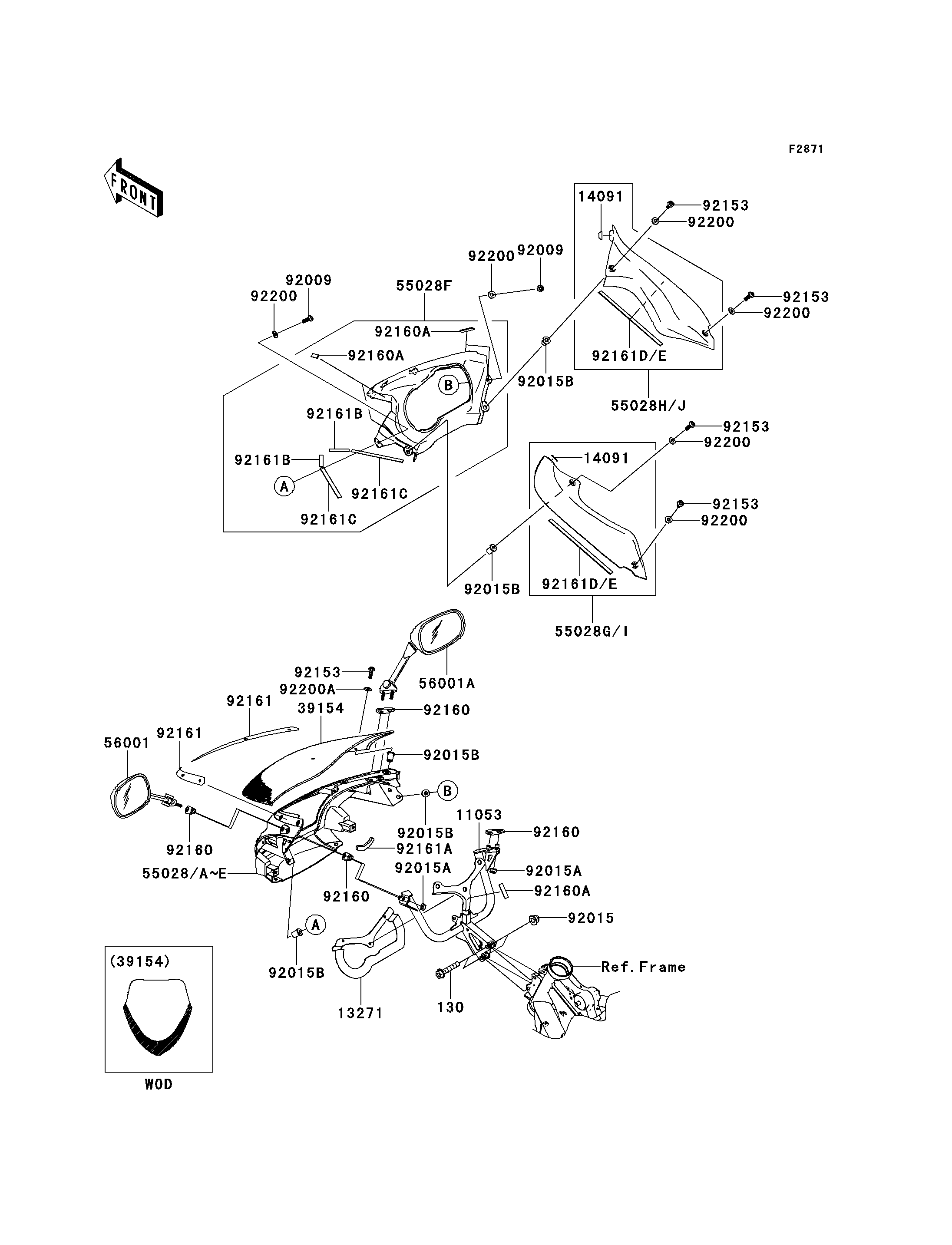

2007 Ninja® 650R - Cowling(Upper)

DOWNLOAD PDF
SELECT A NEW PART
130
11053
13271
14091
14091
39154
55028C
55028E
55028F
55028I
55028J
56001
56001A
92009
92009
92015
92015A
92015A
92015B
92015B
92015B
92015B
92015B
92153
92153
92153
92153
92153
92160
92160
92160
92160
92160A
92160A
92160A
92161
92161
92161A
92161B
92161B
92161C
92161C
92161E
92161E
92200
92200
92200
92200
92200
92200
92200A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X30 130 130L0830 2
BRACKET,MIRROR&METER 11053 11053-1883 1
PLATE,UPP COWLING 13271 13271-0761 1
COVER 14091 14091-0606 2
WINDSHIELD 39154 39154-0015 1
COWLING,UPP,P.RED 55028C 55028-0113-234 1
COWLING,UPP,C.P.BLUE 55028E 55028-0113-723 1
COWLING,INNER,CNT 55028F 55028-0121 1
COWLING,INNER,LH 55028I 55028-0157 1
COWLING,INNER,RH 55028J 55028-0158 1
MIRROR-ASSY,LH 56001 56001-0043 1
MIRROR-ASSY,RH 56001A 56001-0044 1
SCREW,5X16 92009 92009-1909 2
NUT,CAP,8MM,BLACK 92015 92015-1174 2
NUT,6MM 92015A 92015-1386 4
NUT,WELL,5MM 92015B 92015-1757 8
BOLT,SOCKET,5X16 92153 92153-1244 8
DAMPER,MIRROR 92160 92160-1089 4
DAMPER 92160A 92160-1099 5
DAMPER,UPP COWLING 92161 92161-0376 2
DAMPER,UPP COWLING 92161A 92161-0401 1
DAMPER,INNER COWLING,CNT 92161B 92161-0402 2
DAMPER,INNER COWLING,CNT 92161C 92161-0403 2
DAMPER,INNER COWLING 92161E 92161-0435 2
WASHER,NYLONE,5.3X11.5X0.5 92200 92200-0006 6
WASHER,NYLON,5.2X12X1 92200A 92200-1011 4
