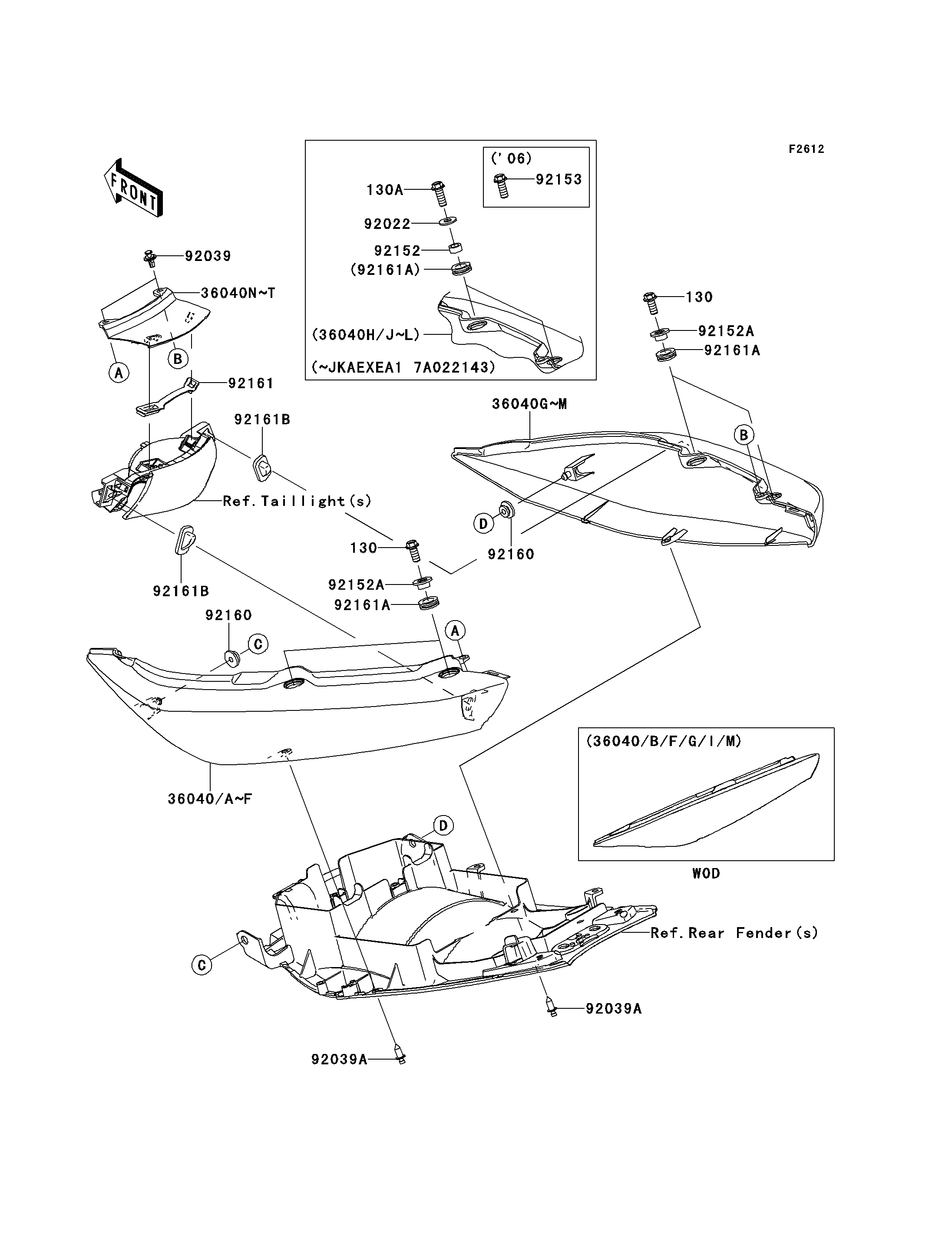

2007 Ninja® 650R - Seat Cover

DOWNLOAD PDF
SELECT A NEW PART
130
130
130A
36040C
36040E
36040J
36040L
36040Q
36040S
92022
92039
92039A
92039A
92152
92152A
92152A
92160
92160
92161
92161A
92161A
92161B
92161B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X20 130 130P0820 4 (JKAEXEA1 7A022144 - )
BOLT-FLANGED,8X22 130A 130W0822 4 ( - JKAEXEA1 7A022143)
COVER-TAIL,LH,P.RED 36040C 36040-0037-234 1
COVER-TAIL,LH,C.P.BLUE 36040E 36040-0037-723 1
COVER-TAIL,RH,P.RED 36040J 36040-0038-234 1
COVER-TAIL,RH,C.P.BLUE 36040L 36040-0038-723 1
COVER-TAIL,CNT,P.RED 36040Q 36040-0039-234 1
COVER-TAIL,CNT,C.P.BLUE 36040S 36040-0039-723 1
WASHER,8.5X20X1.6,BLACK 92022 92022-1317 4 ( - JKAEXEA1 7A022143)
RIVET 92039 92039-1227 2
RIVET 92039A 92039-1283 2
COLLAR,9.2X13.8X6.5 92152 92152-0312 4 ( - JKAEXEA1 7A022143)
COLLAR 92152A 92152-0550 4 (JKAEXEA1 7A022144 - )
DAMPER 92160 92160-1613 2
DAMPER,TAIL LAMP 92161 92161-0191 1
DAMPER 92161A 92161-0279 4
DAMPER 92161B 92161-0280 2
