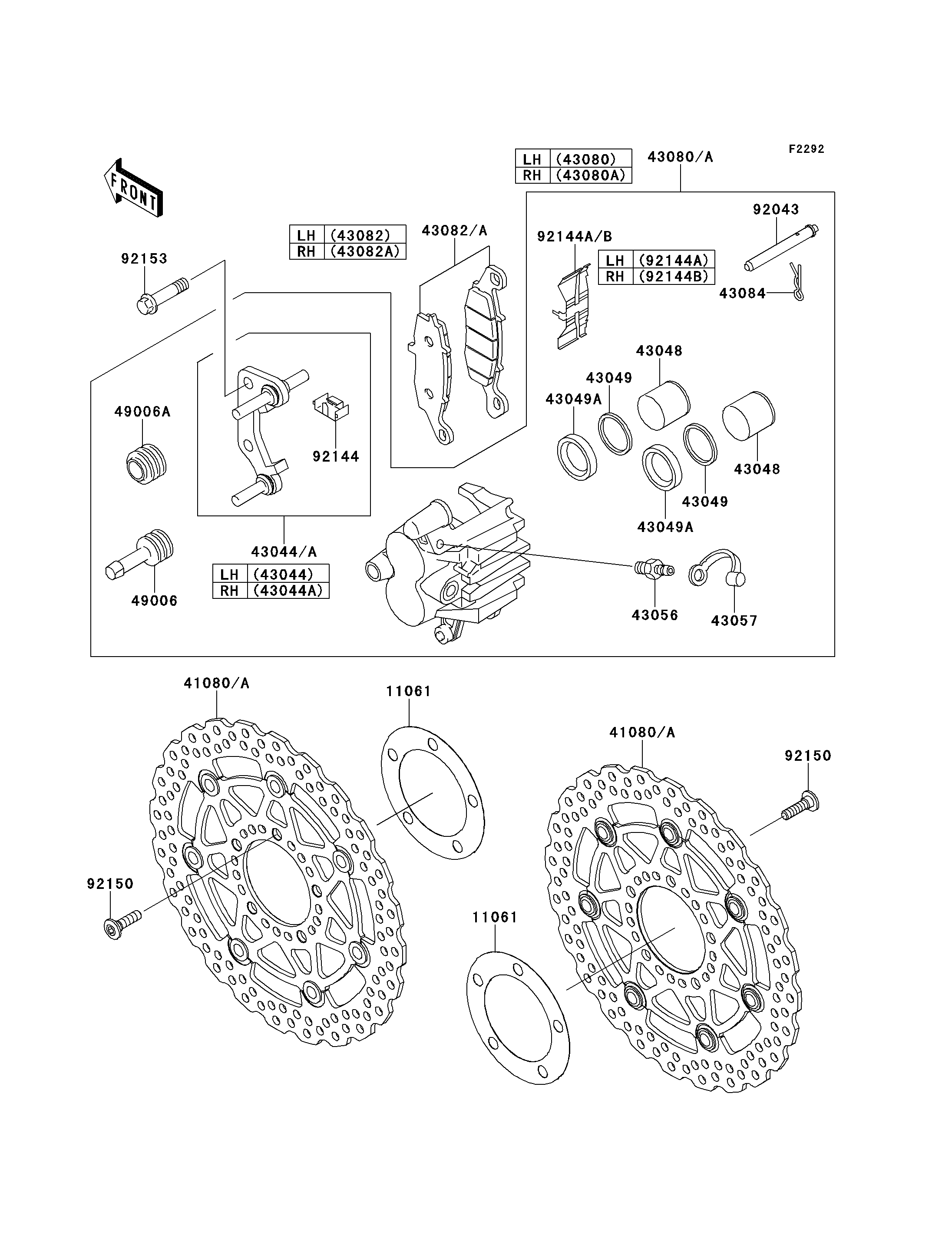

2007 Ninja® 650R - Front Brake

DOWNLOAD PDF
SELECT A NEW PART
11061
11061
41080A
41080A
43044
43044A
43048
43048
43049
43049
43049A
43049A
43056
43057
43080
43080A
43082
43082A
43084
49006
49006A
92043
92144
92144A
92144B
92150
92150
92153
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,DISC PLATE 11061 11061-0029 2
DISC,FR,BLACK+DISC SILVER 41080A 41080-0103-11I 2
HOLDER-COMP-CALIPER,FR,LH 43044 43044-1115 1
HOLDER-COMP-CALIPER,FR,RH 43044A 43044-1116 1
PISTON-CALIPER 43048 43048-1073 4
PACKING 43049 43049-1068 4
PACKING,PISTON SEAL 43049A 43049-1092 4
BREATHER-BRAKE 43056 43056-1054 2
CAP-BREATHER 43057 43057-003 2
CALIPER-SUB-ASSY,FR,LH,BLACK 43080 43080-5017-DJ 1
CALIPER-SUB-ASSY,FR,RH,BLACK 43080A 43080-5028-DJ 1
PAD-ASSY-BRAKE,LH 43082 43082-0050 1
PAD-ASSY-BRAKE,RH 43082A 43082-0051 1
CLAMP,PAD 43084 43084-003 2
BOOT,CALIPER 49006 49006-1054 2
BOOT,CALIPER 49006A 49006-1095 2
PIN,PAD 92043 92043-1489 2
SPRING,STOPPER 92144 92144-1831 2
SPRING,PAD,LH 92144A 92144-1832 1
SPRING,PAD,RH 92144B 92144-1844 1
BOLT,SOCKET,8X30 92150 92150-1771 10
BOLT,FLANGED,10X41 92153 92153-0587 4
