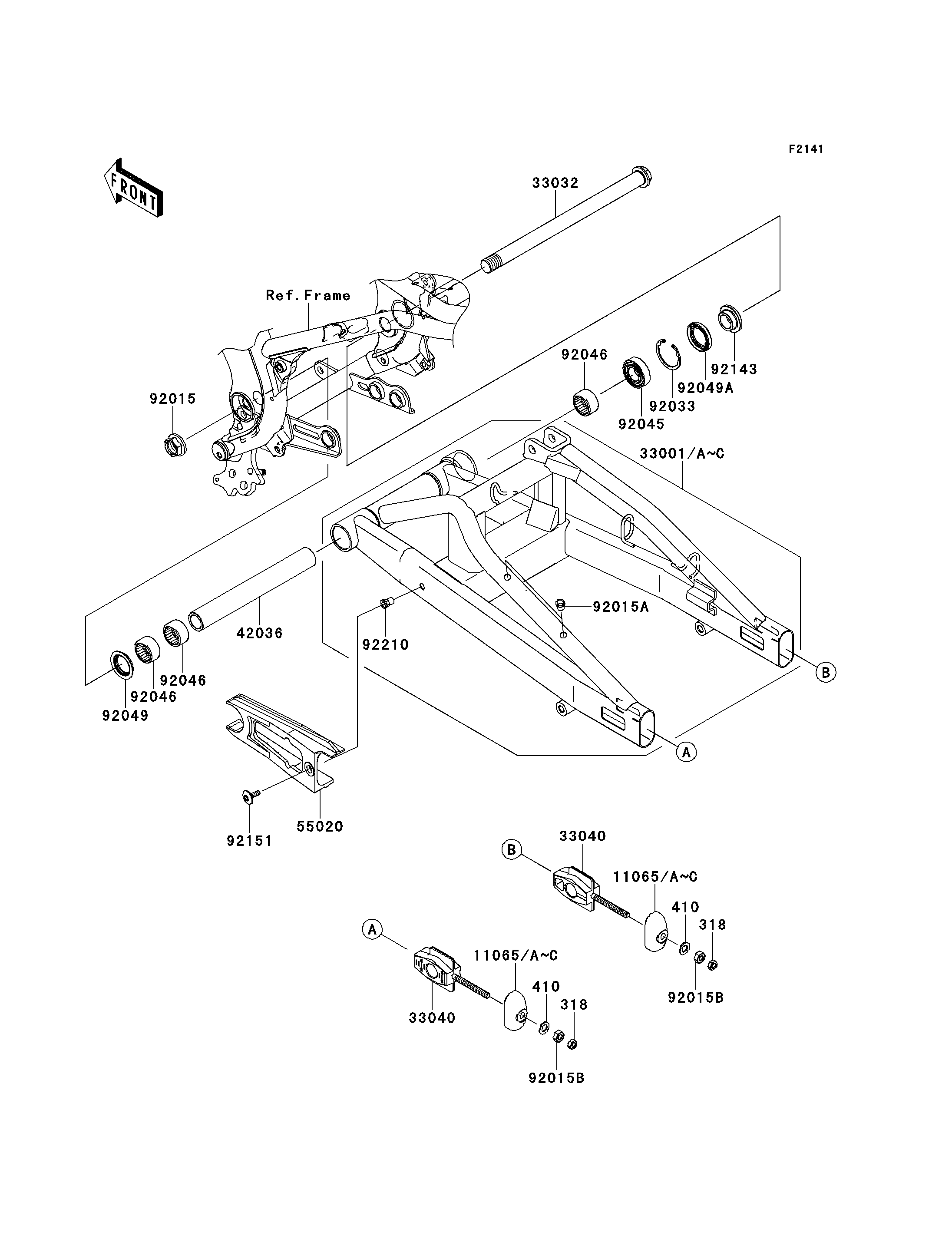

2007 Ninja® 650R - Swingarm

DOWNLOAD PDF
SELECT A NEW PART
318
318
410
410
11065A
11065A
33001A
33032
33040
33040
42036
55020
92015
92015A
92015B
92015B
92033
92045
92046
92046
92046
92049
92049A
92143
92151
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
NUT-HEX-SMALL 318 318C0800 2
WASHER-PLAIN-SMALL,8MM,BLACK 410 410F0800 2
CAP,CHAIN ADJUSTER,P.SILVER 11065A 11065-0121-458 2
ARM-COMP-SWING,P.SILVER 33001A 33001-0081-458 1
SHAFT-SWING ARM 33032 33032-1142 1
ADJUSTER-CHAIN,INNER 33040 33040-0015 2
SLEEVE,SWING ARM,L=219.5 42036 42036-1358 1
GUARD,CHAIN 55020 55020-0192 1
NUT,FLANGED,20MM 92015 92015-1724 1
NUT,POP,6MM 92015A 92015-1759 2
NUT,8MM 92015B 92015-1959 2
RING-SNAP,42MM 92033 92033-1041 1
BEARING-BALL,6004UL11 92045 92045-0017 1
BEARING-NEEDLE,7E-HVS 28X34X17 92046 92046-0008 3
SEAL-OIL 92049 92049-1181 1
SEAL-OIL,TC28426.5 92049A 92049-1185 1
COLLAR,SWING ARM,RH,L=12.5 92143 92143-1727 1
BOLT,SOCKET,6X18 92151 92151-1149 1
NUT,POP,6MM,L=15 92210 92210-1397 1
