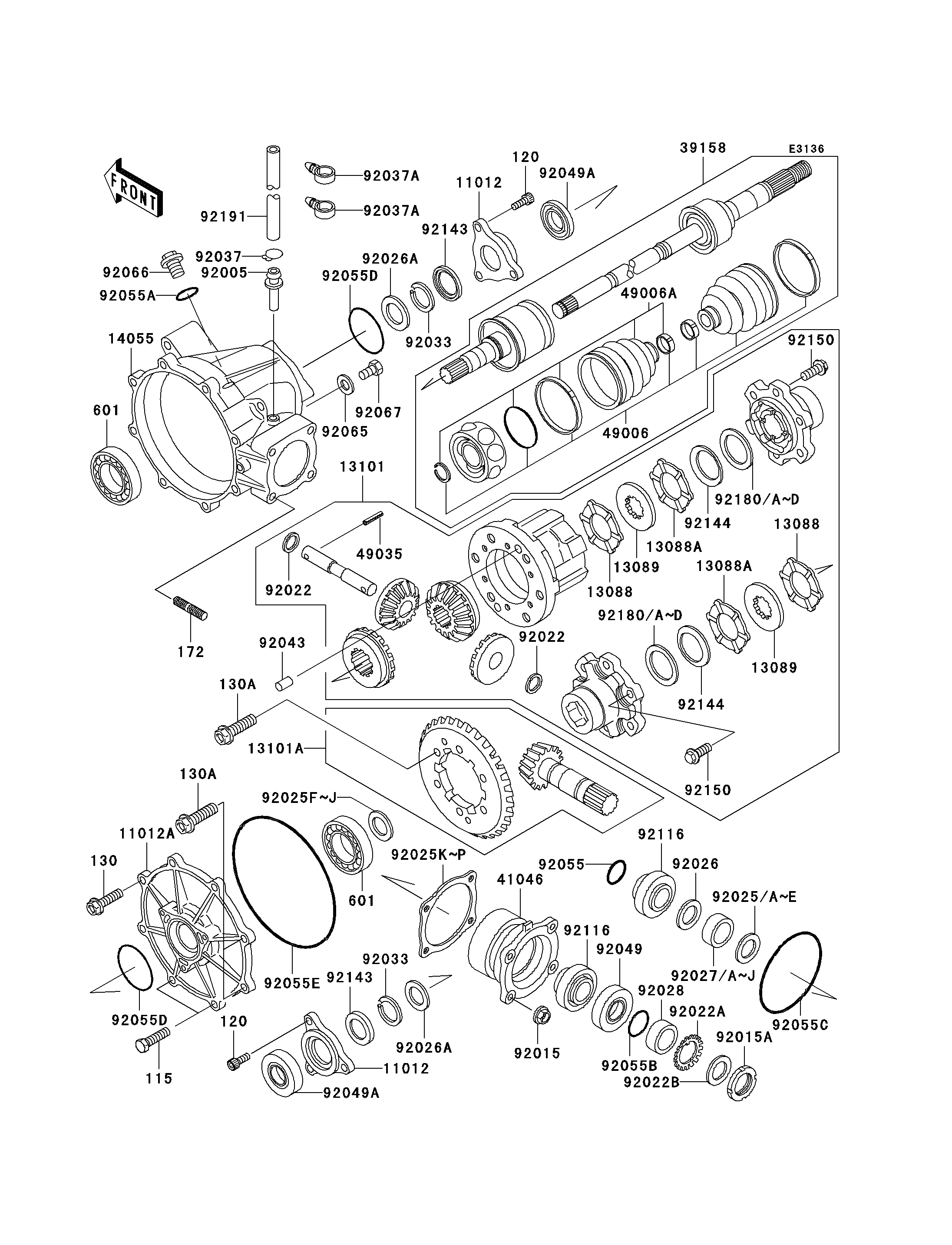

Mule 3010 4x4 Advantage Classic - Drive Shaft-Front

DOWNLOAD PDF
SELECT A NEW PART
11012
11012
11012
11012
11012
11012
11012A
11012A
11012A
13088
13088
13088
13088
13088
13088
13088A
13088A
13088A
13088A
13088A
13088A
13089
13089
13089
13089
13089
13089
13101
13101
13101
13101A
13101A
13101A
14055
14055
14055
39158
39158
39158
41046
41046
41046
49006
49006
49006
49006A
49006A
49006A
49035
49035
49035
92005
92005
92005
92015
92015
92015
92015A
92015A
92015A
92022
92022
92022
92022
92022
92022
92022A
92022A
92022A
92022B
92022B
92022B
92025
92025
92025
92025A
92025A
92025A
92025B
92025B
92025B
92025C
92025C
92025C
92025D
92025D
92025D
92025E
92025E
92025E
92025F
92025F
92025F
92025G
92025G
92025G
92025H
92025H
92025H
92025I
92025I
92025I
92025J
92025J
92025J
92025K
92025K
92025K
92025L
92025L
92025L
92025M
92025M
92025M
92025N
92025N
92025N
92025O
92025O
92025O
92025P
92025P
92025P
92026
92026
92026
92026A
92026A
92026A
92026A
92026A
92026A
92027
92027
92027
92027A
92027A
92027A
115
115
115
120
120
120
120
120
120
130
130
130
130A
130A
130A
130A
130A
130A
172
172
172
92027B
92027B
92027B
92027C
92027C
92027C
92027D
92027D
92027D
92027E
92027E
92027E
92027F
92027F
92027F
92027G
92027G
92027G
92027H
92027H
92027H
92027I
92027I
92027I
92027J
92027J
92027J
92028
92028
92028
92033
92033
92033
92033
92033
92033
92037
92037
92037
92037A
92037A
92037A
92037A
92037A
92037A
92043
92043
92043
92049
92049
92049
92049A
92049A
92049A
92049A
92049A
92049A
92055
92055
92055
92055A
92055A
92055A
92055B
92055B
92055B
92055C
92055C
92055C
92055D
92055D
92055D
92055D
92055D
92055D
92055E
92055E
92055E
92065
92065
92065
92066
92066
92066
92067
92067
92067
92116
92116
92116
92116
92116
92116
92143
92143
92143
92143
92143
92143
92144
92144
92144
92144
92144
92144
92150
92150
92150
92150
92150
92150
92180
92180
92180
92180
92180
92180
92180A
92180A
92180A
92180A
92180A
92180A
92180B
92180B
92180B
92180B
92180B
92180B
92180C
92180C
92180C
92180C
92180C
92180C
92180D
92180D
92180D
92180D
92180D
92180D
92191
92191
92191
601
601
601
601
601
601
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11012 11012-1648 2
CAP,GEAR CASE 11012A 11012-1649 1
PLATE-FRICTION,T=2.8 13088 13088-1075 2
PLATE-FRICTION,T=2.4 13088A 13088-1078 2
PLATE-CLUTCH 13089 13089-1083 2
GEAR-ASSY 13101 13101-1190 1
GEAR-ASSY,BEVEL 13101A 13101-5081 1
CASE-GEAR,FR 14055 14055-1114 1
SHAFT-ASSY-DRIVE,FR 39158 39158-1102 2
HOUSING-BEARING 41046 41046-1089 1
BOOT,JOINT BALL,OUTSIDE 49006 49006-1318 2
BOOT,JOINT BALL,INSIDE 49006A 49006-1320 2
PIN-SPRING 49035 49035-1056 2
FITTING,BREATHER 92005 92005-1127 1
NUT,8MM 92015 92015-1402 4
NUT,25MM 92015A 92015-1768 1
WASHER 92022 92022-1941 2
WASHER,TOOTHED 92022A 92022-1990 1
WASHER,25.3X32X0.5 92022B 92022-225 1
SHIM,25.2X29.8X1.70 92025 92025-1072 AR
SHIM,25.2X29.8X1.72 92025A 92025-1073 AR
SHIM,25.2X29.8X1.74 92025B 92025-1074 AR
SHIM,25.2X29.8X1.76 92025C 92025-1075 AR
SHIM,25.2X29.8X1.78 92025D 92025-1076 AR
SHIM,25.2X29.8X1.80 92025E 92025-1077 AR
SHIM,35.3X46X1.00 92025F 92025-1849 AR
SHIM,35.3X46X0.10 92025G 92025-1850 AR
SHIM,35.3X46X0.15 92025H 92025-1851 AR
SHIM,35.3X46X0.50 92025I 92025-1856 AR
SHIM,35.3X46X0.80 92025J 92025-1857 AR
SHIM,T=0.10 92025K 92025-1919 AR
SHIM,T=0.15 92025L 92025-1920 AR
SHIM,T=0.50 92025M 92025-1921 AR
SHIM,T=0.80 92025N 92025-1922 AR
SHIM,T=1.00 92025O 92025-1923 AR
SHIM,T=1.20 92025P 92025-1924 AR
SPACER 92026 92026-1337 1
SPACER,29X40X1.0 92026A 92026-1338 2
COLLAR,25.2X29.8X10.2 92027 92027-1401 AR
COLLAR,25.2X29.8X10.3 92027A 92027-1402 AR
BOLT-SMALL-UPSET 115 115P0830 2
BOLT-SOCKET,6X16 120 120P0616 6
BOLT-FLANGED,8X30 130 130P0830 4
BOLT-FLANGED 130A 130P1035 8
BOLT-STUD,8X22 172 172G0822 4
COLLAR,25.2X29.8X10.4 92027B 92027-1403 AR
COLLAR,25.2X29.8X10.5 92027C 92027-1404 AR
COLLAR,25.2X29.8X10.6 92027D 92027-1405 AR
COLLAR,25.2X29.8X10.7 92027E 92027-1406 AR
COLLAR,25.2X29.8X10.8 92027F 92027-1407 AR
COLLAR,25.2X29.8X10.9 92027G 92027-1408 AR
COLLAR,25.2X29.8X11.0 92027H 92027-1409 AR
COLLAR,25.2X29.8X11.1 92027I 92027-1410 AR
COLLAR,25.2X29.8X11.2 92027J 92027-1411 AR
BUSHING 92028 92028-1699 1
RING-SNAP,T=1.5 92033 92033-1249 2
CLAMP,TUBE 92037 92037-147 1
CLAMP,HOSE 92037A 92037-1827 2
PIN,8X18 92043 92043-1400 2
SEAL-OIL,TC35X55X8 92049 92049-1298 1
SEAL-OIL,TC30487 92049A 92049-1309 2
RING-O,19.5X1.5 92055 92055-055 1
RING-O,25.7X2.4 92055A 92055-1136 1
RING-O,24.7MM 92055B 92055-1160 1
RING-O,65.2X2.4 92055C 92055-1408 1
RING-O,46X2.5 92055D 92055-1409 2
RING-O,154.1X2.5 92055E 92055-1410 1
GASKET,10.5X16X1 92065 92065-058 1
PLUG 92066 92066-1303 1
PLUG,DRAIN,10X12 92067 92067-001 1
BEARING-ROLLER,4T30205 92116 92116-1003 2
COLLAR 92143 92143-1703 2
SPRING 92144 92144-1671 2
BOLT,8X20 92150 92150-1109 12
SHIM,32X48X0.8 92180 92180-1121 AR
SHIM,32X48X1.0 92180A 92180-1122 AR
SHIM,32X48X1.2 92180B 92180-1123 AR
SHIM,32X48X1.4 92180C 92180-1124 AR
SHIM,32X48X1.6 92180D 92180-1125 AR
TUBE 92191 92191-1628 1
BEARING-BALL,#6007C3 601 601B6007 2
