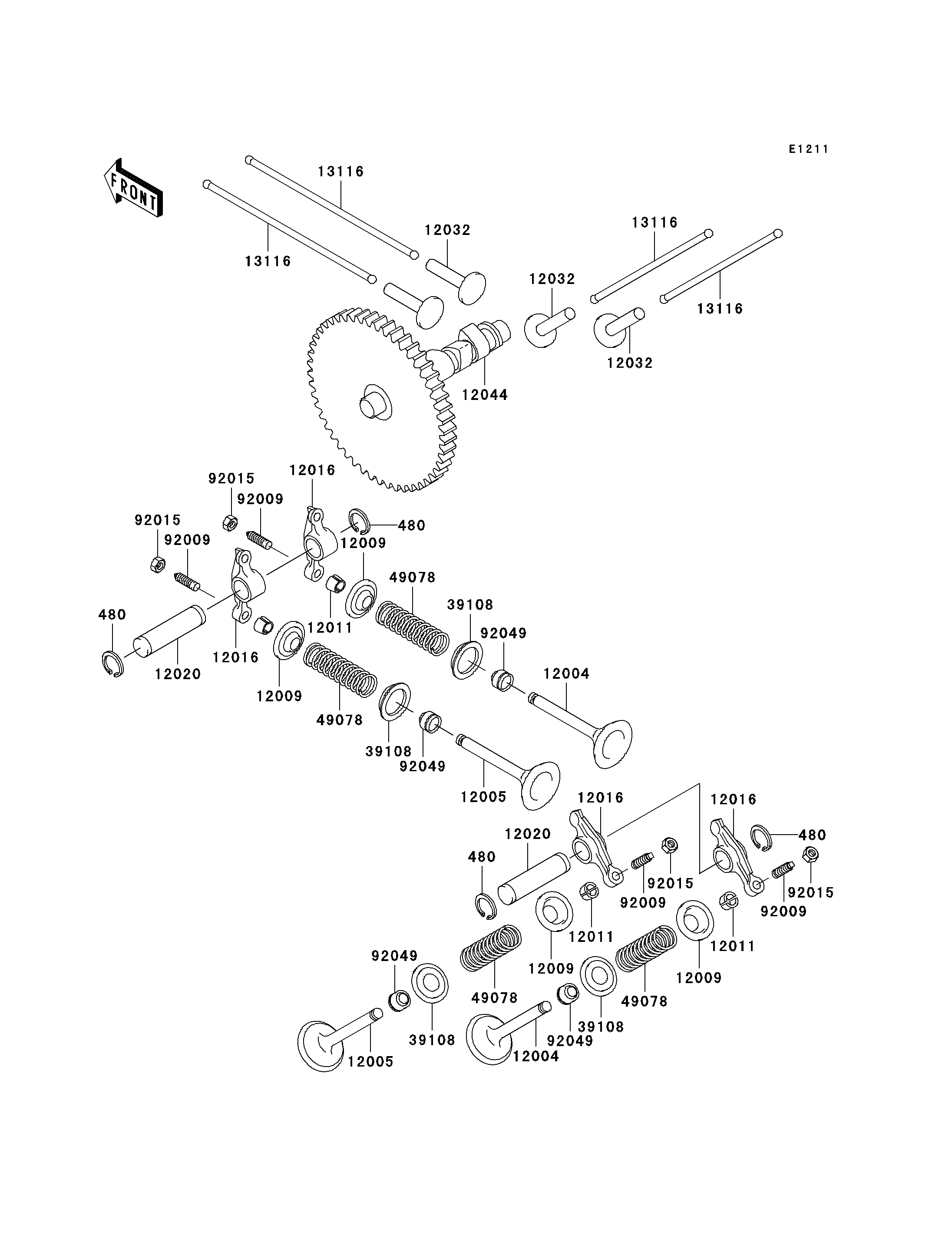

Mule 3010 4x4 Advantage Classic - Valve(s)/Camshaft(s)

DOWNLOAD PDF
SELECT A NEW PART
480
480
480
480
12004
12004
12005
12005
12009
12009
12009
12009
12011
12011
12011
12016
12016
12016
12016
12020
12020
12032
12032
12032
12044
13116
13116
13116
13116
39108
39108
39108
39108
49078
49078
49078
49078
92009
92009
92009
92009
92015
92015
92015
92015
92049
92049
92049
92049
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CIRCLIP-TYPE-C,12MM 480 480J1200 4
VALVE-INTAKE 12004 12004-2104 2
VALVE-EXHAUST 12005 12005-2093 2
RETAINER-VALVE SPRING 12009 12009-2067 4
COLLET 12011 12011-2056 8
ARM-ROCKER 12016 12016-2056 4
SHAFT-ROCKER 12020 12020-2059 2
TAPPET 12032 12032-2064 4
CAMSHAFT-VALVE 12044 12044-2239 1
ROD-PUSH 13116 13116-2057 4
RETAINER-SPRING 39108 39108-2057 4
SPRING-ENGINE VALVE 49078 49078-2082 4
SCREW,VALVE ADJUST 92009 92009-1109 4
NUT,VALVE ADJUST LOCK 92015 92015-1137 4
SEAL-OIL 92049 92049-2109 4
