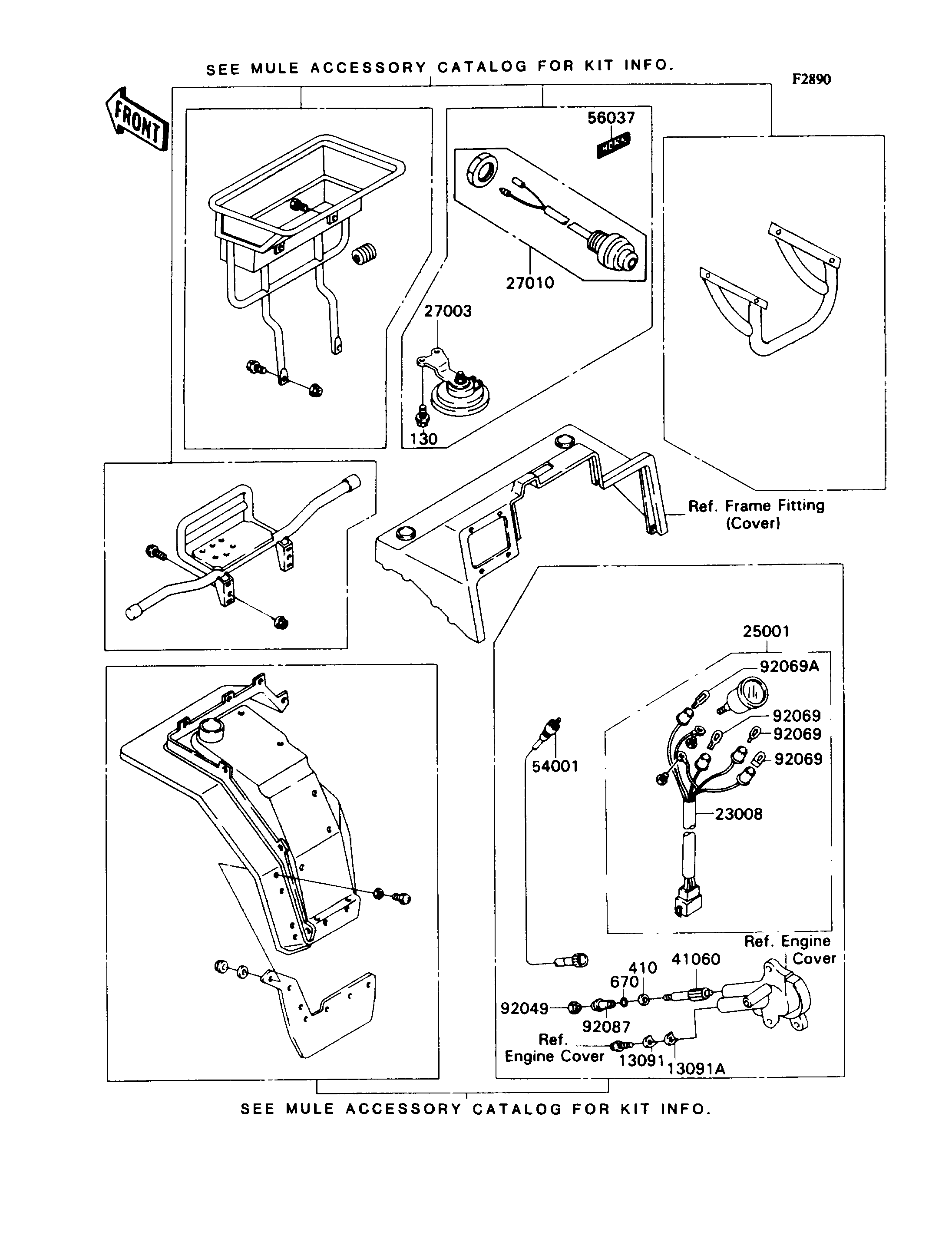

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| HOLDER,TACHOMETER,T=2.3 | 13091 | 13091-1008 | 1 | ||
| HOLDER,TACHOMETER,T=3.2 | 13091A | 13091-1009 | 1 | ||
| SOCKET-ASSY,METER | 23008 | 23008-1355 | 1 | ||
| METER-ASSY,MPH | 25001 | 25001-1706 | 1 | ||
| HORN | 27003 | 27003-1317 | 1 | ||
| SWITCH,HORN | 27010 | 27010-1241 | 1 | ||
| GEAR-METER SCREW | 41060 | 41060-1120 | 1 | ||
| CABLE-SPEEDOMETER | 54001 | 54001-1135 | 1 | ||
| LABEL-SPECIFICATION,HORN | 56037 | 56037-1411 | 1 | ||
| SEAL-OIL | 92049 | 92050-075 | 1 | ||
| BULB,12V 3.4W | 92069 | 92069-1007 | 3 | ||
| BULB,12V 1.7W | 92069A | 92069-1059 | 1 | ||
| BUSHING-METER GEAR,TACHOMETER | 92087 | 92087-010 | 1 | ||
| BOLT-FLANGED,6X10 | 130 | 130B0610 | 2 | ||
| WASHER-PLAIN-SMALL,6MM | 410 | 410B0600 | 1 | ||
| O RING,10MM | 670 | 670D1510 | 1 |
