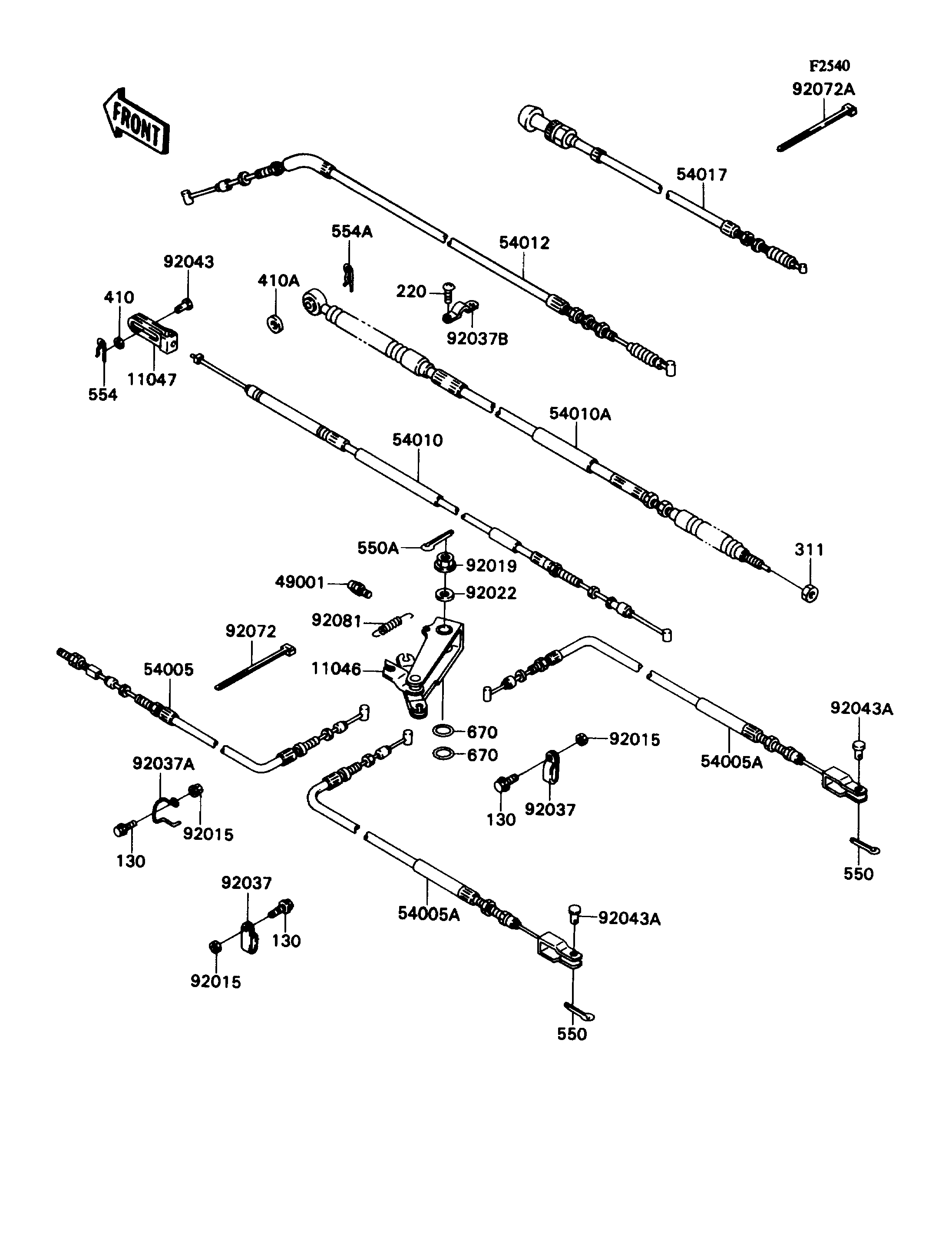

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,EQUALIZER | 11046 | 11046-1674 | 1 | ||
| BRACKET,DIFF LOCK | 11047 | 11047-1043 | 1 | ||
| NIPPLE-GREASE | 49001 | 49001-1051 | 1 | ||
| CABLE-BRAKE,PARKING,FR | 54005 | 54005-1163 | 1 | ||
| CABLE-BRAKE,PARKING,RR | 54005A | 54005-1164 | 2 | ||
| CABLE,DIFF LOCK | 54010 | 54010-1077 | 1 | ||
| CABLE,SHIFT CONTROL | 54010A | 54010-1078 | 1 | ||
| CABLE-THROTTLE | 54012 | 54012-1375 | 1 | ||
| CABLE-STARTER | 54017 | 54017-1117 | 1 | ||
| NUT,LOCK,FLANGED,6MM | 92015 | 92015-1675 | 3 | ||
| NUT,LOCK,10MM | 92019 | 92019-021 | 1 | ||
| WASHER,10.5X26X2.3 | 92022 | 92022-044 | 1 | ||
| CLAMP | 92037 | 92037-1608 | 2 | ||
| CLAMP,HARNESS,RH | 92037A | 92037-1815 | 1 | ||
| CLAMP,CABLE | 92037B | 92037-1933 | 1 | ||
| PIN,6X11 | 92043 | 92043-092 | 1 | ||
| PIN | 92043A | 92043-1039 | 2 | ||
| BAND,L=365 | 92072 | 92072-1197 | 1 | ||
| BAND,L=188 | 92072A | 92072-1239 | 2 | ||
| SPRING,SEAT HOOK | 92081 | 92081-1438 | 1 | ||
| BOLT-FLANGED | 130 | 130D0620 | 3 | ||
| SCREW-PAN-CROS,5X14 | 220 | 220D0514 | 2 | ||
| NUT-HEX,6MM | 311 | 311B0600 | 1 | ||
| WASHER-PLAIN-SMALL,6MM | 410 | 410B0600 | 1 | ||
| W-PLAIN-S,8MM | 410A | 410E0800 | 1 | ||
| PIN-COTTER,2.0X20 | 550 | 550D2020 | 2 | ||
| PIN-COTTER,2.5X18 | 550A | 550D2518 | 1 | ||
| PIN-SNAP | 554 | 554A0600 | 1 | ||
| PIN-SNAP,8MM | 554A | 554A0800 | 1 | ||
| O RING,11MM | 670 | 670B2011 | 2 |
