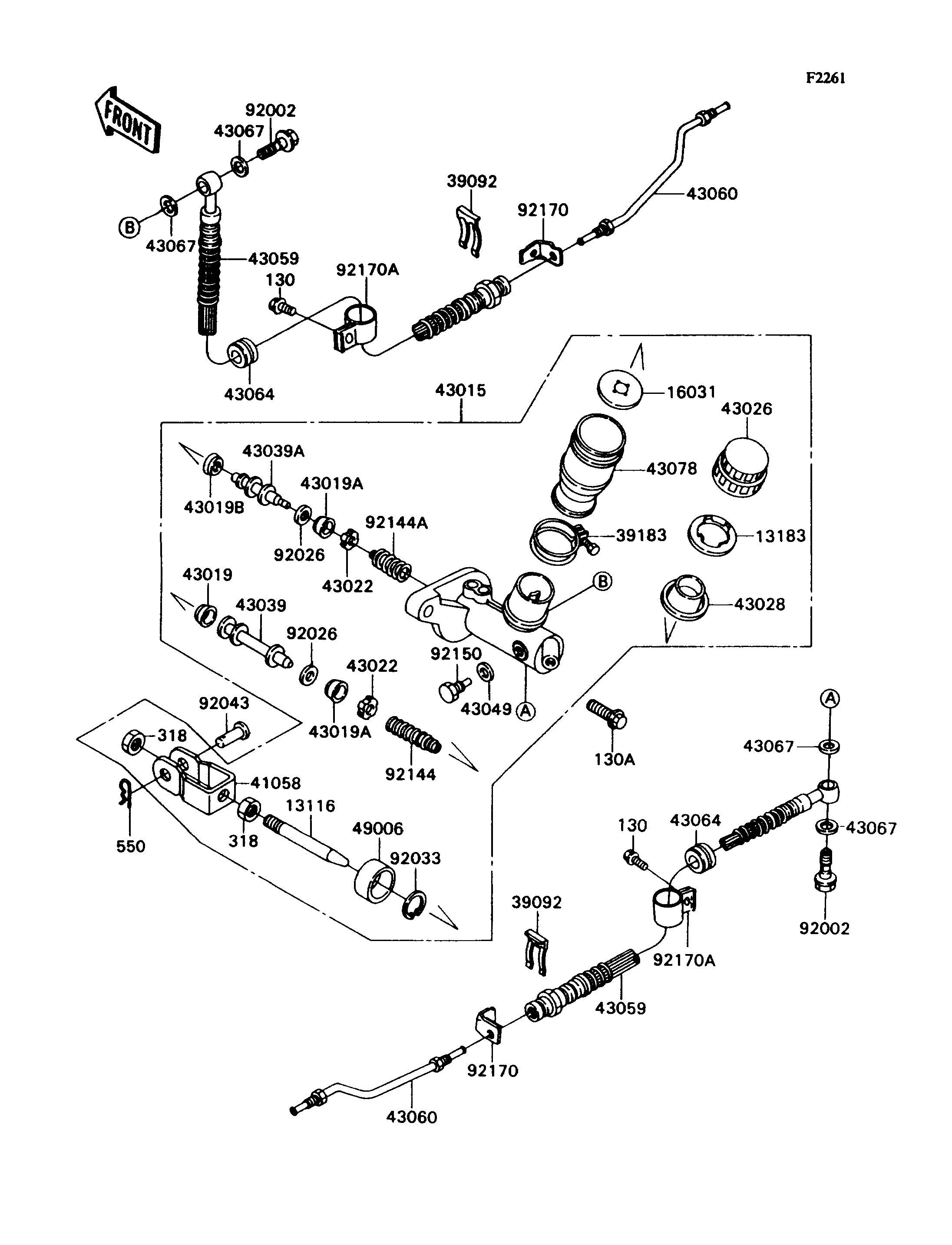

Mule 2020 - Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
ROD-PUSH 13116 13116-1134 1
PLATE 13183 13183-1306 1
FLOAT 16031 16031-1069 1
PIN-HAIR 39092 39092-1054 2
BAND-ASSY 39183 39183-1055 1
RODEND-BRAKE 41058 41058-1057 1
CYLINDER-ASSY-MASTER 43015 43015-1398 1
CUP-BRAKE 43019 43019-1063 1
CUP-BRAKE 43019A 43019-1064 2
CUP-BRAKE 43019B 43019-1065 1
STOPPER-BRAKE 43022 43022-1053 2
CAP-BRAKE 43026 43026-1067 1
DIAPHRAGM 43028 43028-1072 1
PISTON-BRAKE 43039 43039-1064 1
PISTON-BRAKE 43039A 43039-1065 1
PACKING 43049 43049-1065 1
HOSE-BRAKE,FR 43059 43059-1489 2
PIPE-BRAKE,FR 43060 43060-1082 2
GROMMET,HOSE CLAMP 43064 43064-007 2
WASHER,10.5X15X1.5 43067 43067-001 4
RESERVOIR 43078 43078-1093 1
BOOT 49006 49006-1245 1
BOLT,OIL,L=23 92002 92002-1888 2
SPACER 92026 92026-1351 2
RING-SNAP 92033 92033-1255 1
PIN 92043 92043-1039 1
SPRING 92144 92144-1330 1
SPRING 92144A 92144-1331 1
BOLT,STOP 92150 92150-1165 1
CLAMP,BRAKE PIPE 92170 92170-1093 2
CLAMP,HOSE 92170A 92170-1173 2
BOLT-FLANGED 130 130D0610 2
BOLT-FLANGED 130A 130D0820 2
NUT-HEX-SMALL 318 318H0800 2
PIN-COTTER,2.5X18 550 550D2518 1
