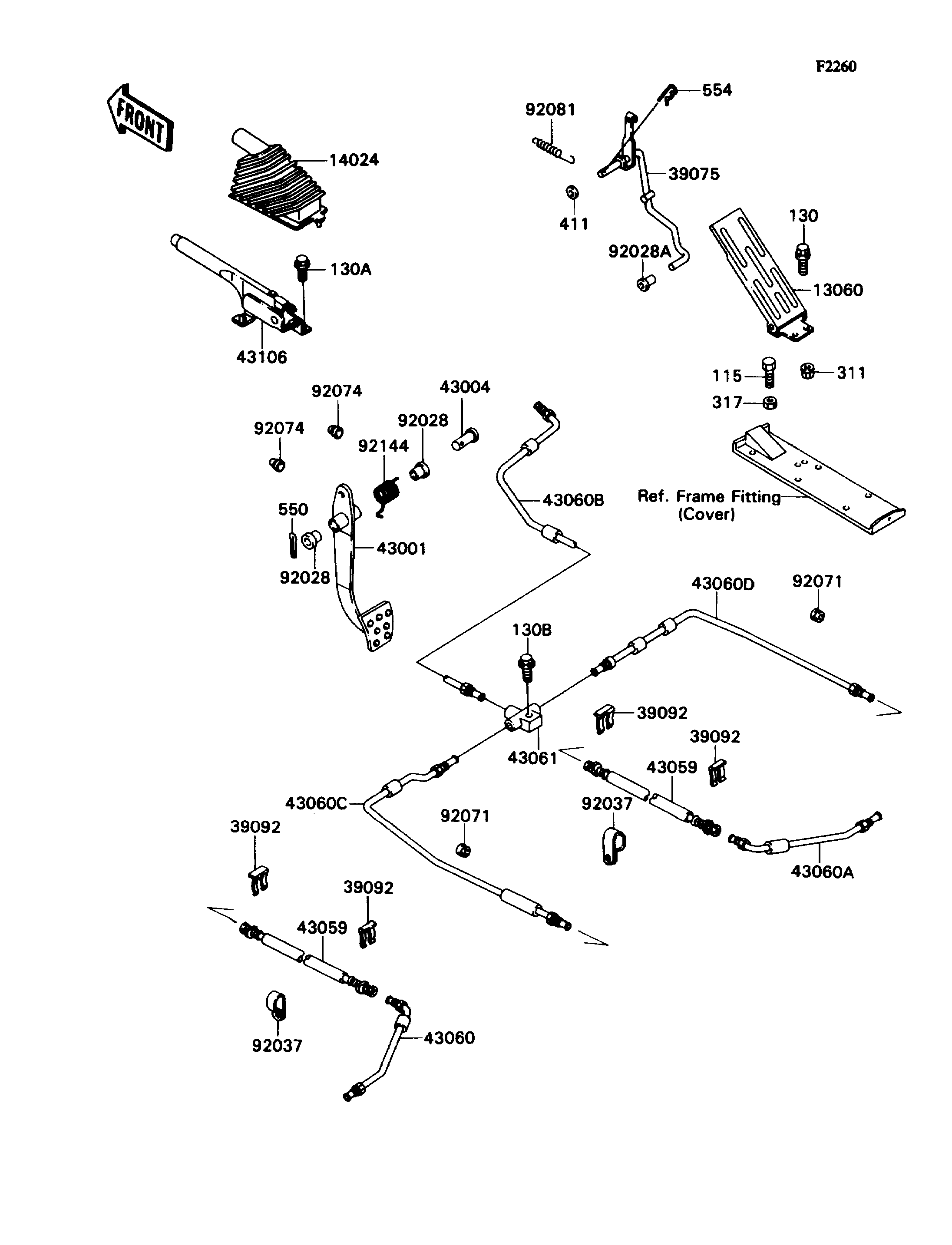

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PEDAL,THROTTLE | 13060 | 13060-1061 | 1 | ||
| COVER,PARKING LEVER | 14024 | 14024-1785 | 1 | ||
| LEVER-THROTTLE | 39075 | 39075-1057 | 1 | ||
| PIN-HAIR | 39092 | 39092-1054 | 4 | ||
| LEVER-BRAKE,PEDAL | 43001 | 43001-1272 | 1 | ||
| SHAFT-BRAKE | 43004 | 43004-1128 | 1 | ||
| HOSE-BRAKE,RR | 43059 | 43059-1490 | 2 | ||
| PIPE-BRAKE,RR,LH | 43060 | 43060-1083 | 1 | ||
| PIPE-BRAKE,RR,RH | 43060A | 43060-1084 | 1 | ||
| PIPE-BRAKE,RR,FR | 43060B | 43060-1085 | 1 | ||
| PIPE-BRAKE,MIDDLE,LH | 43060C | 43060-1086 | 1 | ||
| PIPE-BRAKE,MIDDLE,RH | 43060D | 43060-1087 | 1 | ||
| JOINT-BRAKE | 43061 | 43061-1063 | 1 | ||
| LEVER-ASSY-PARKING BRAKE | 43106 | 43106-1001 | 1 | ||
| BUSHING | 92028 | 92028-1571 | 2 | ||
| BUSHING,THROTTLE LEVER | 92028A | 92028-1601 | 1 | ||
| CLAMP | 92037 | 92037-1608 | 2 | ||
| GROMMET | 92071 | 92071-1152 | 4 | ||
| PLUG,7X2 | 92074 | 92074-028 | 2 | ||
| SPRING,BRAKE LEVER RETURN | 92081 | 92081-1922 | 1 | ||
| SPRING | 92144 | 92144-1536 | 1 | ||
| BOLT-SMALL-UPSET,8X40 | 115 | 115D0840 | 1 | ||
| BOLT-FLANGED,6X12 | 130 | 130C0612 | 2 | ||
| BOLT-FLANGED | 130A | 130D0816 | 2 | ||
| BOLT-FLANGED,8X30 | 130B | 130D0830 | 1 | ||
| NUT-HEX,6MM,BLACK | 311 | 311C0600 | 2 | ||
| NUT-HEX-SMALL,8MM | 317 | 317H0800 | 1 | ||
| WASHER-PLAIN,10MM | 411 | 411E1000 | 1 | ||
| PIN-COTTER,2.5X25 | 550 | 550D2525 | 1 | ||
| PIN-SNAP,10MM | 554 | 554A1000 | 1 |
