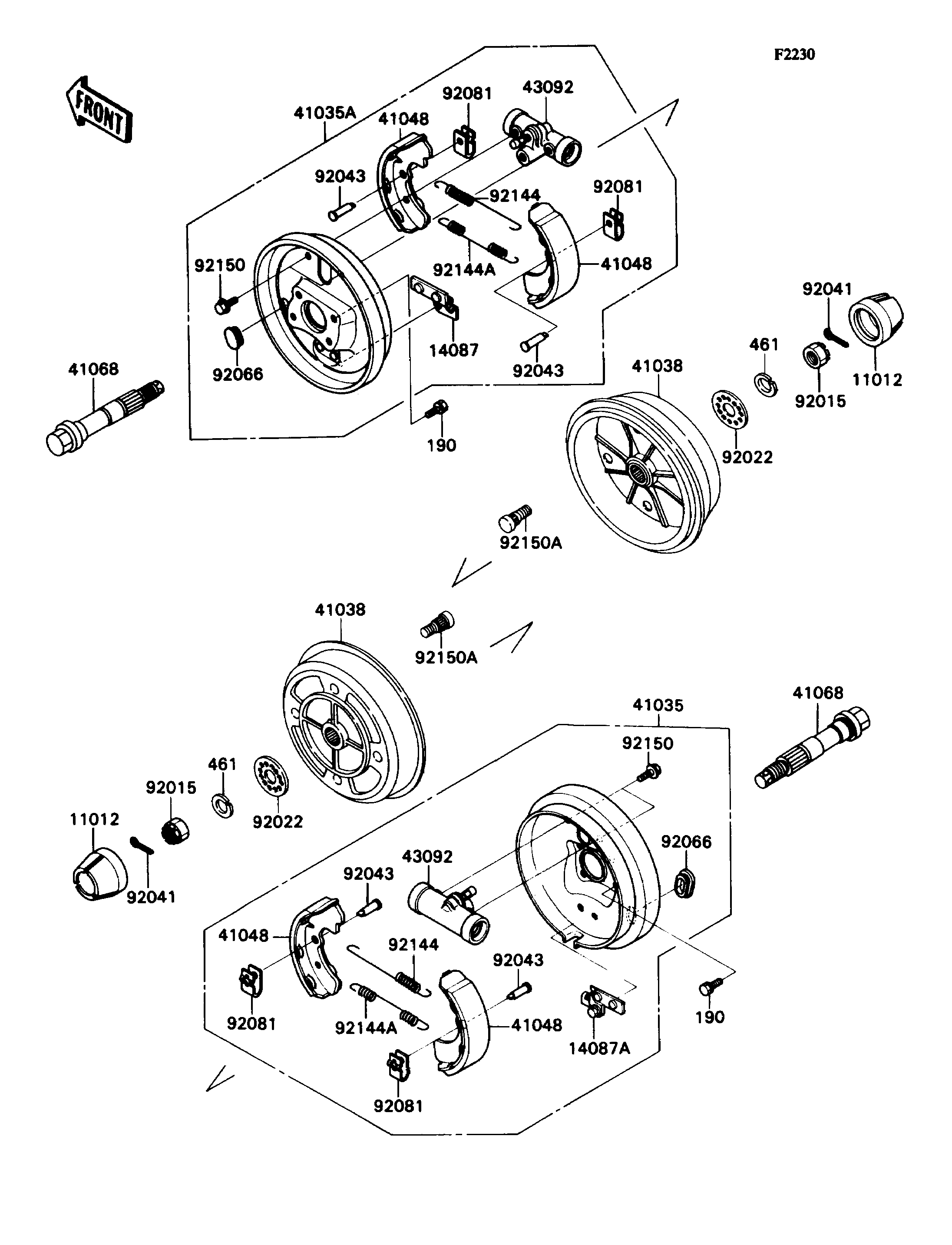

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP,WHEEL | 11012 | 11012-1519 | 2 | ||
| RETAINER-ASSY,RH | 14087 | 14087-1001 | 1 | ||
| RETAINER-ASSY,LH | 14087A | 14087-1002 | 1 | ||
| PANEL-ASSY-BRAKE,FR,LH | 41035 | 41035-1263 | 1 | ||
| PANEL-ASSY-BRAKE,FR,RH | 41035A | 41035-1264 | 1 | ||
| DRUM,FRONT BRAKE | 41038 | 41038-1219 | 2 | ||
| SHOE-BRAKE | 41048 | 41048-1077 | 4 | ||
| AXLE,FR | 41068 | 41068-1296 | 2 | ||
| CYLINDER,FRONT BRAKE PANEL | 43092 | 43092-1054 | 2 | ||
| NUT,CASTLE,18MM | 92015 | 92015-1441 | 2 | ||
| WASHER,T=4.5 | 92022 | 92022-1794 | 2 | ||
| COTTER,4.0X35 | 92041 | 92041-1053 | 2 | ||
| PIN,TENSION | 92043 | 92043-1398 | 4 | ||
| PLUG | 92066 | 92066-1309 | 2 | ||
| SPRING,SHOE CLAMP | 92081 | 92081-1904 | 4 | ||
| SPRING,BRAKE | 92144 | 92144-1300 | 2 | ||
| SPRING,BRAKE | 92144A | 92144-1301 | 2 | ||
| BOLT,FLANGED,6X12 | 92150 | 92150-1166 | 4 | ||
| BOLT | 92150A | 92150-1366 | 8 | ||
| BOLT-UPSET-WS,10X16 | 190 | 190H1016 | 8 | ||
| WASHER-SPRING,18MM | 461 | 461F1800 | 2 |
| CAP,WHEEL | |
| REF # | 11012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RETAINER-ASSY,RH | |
| REF # | 14087 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RETAINER-ASSY,LH | |
| REF # | 14087A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PANEL-ASSY-BRAKE,FR,LH | |
| REF # | 41035 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PANEL-ASSY-BRAKE,FR,RH | |
| REF # | 41035A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DRUM,FRONT BRAKE | |
| REF # | 41038 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SHOE-BRAKE | |
| REF # | 41048 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| AXLE,FR | |
| REF # | 41068 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CYLINDER,FRONT BRAKE PANEL | |
| REF # | 43092 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,CASTLE,18MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,T=4.5 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COTTER,4.0X35 | |
| REF # | 92041 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PIN,TENSION | |
| REF # | 92043 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| PLUG | |
| REF # | 92066 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SPRING,SHOE CLAMP | |
| REF # | 92081 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SPRING,BRAKE | |
| REF # | 92144 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SPRING,BRAKE | |
| REF # | 92144A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,6X12 | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT | |
| REF # | 92150A |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET-WS,10X16 | |
| REF # | 190 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| WASHER-SPRING,18MM | |
| REF # | 461 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
