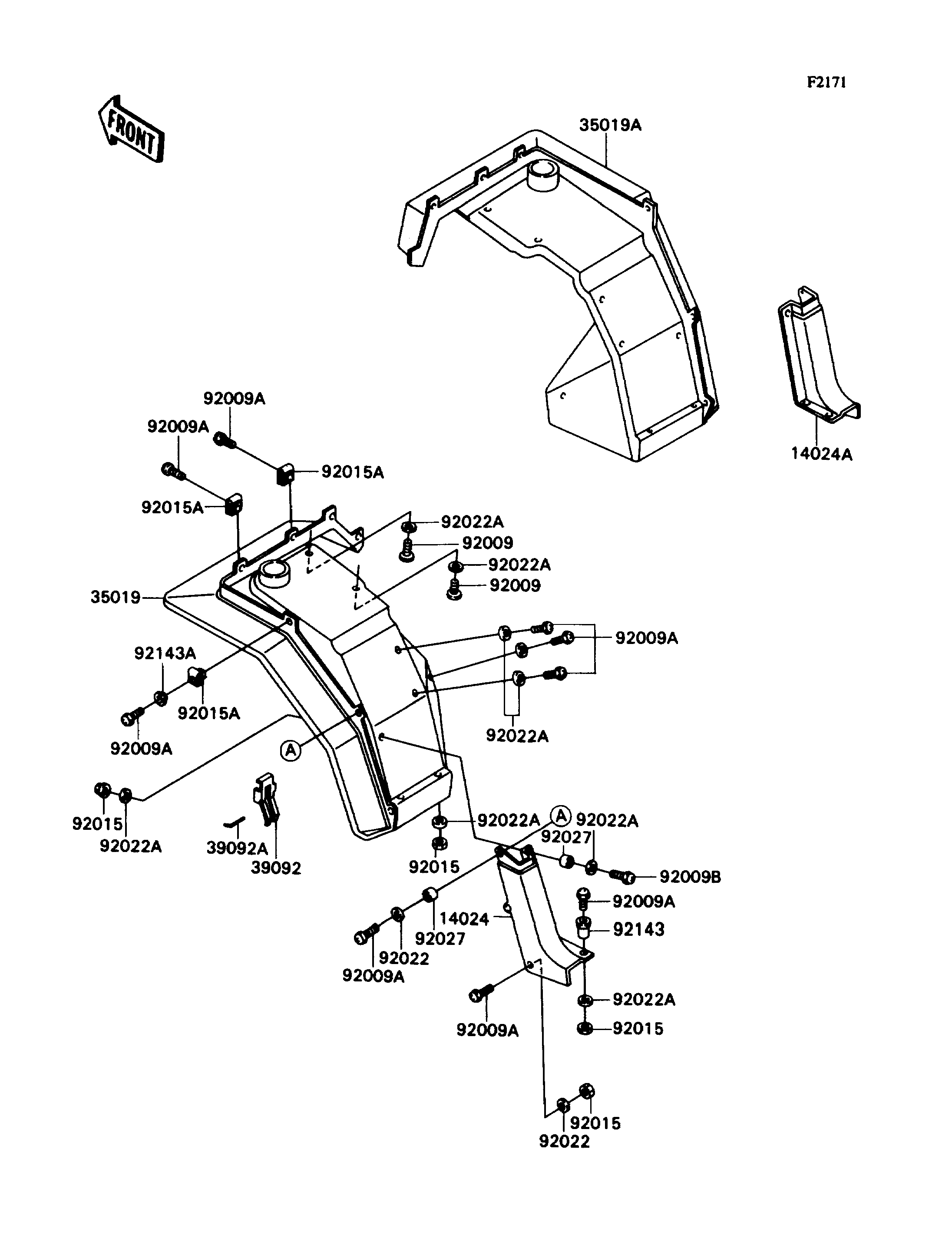

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,LH | 14024 | 14024-1793 | 1 | ||
| COVER,RH | 14024A | 14024-1794 | 1 | ||
| FLAP,FR,LH | 35019 | 35019-1246 | 1 | ||
| FLAP,FR,RH | 35019A | 35019-1247 | 1 | ||
| PIN-HAIR | 39092 | 39092-1055 | 14 | ||
| PIN-HAIR | 39092A | 39092-1056 | 14 | ||
| SCREW | 92009 | 92009-1166 | 4 | ||
| SCREW,6X22,BLACK | 92009A | 92009-1256 | 22 | ||
| SCREW,6X25 | 92009B | 92009-1465 | 2 | ||
| NUT,LOCK,FLANGED,6MM | 92015 | 92015-1675 | 16 | ||
| NUT,CLAMP,6MM | 92015A | 92015-1678 | 10 | ||
| WASHER,7X16X1.2 | 92022 | 92022-1344 | 4 | ||
| WASHER,6.5X20X1.6,BLACK | 92022A | 92022-1346 | 26 | ||
| COLLAR,6.5X8.5X7.5 | 92027 | 92027-165 | 4 | ||
| COLLAR | 92143 | 92143-1057 | 4 | ||
| COLLAR,L=5 | 92143A | 92143-1087 | 6 |
| COVER,LH | |
| REF # | 14024 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,RH | |
| REF # | 14024A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FLAP,FR,LH | |
| REF # | 35019 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FLAP,FR,RH | |
| REF # | 35019A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN-HAIR | |
| REF # | 39092 |
|---|---|
| PART NUMBER | |
| QUANTITY | 14 |
| DESTINATION | |
| REMARKS | |
| PIN-HAIR | |
| REF # | 39092A |
|---|---|
| PART NUMBER | |
| QUANTITY | 14 |
| DESTINATION | |
| REMARKS | |
| SCREW | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SCREW,6X22,BLACK | |
| REF # | 92009A |
|---|---|
| PART NUMBER | |
| QUANTITY | 22 |
| DESTINATION | |
| REMARKS | |
| SCREW,6X25 | |
| REF # | 92009B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,LOCK,FLANGED,6MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 16 |
| DESTINATION | |
| REMARKS | |
| NUT,CLAMP,6MM | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 10 |
| DESTINATION | |
| REMARKS | |
| WASHER,7X16X1.2 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER,6.5X20X1.6,BLACK | |
| REF # | 92022A |
|---|---|
| PART NUMBER | |
| QUANTITY | 26 |
| DESTINATION | |
| REMARKS | |
| COLLAR,6.5X8.5X7.5 | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92143 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| COLLAR,L=5 | |
| REF # | 92143A |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
