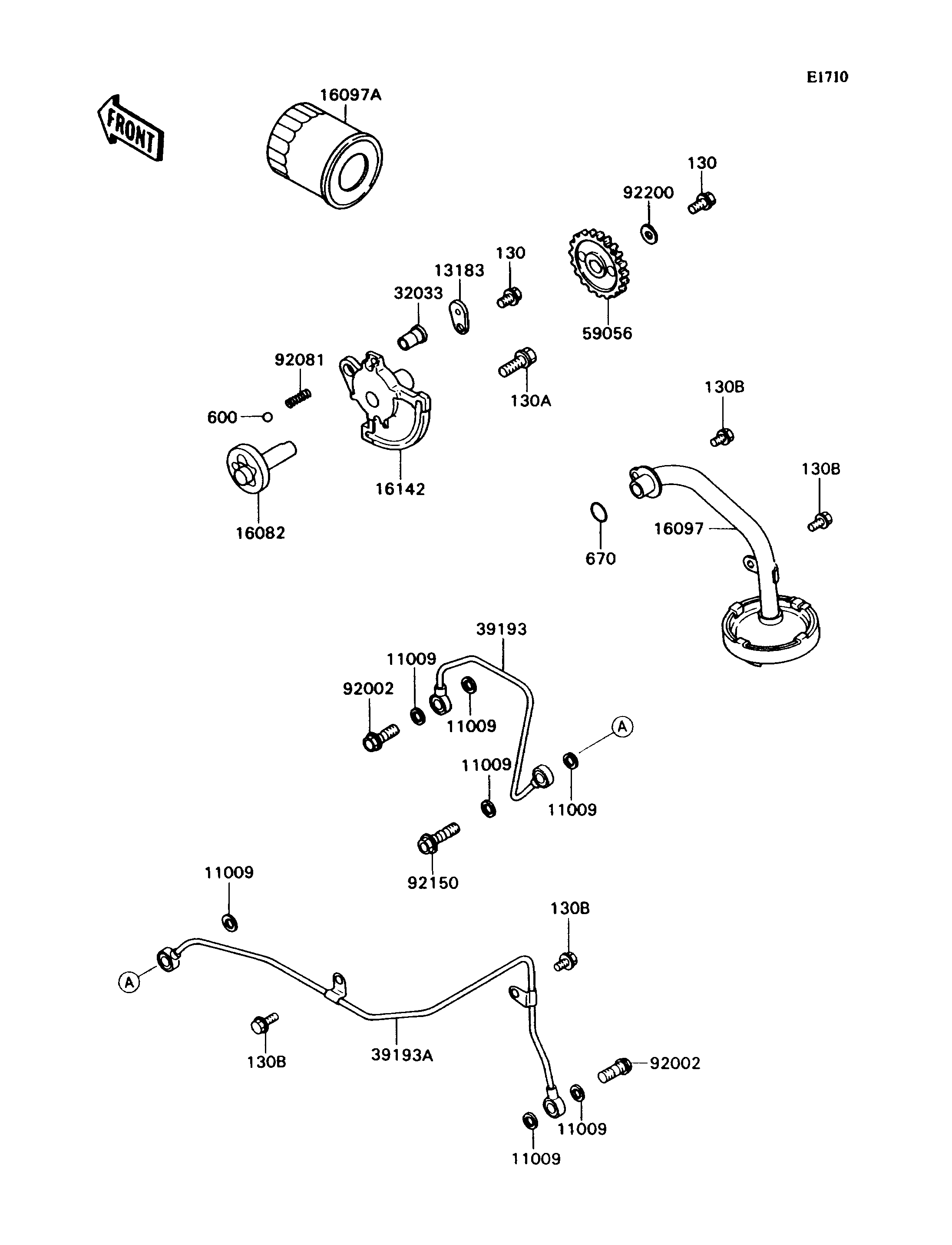

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,10X14.5X1.5 | 11009 | 11009-1105 | 7 | ||
| PLATE | 13183 | 13183-1396 | 1 | ||
| PUMP-ASSY-OIL | 16082 | 16082-2058 | 1 | ||
| FILTER-ASSY-OIL | 16097 | 16097-1062 | 1 | ||
| FILTER-ASSY-OIL | 16097A | 16097-1064 | 1 | ||
| COVER-PUMP | 16142 | 16142-2051 | 1 | ||
| PIPE,RELIEF VALVE | 32033 | 32033-2126 | 1 | ||
| PIPE-OIL,HEAD | 39193 | 39193-1003 | 1 | ||
| PIPE-OIL,CRANKCASE | 39193A | 39193-1004 | 1 | ||
| GEAR-HELICAL,27T | 59056 | 59056-2090 | 1 | ||
| BOLT,OIL,L=23 | 92002 | 92002-1888 | 2 | ||
| SPRING,RELIEF VALVE | 92081 | 92081-2305 | 1 | ||
| BOLT | 92150 | 92150-1136 | 1 | ||
| WASHER,6.5X18X2.0 | 92200 | 92200-2035 | 1 | ||
| BOLT-FLANGED,6X10 | 130 | 130B0610 | 2 | ||
| BOLT-FLANGED,8X25 | 130A | 130B0825 | 2 | ||
| BOLT-FLANGED | 130B | 130D0612 | 4 | ||
| BALL-STEEL,5/16" | 600 | 600A1000 | 1 | ||
| O RING | 670 | 670D2018 | 1 |
