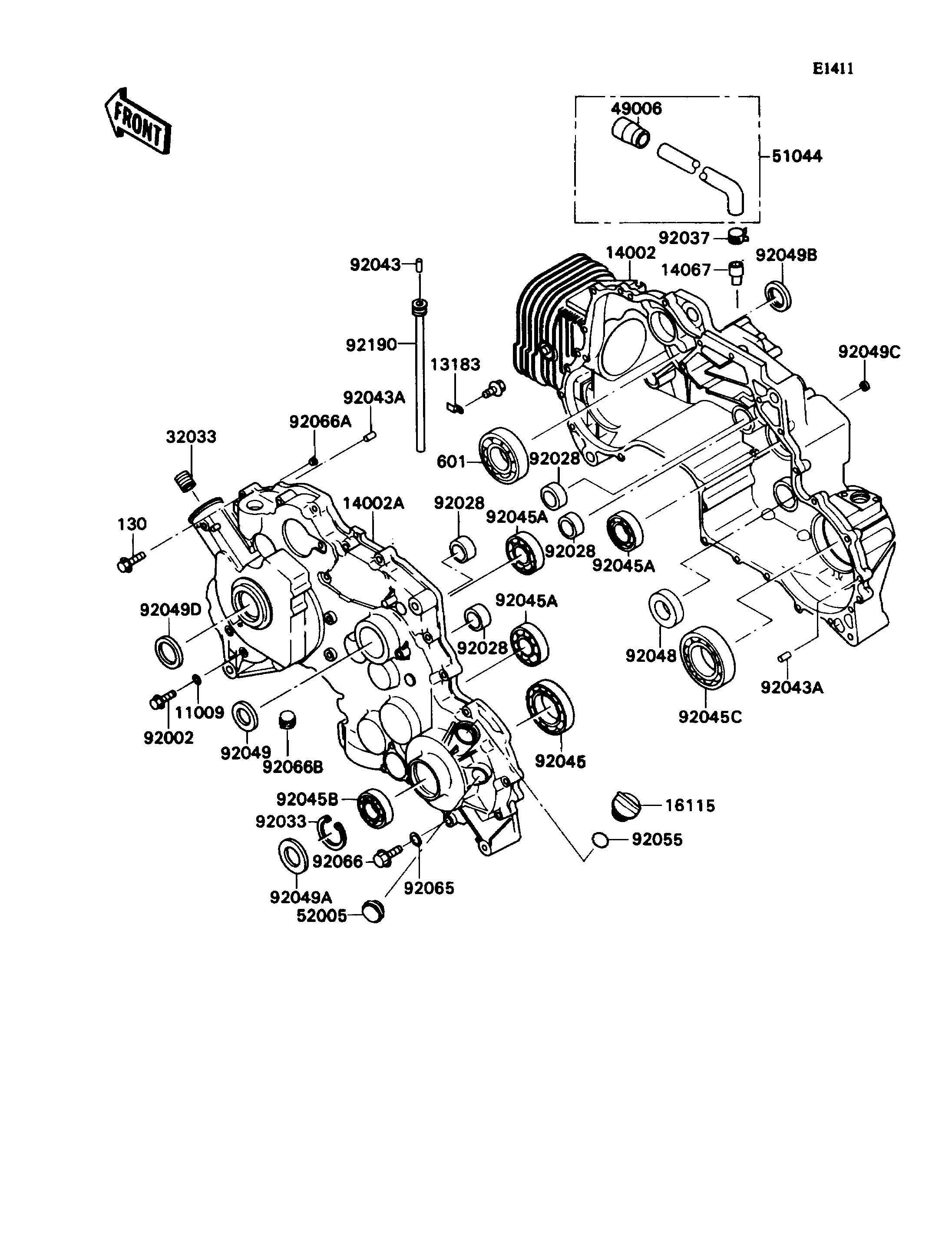

Mule 2020 - Crankcase

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,OIL PIPE,8.2X14X1.0 11009 11009-1344 1
PLATE 13183 13183-1096 1
CRANKCASE,RH 14002 14002-1515 1
CRANKCASE,LH 14002A 14002-1516 1
FITTING,BREATHER 14067 14067-006 1
CAP-OIL FILLER 16115 16115-1009 1
PIPE 32033 32033-1535 1
BOOT 49006 49006-1199 1
TUBE-ASSY 51044 51044-1118 1
GAUGE,OIL LEVEL 52005 52005-1009 1
BOLT,FLANGED,8X16 92002 92002-1200 1
BUSHING,26X35X14 92028 92028-131 4
RING-SNAP,55MM 92033 92033-1274 1
CLAMP 92037 92037-1860 1
PIN,6.2X8X14 92043 92043-1263 1
PIN,8.2X10X14 92043A 92043-1264 2
BEARING-BALL 92045 92045-1162 1
BEARING-BALL,62/28 92045A 92045-1207 3
BEARING-BALL,6006 92045B 92045-1208 1
BEARING-BALL 92045C 92045-1213 1
RACE 92048 92048-1081 1
SEAL-OIL,TC28X47X7 92049 92049-1297 1
SEAL-OIL,TC35X55X8 92049A 92049-1298 1
SEAL-OIL,ISD-32X45X8 92049B 92049-2096 1
SEAL-OIL,VC-6X10X2.5 92049C 92049-2097 1
SEAL-OIL,SGL2-35X48X8AE 92049D 92049-2104 1
RING-O,31.5X2.6 92055 92055-049 1
GASKET,12X22X2,DRAIN PLUG 92065 92065-097 1
PLUG,OIL DRAIN,12X15 92066 92066-1174 1
PLUG,OIL LINE,1/8X7 92066A 92066-1227 1
PLUG 92066B 92066-1262 1
TUBE,BREATHER 92190 92190-1011 1
BOLT-FLANGED 130 130H0840 26
BEARING-BALL 601 601A6307 1
