Parts Diagrams |

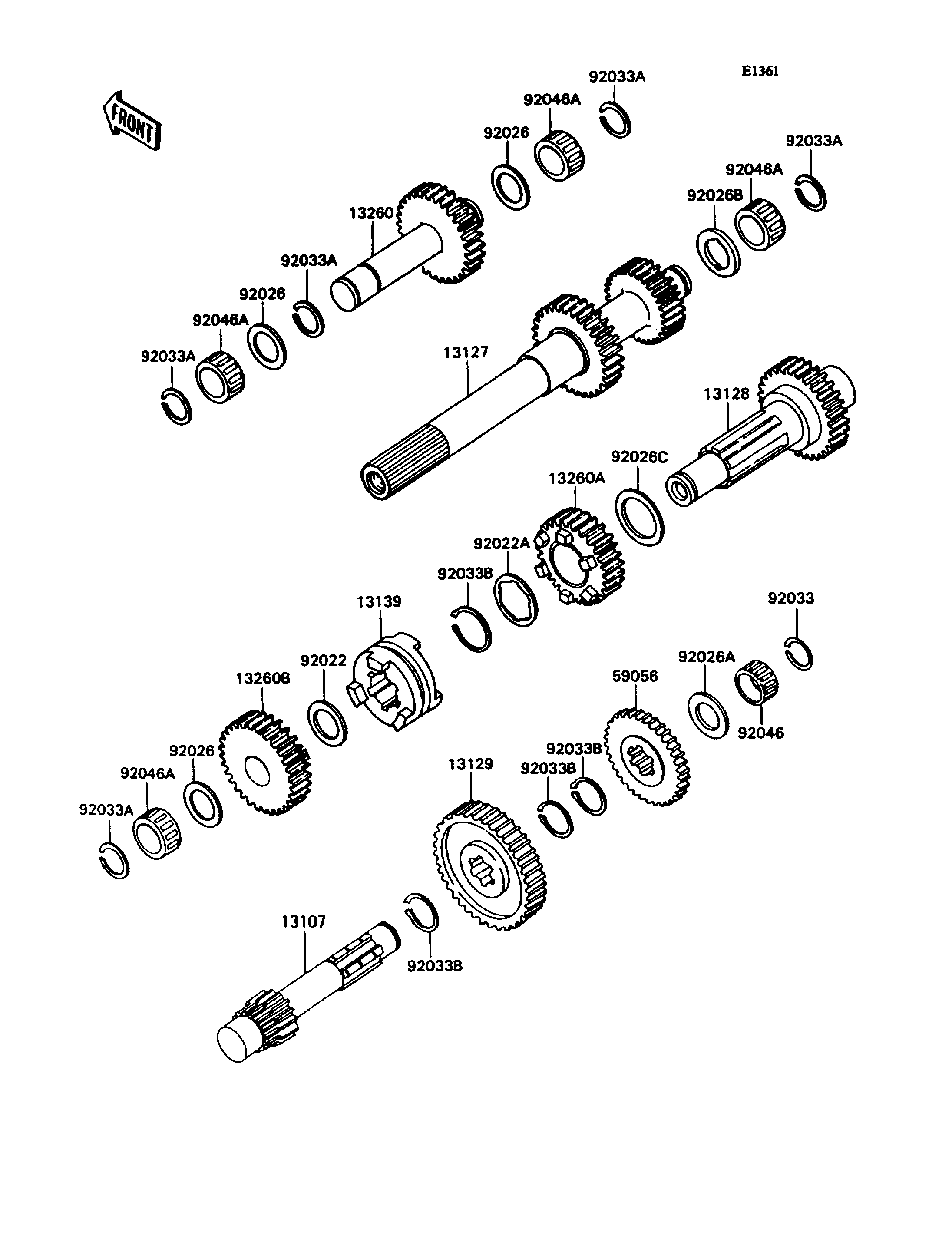

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SHAFT | 13107 | 13107-1257 | 1 | ||
| SHAFT-TRANSMISSION INPUT | 13127 | 13127-1186 | 1 | ||
| SHAFT-TRANSMISSION OUTPUT | 13128 | 13128-1169 | 1 | ||
| GEAR,REDUCTION,36T | 13129 | 13129-1896 | 1 | ||
| SHIFTER | 13139 | 13139-1064 | 1 | ||
| GEAR,FORWARD IDLER,23T | 13260 | 13260-1066 | 1 | ||
| GEAR,OUTPUT FORWARD,22T | 13260A | 13260-1067 | 1 | ||
| GEAR,OUTPUT REVERSE,23T | 13260B | 13260-1068 | 1 | ||
| GEAR-HELICAL,32T | 59056 | 59056-1052 | 1 | ||
| WASHER,20.5X30X1,STEEL | 92022 | 92022-112 | 1 | ||
| WASHER,TOOTHED,28.3X33.5X1 | 92022A | 92022-1139 | 1 | ||
| SPACER,20.3X30X2.0 | 92026 | 92026-1022 | 3 | ||
| SPACER,22X35.5X2.1 | 92026A | 92026-1224 | 1 | ||
| SPACER,20X32X3.6 | 92026B | 92026-1298 | 1 | ||
| SPACER,28X38X2 | 92026C | 92026-1299 | 1 | ||
| RING-SNAP,20X25.5X1.2 | 92033 | 92033-025 | 1 | ||
| RING-SNAP,18MM | 92033A | 92033-029 | 5 | ||
| RING-SNAP,25.9MM | 92033B | 92033-1037 | 4 | ||
| BEARING-NEEDLE,FWF-223014 | 92046 | 92046-031 | 1 | ||
| BEARING-NEEDLE,KMJ20X26X13.8X1 | 92046A | 92046-1185 | 4 |
| SHAFT | |
| REF # | 13107 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHAFT-TRANSMISSION INPUT | |
| REF # | 13127 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHAFT-TRANSMISSION OUTPUT | |
| REF # | 13128 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,REDUCTION,36T | |
| REF # | 13129 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHIFTER | |
| REF # | 13139 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,FORWARD IDLER,23T | |
| REF # | 13260 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,OUTPUT FORWARD,22T | |
| REF # | 13260A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,OUTPUT REVERSE,23T | |
| REF # | 13260B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR-HELICAL,32T | |
| REF # | 59056 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,20.5X30X1,STEEL | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,TOOTHED,28.3X33.5X1 | |
| REF # | 92022A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPACER,20.3X30X2.0 | |
| REF # | 92026 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| SPACER,22X35.5X2.1 | |
| REF # | 92026A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPACER,20X32X3.6 | |
| REF # | 92026B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPACER,28X38X2 | |
| REF # | 92026C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-SNAP,20X25.5X1.2 | |
| REF # | 92033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-SNAP,18MM | |
| REF # | 92033A |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| RING-SNAP,25.9MM | |
| REF # | 92033B |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BEARING-NEEDLE,FWF-223014 | |
| REF # | 92046 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-NEEDLE,KMJ20X26X13.8X1 | |
| REF # | 92046A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
