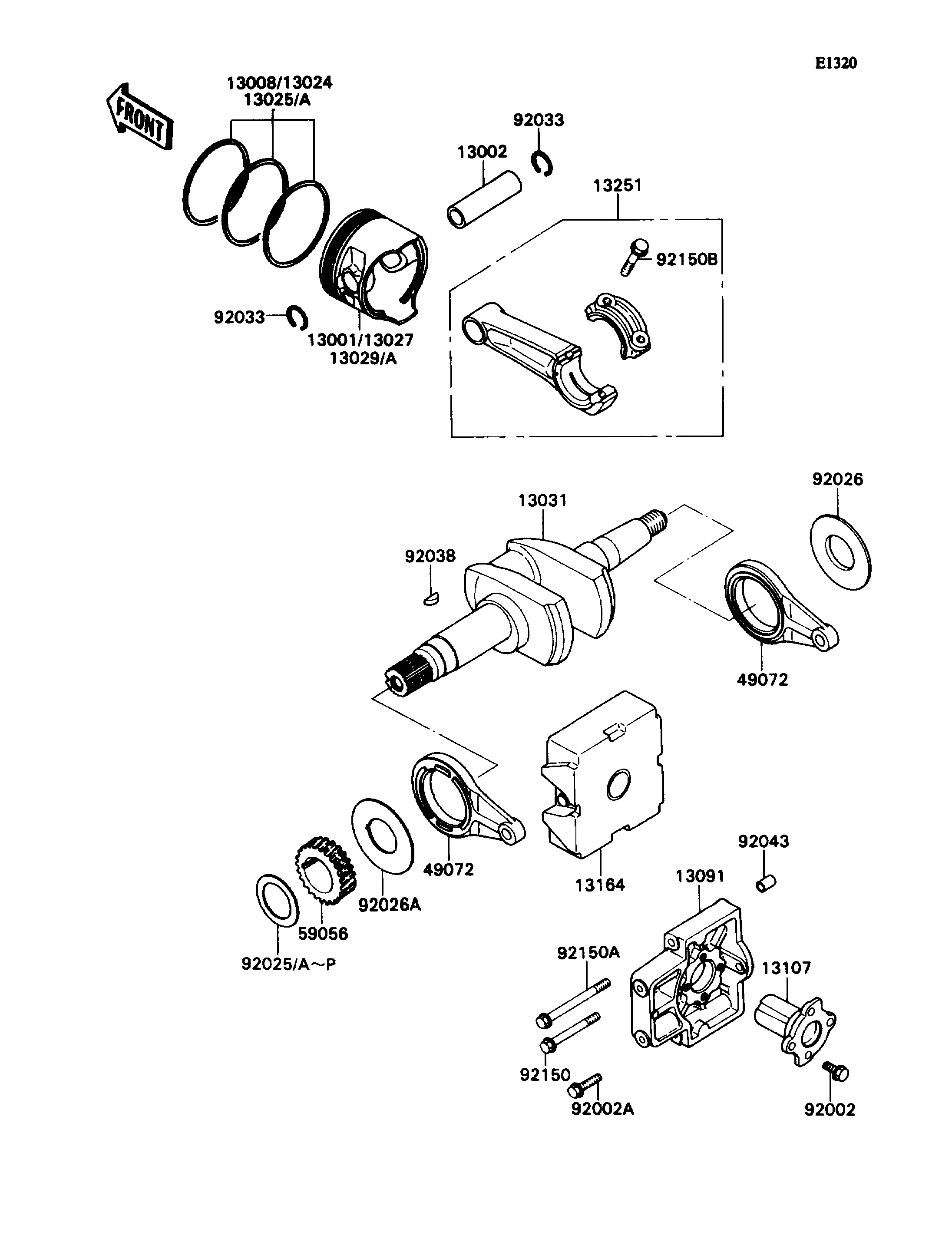

Mule 2020 - Crankshaft/Piston

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PISTON-ENGINE,STD 13001 13001-1304 1
PIN-PISTON 13002 13002-2070 1
RING-SET-PISTON,STD 13008 13008-1117 1
RING-SET-PISTON LL,O/S,0.75 13024 13024-1086 1
RING-SET-PISTON L,O/S,0.25 13025 13025-1103 1
RING-SET-PISTON L,O/S,0.50 13025A 13025-1104 1
PISTON-ENGINE LL,O/S,0.75 13027 13027-2054 1
PISTON-ENGINE L,O/S,0.25 13029 13029-2078 1
PISTON-ENGINE L,O/S,0.50 13029A 13029-2079 1
CRANKSHAFT-COMP 13031 13031-1296 1
HOLDER 13091 13091-1616 1
SHAFT 13107 13107-2232 1
BALANCER-COMP 13164 13164-1004 1
ROD-ASSY-CONNECTING 13251 13251-6010 1
ROD-COMP-CONNECTING 49072 49072-1052 2
GEAR-HELICAL,26T 59056 59056-1051 1
BOLT,6X16 92002 92002-1099 4
BOLT,6X25 92002A 92002-1582 1
SHIM,T=1.18 92025 92025-2183 AR
SHIM,T=1.25 92025A 92025-2184 AR
SHIM,T=1.32 92025B 92025-2185 AR
SHIM,T=1.39 92025C 92025-2186 AR
SHIM,T=1.46 92025D 92025-2187 AR
SHIM,T=1.53 92025E 92025-2188 AR
SHIM,T=1.60 92025F 92025-2189 AR
SHIM,T=1.67 92025G 92025-2190 AR
SHIM,T=1.74 92025H 92025-2191 AR
SHIM,T=1.215 92025I 92025-2197 AR
SHIM,T=1.285 92025J 92025-2198 AR
SHIM,T=1.355 92025K 92025-2199 AR
SHIM,T=1.425 92025L 92025-2200 AR
SHIM,T=1.495 92025M 92025-2201 AR
SHIM,T=1.565 92025N 92025-2202 AR
SHIM,T=1.635 92025O 92025-2203 AR
SHIM,T=1.705 92025P 92025-2204 AR
SPACER,MAGNETO,T=3.5 92026 92026-2160 1
SPACER,T=2.0 92026A 92026-2161 1
RING-SNAP 92033 92033-2080 2
KEY,WOODRUFF 92038 92038-2094 1
PIN,8.2X10X14 92043 92043-1264 2
BOLT,6X65 92150 92150-1279 2
BOLT,6X85 92150A 92150-1280 2
BOLT,8X42 92150B 92150-2193 2
