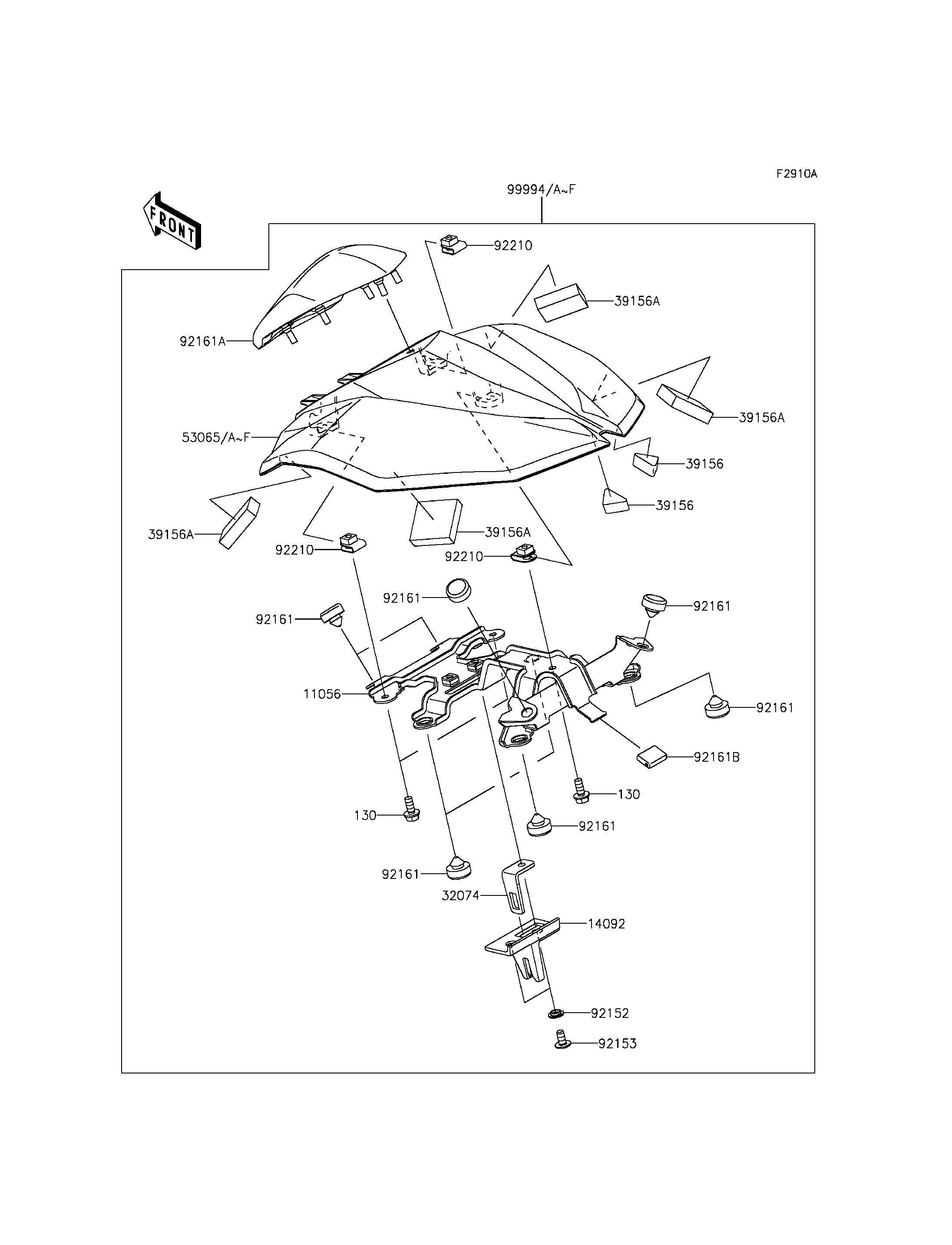

2015 ZR800 (European) - Accessory(Single Seat Cover)
130
130
11056
14092
32074
39156
39156
39156A
39156A
39156A
39156A
53065E
92152
92153
92161
92161
92161
92161
92161
92161
92161A
92161B
92210
92210
92210
99994E
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,6X14 | 130 | 130BA0614 | 3 | ||
| BRACKET | 11056 | 11056-2690 | 1 | ||
| COVER | 14092 | 14092-0248 | 1 | ||
| BRACKET-LOCK | 32074 | 32074-0017 | 1 | ||
| PAD,UPP COWLING,CNT | 39156 | 39156-0099 | 2 | ||
| PAD,38X38X10 | 39156A | 39156-0894 | 4 | ||
| COVER SEAT,M.S.BLACK | 53065E | 53065-0023-660 | 1 | ||
| COLLAR | 92152 | 92152-0250 | 2 | ||
| BOLT,SOCKET,6X12 | 92153 | 92153-1617 | 2 | ||
| DAMPER,10X20X8 | 92161 | 92161-0855 | 8 | ||
| DAMPER,CUSHION | 92161A | 92161-1460 | 1 | ||
| DAMPER | 92161B | 92161-1472 | 1 | ||
| NUT,6MM | 92210 | 92210-0277 | 3 | ||
| KIT,SINGLE SEAT,M.S.BLACK | 99994E | 99994-0410-660 | 1 |
