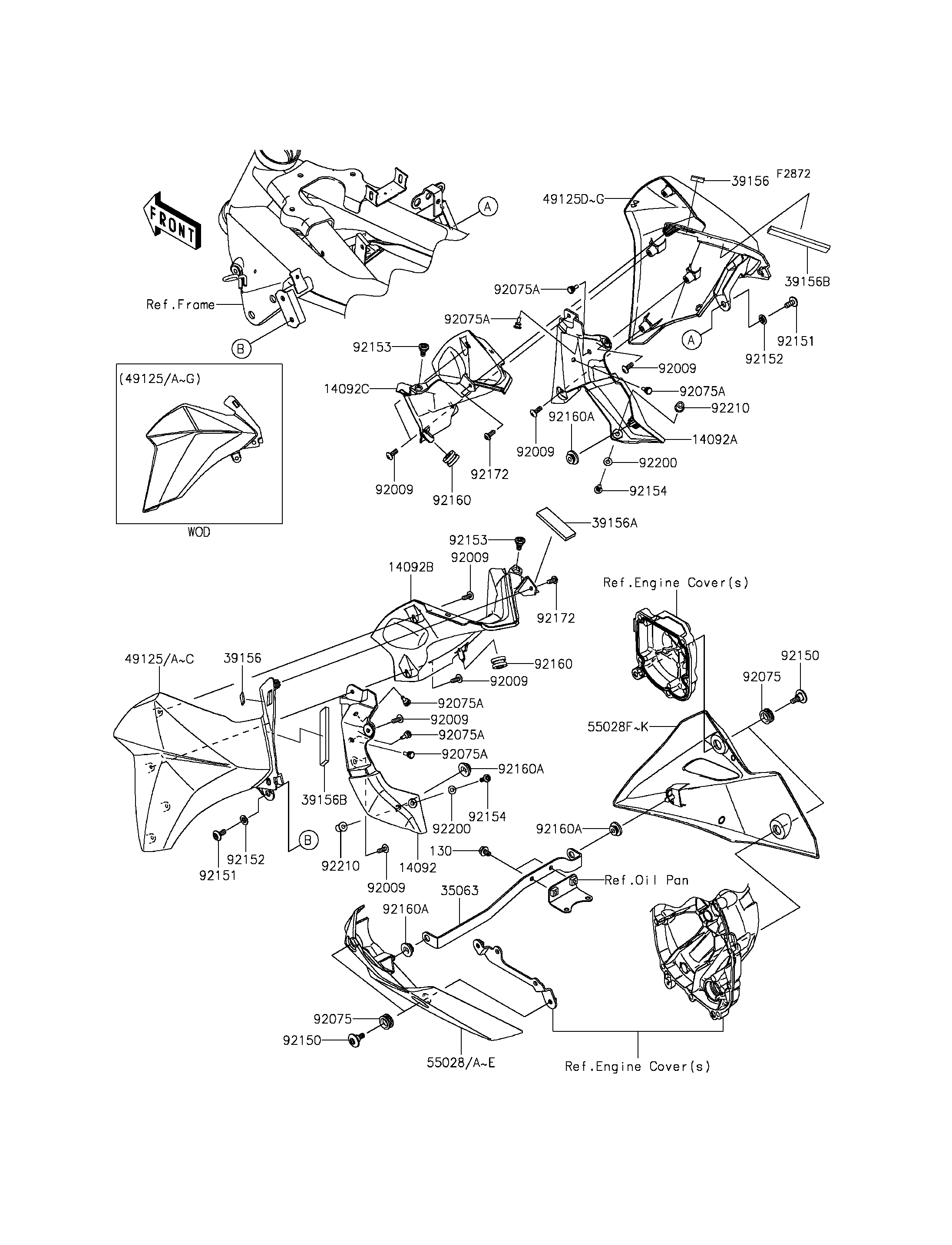

2015 ZR800 (European) - Cowling Lowers

DOWNLOAD PDF
SELECT A NEW PART
14092
14092
14092A
14092A
14092B
14092B
14092C
14092C
35063
35063
39156
39156
39156
39156
39156A
39156A
39156B
39156B
39156B
39156B
49125
49125
49125A
49125A
49125B
49125B
49125D
49125D
49125E
49125E
49125F
49125F
55028A
55028A
55028B
55028B
55028C
55028C
55028G
55028G
55028H
55028H
55028I
55028I
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92075
92075
92075
92075
92075A
92075A
92075A
92075A
92075A
92075A
92075A
92075A
92075A
92075A
92075A
92075A
92150
92150
92150
92150
92151
92151
92151
92151
92152
92152
92152
92152
92153
92153
92153
92153
92154
92154
92154
92154
92160
92160
92160
92160
92160A
92160A
92160A
92160A
92160A
92160A
92160A
92160A
92172
92172
92172
92172
92200
92200
92200
92200
130
130
92210
92210
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,RADIATOR,LH 14092 14092-0965 1
COVER,RADIATOR,RH 14092A 14092-0966 1
COVER,SHROUD,INNER,LH 14092B 14092-0967 1
COVER,SHROUD,INNER,RH 14092C 14092-0968 1
STAY,COWLING 35063 35063-0868 1
PAD,HEAT GUARD 39156 39156-0389 2
PAD,20X60X5 39156A 39156-0950 1
PAD,15X90X5 39156B 39156-0975 2
SHROUD,LH,P.S.WHITE 49125 49125-0584-25Y 1
SHROUD,LH,F.EBONY 49125A 49125-0584-45L 1
SHROUD,LH,M.S.BLACK 49125B 49125-0584-660 1
SHROUD,RH,P.S.WHITE 49125D 49125-0585-25Y 1
SHROUD,RH,F.EBONY 49125E 49125-0585-45L 1
SHROUD,RH,M.S.BLACK 49125F 49125-0585-660 1
COWLING,LWR,LH,P.S.WHITE 55028A 55028-0433-25Y 1
COWLING,LWR,LH,C.F.B.GREEN 55028B 55028-0433-35K 1
COWLING,LWR,LH,F.EBONY 55028C 55028-0433-45L 1
COWLING,LWR,RH,P.S.WHITE 55028G 55028-0434-25Y 1
COWLING,LWR,RH,C.F.B.GREEN 55028H 55028-0434-35K 1
COWLING,LWR,RH,F.EBONY 55028I 55028-0434-45L 1
SCREW,TAPPING,5X14 92009 92009-1197 8
DAMPER 92075 92075-1634 4
DAMPER 92075A 92075-1808 6
BOLT,SOCKET,6MM 92150 92150-1154 4
BOLT,SOCKET,6X14 92151 92151-1654 2
COLLAR,6.4X8X3.3 92152 92152-1702 2
BOLT,SOCKET,6MM 92153 92153-1956 2
BOLT,SOCKET,5X16 92154 92154-0026 2
DAMPER 92160 92160-1167 2
DAMPER 92160A 92160-1613 4
SCREW,SOCKET,5X14 92172 92172-0823 2
WASHER,NYLON,5.3X11.5X0.5 92200 92200-1480 2
BOLT-FLANGED,6X10 130 130BB0610 2
NUT,WELL,5MM 92210 92210-0498 2
