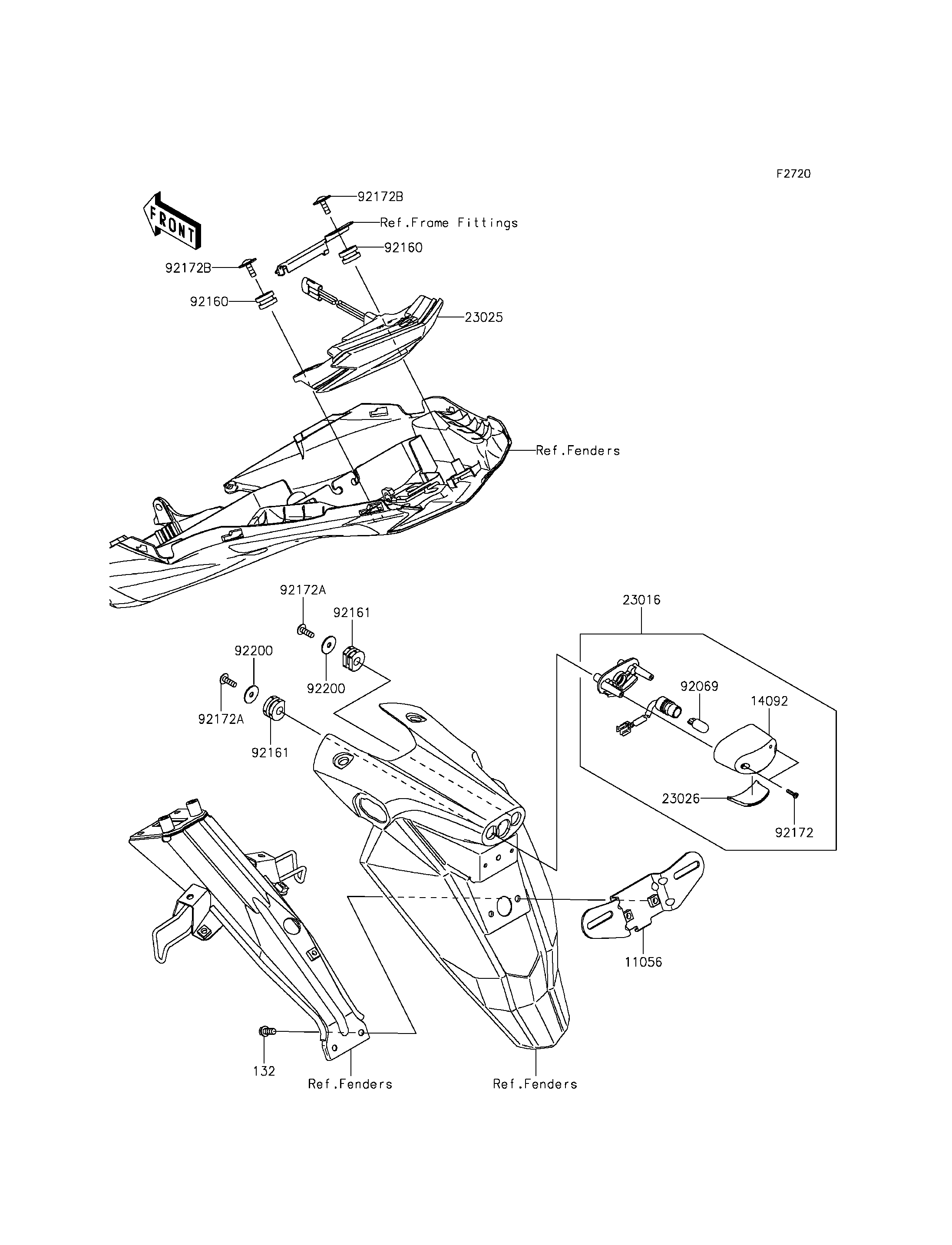

2015 ZR800 (European) - Taillight(s)

DOWNLOAD PDF
SELECT A NEW PART
132
11056
14092
23016
23025
23026
92069
92160
92160
92161
92161
92172
92172A
92172A
92172B
92172B
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X14 132 132BA0614 2
BRACKET,LICENSE 11056 11056-1540 1
COVER,LICENSE LAMP 14092 14092-0001 1
LAMP-ASSY,LICENSE 23016 23016-0561 1
LAMP-TAIL,LED 23025 23025-0344 1
LENS,LICENSE LAMP 23026 23026-0015 1
BULB,12V 5W 92069 92069-1016 1
DAMPER 92160 92160-1167 2
DAMPER 92161 92161-0776 2
SCREW,TAPPING,2.9X13 92172 92172-0343 2
SCREW,TAPPING,5X16 92172A 92172-0427 2
SCREW,TAPTITE,5X16 92172B 92172-0481 2
WASHER,5.5X20X1.2 92200 92200-0284 2
