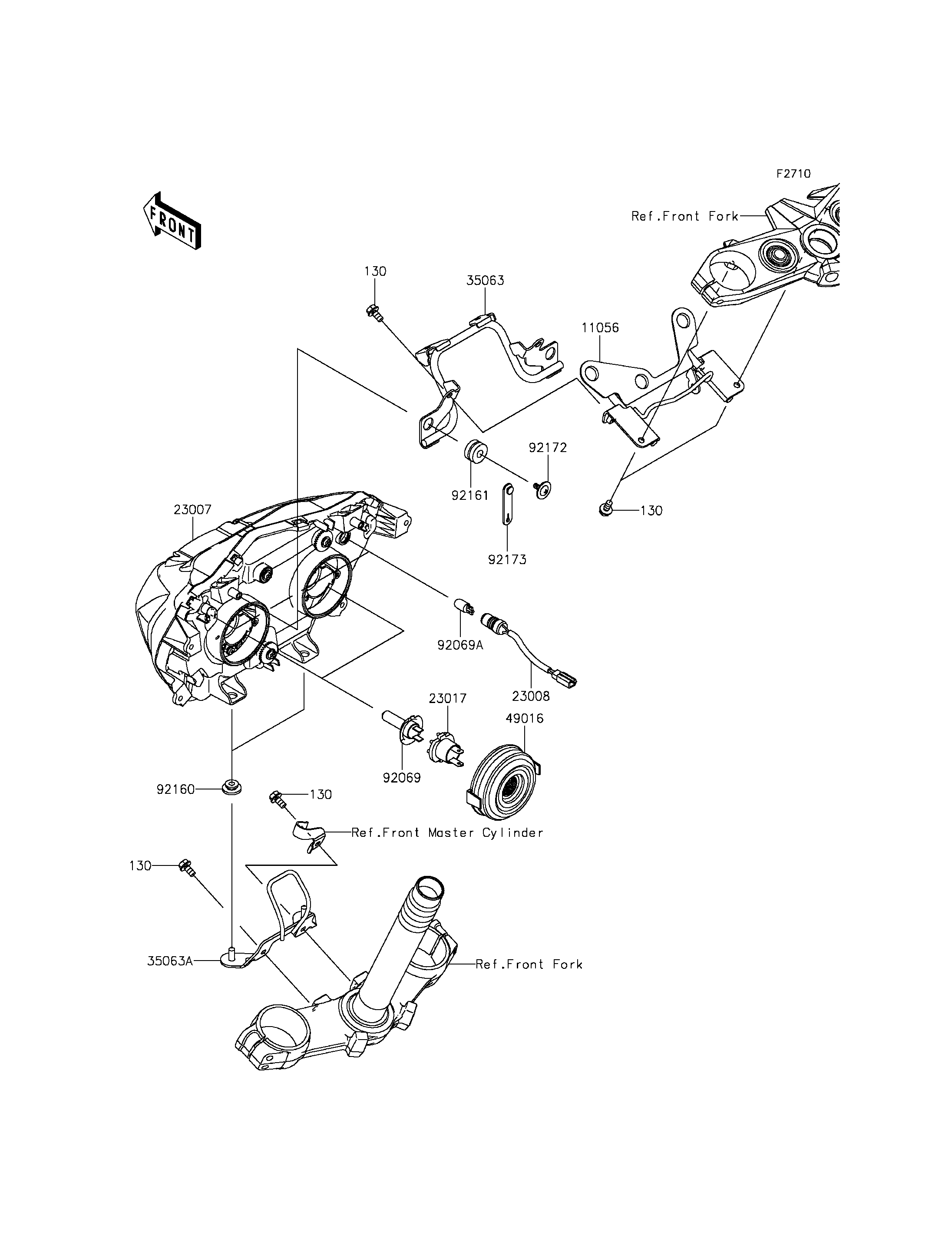

2015 ZR800 (European) - Headlight(s)

DOWNLOAD PDF
SELECT A NEW PART
130
130
130
130
11056
23007
23008
23017
35063
35063A
49016
92069
92069A
92160
92161
92172
92173
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X12 130 130BB0612 6
BRACKET,METER 11056 11056-1801 1
LENS-COMP 23007 23007-0180 1
SOCKET-ASSY,POSITION LAMP 23008 23008-0152 2
SOCKET,HEAD LAMP 23017 23017-0004 2
STAY,HEAD LAMP,UPP 35063 35063-0865 1
STAY,HEAD LAMP,LWR 35063A 35063-0866 1
COVER-SEAL 49016 49016-0591 2
BULB,12V 55W,H7 92069 92069-0053 2
BULB,12V 5W 92069A 92069-1016 2
DAMPER 92160 92160-1613 2
DAMPER 92161 92161-0054 2
SCREW,TAPPING+PW,5X14 92172 92172-0477 2
CLAMP,RUBBER PLATE 92173 92173-1229 2
