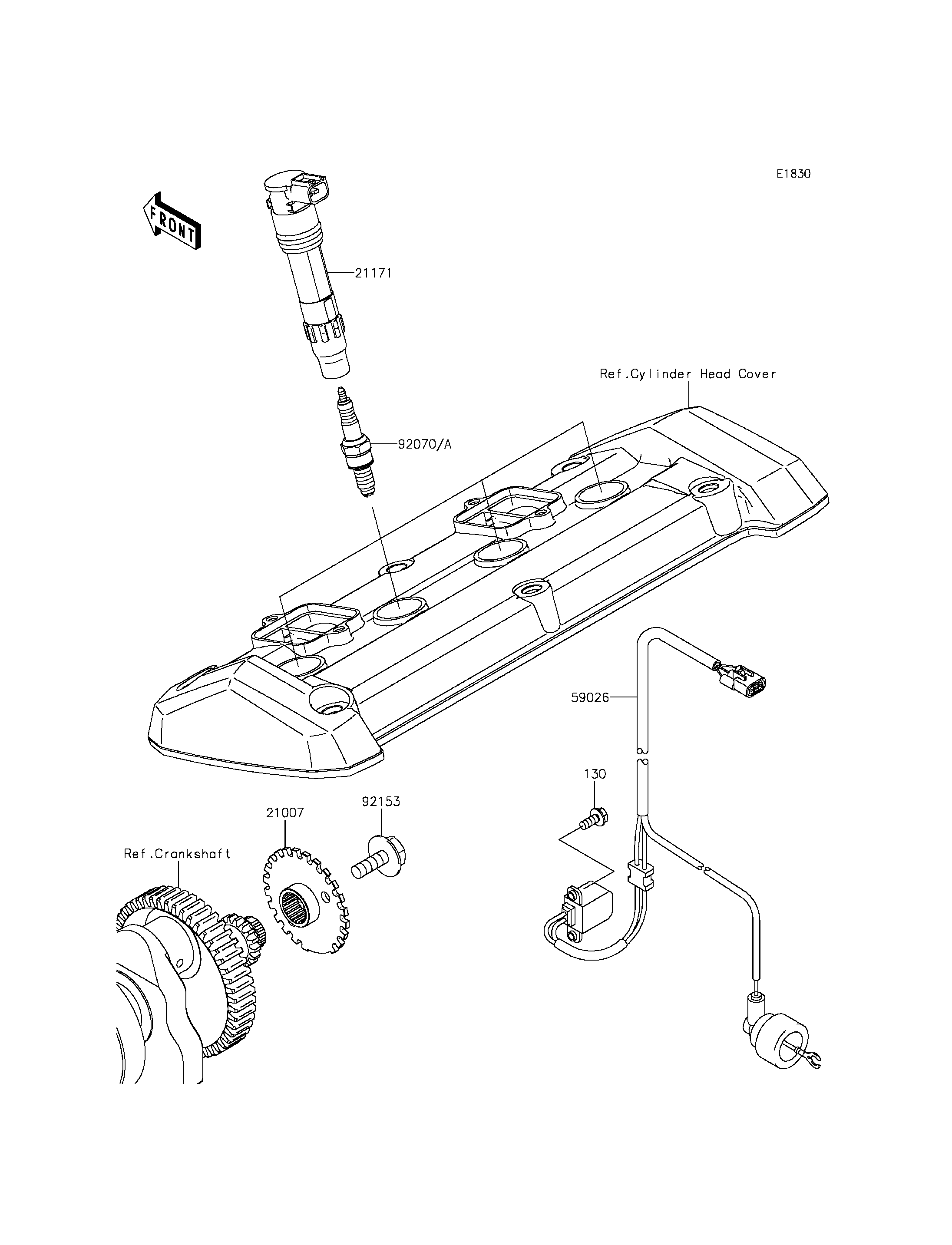

2015 ZR800 (European) - Ignition System
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,5X12 | 130 | 130BA0512 | 2 | ||
| ROTOR | 21007 | 21007-0081 | 1 | ||
| COIL-ASSY-IGNITION | 21171 | 21171-0033 | 4 | ||
| COIL-PULSING | 59026 | 59026-0555 | 1 | ||
| PLUG-SPARK,U27ETR(ND) | 92070 | 4 | (LOCAL PROCUREMENT ITEM) | ||
| PLUG-SPARK,CR9EK(NGK) | 92070A | 92070-1264 | 4 | ||
| BOLT,FLANGED,8X23 | 92153 | 92153-0549 | 1 |
| BOLT-FLANGED,5X12 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| ROTOR | |
| REF # | 21007 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COIL-ASSY-IGNITION | |
| REF # | 21171 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| COIL-PULSING | |
| REF # | 59026 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLUG-SPARK,U27ETR(ND) | |
| REF # | 92070 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | (LOCAL PROCUREMENT ITEM) |
| PLUG-SPARK,CR9EK(NGK) | |
| REF # | 92070A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,8X23 | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
