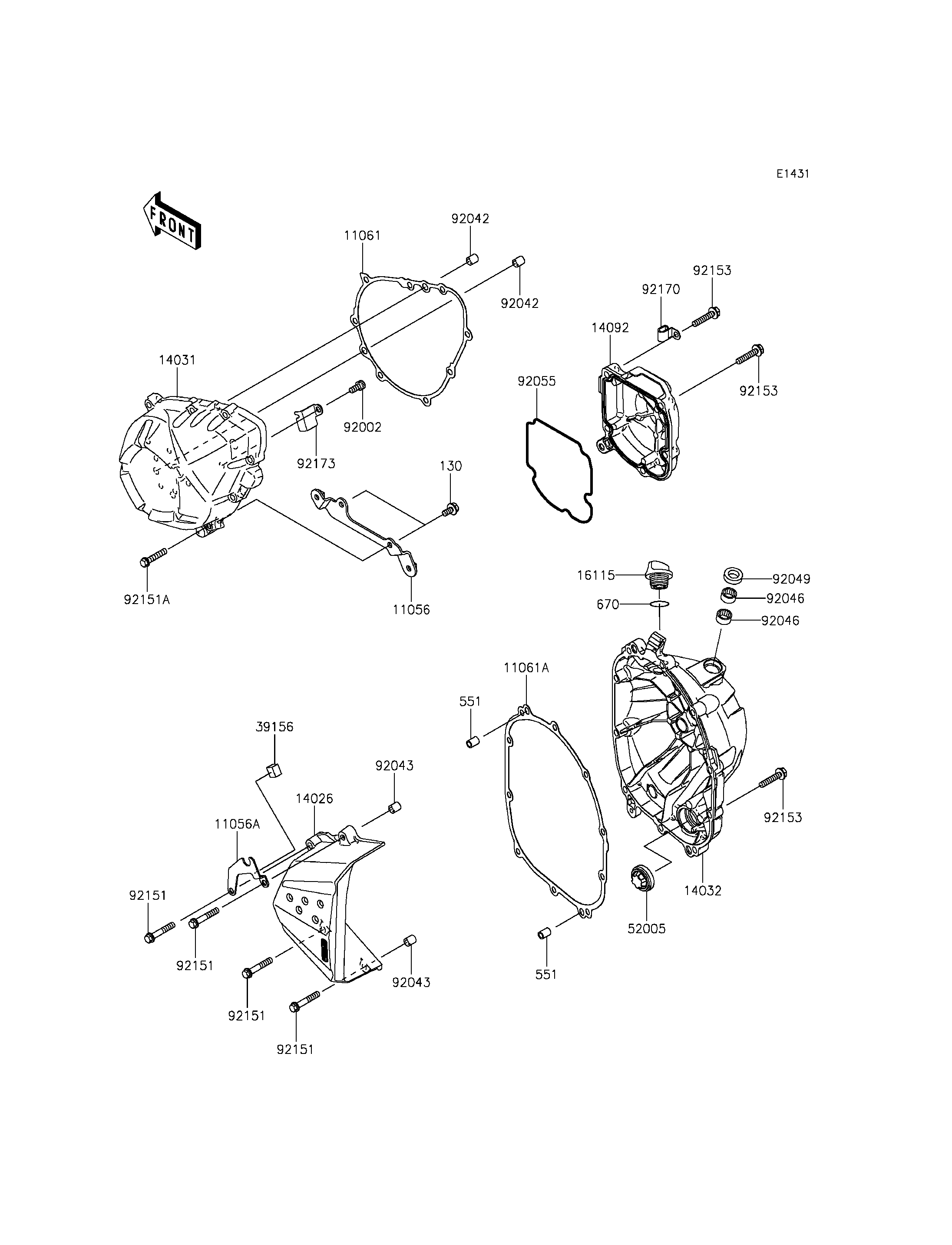

2015 ZR800 (European) - Engine Cover(s)

DOWNLOAD PDF
SELECT A NEW PART
130
551
551
670
11056
11056A
11061
11061A
14026
14031
14032
14092
16115
39156
52005
92002
92042
92042
92043
92043
92046
92046
92049
92055
92151
92151
92151
92151
92151A
92153
92153
92153
92170
92173
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X12 130 130CA0612 2
PIN-DOWEL,8X14 551 551A0814 2
O RING,20MM 670 670B2020 1
BRACKET,LWR COWLING 11056 11056-1755 1
BRACKET,THROTTLE ADJUST SCREW 11056A 11056-2385 1
GASKET,GENERATOR 11061 11061-0787 1
GASKET,CLUTCH 11061A 11061-0788 1
COVER-CHAIN 14026 14026-0102 1
COVER-GENERATOR 14031 14031-0564 1
COVER-CLUTCH 14032 14032-0586 1
COVER,PULSER 14092 14092-0950 1
CAP-OIL FILLER 16115 16115-1053 1
PAD,12X9X10 39156 39156-0992 1
GAUGE 52005 52005-1120 1
BOLT,SOCKET,6X12 92002 92002-1796 1
PIN,DOWEL,6.3X8X14 92042 92042-007 2
PIN,6.2X8X14 92043 92043-1263 2
BEARING-NEEDLE,HK1210FM 92046 92046-0034 2
SEAL-OIL,CLUTCH RELEASE 92049 92049-1475 1
RING-O,PULSE COVER 92055 92055-1570 1
BOLT,6X35 92151 92151-1135 4
BOLT,6X30 92151A 92151-1873 8
BOLT,FLANGED,6X30 92153 92153-1574 15
CLAMP 92170 92170-1577 1
CLAMP 92173 92173-0912 1
