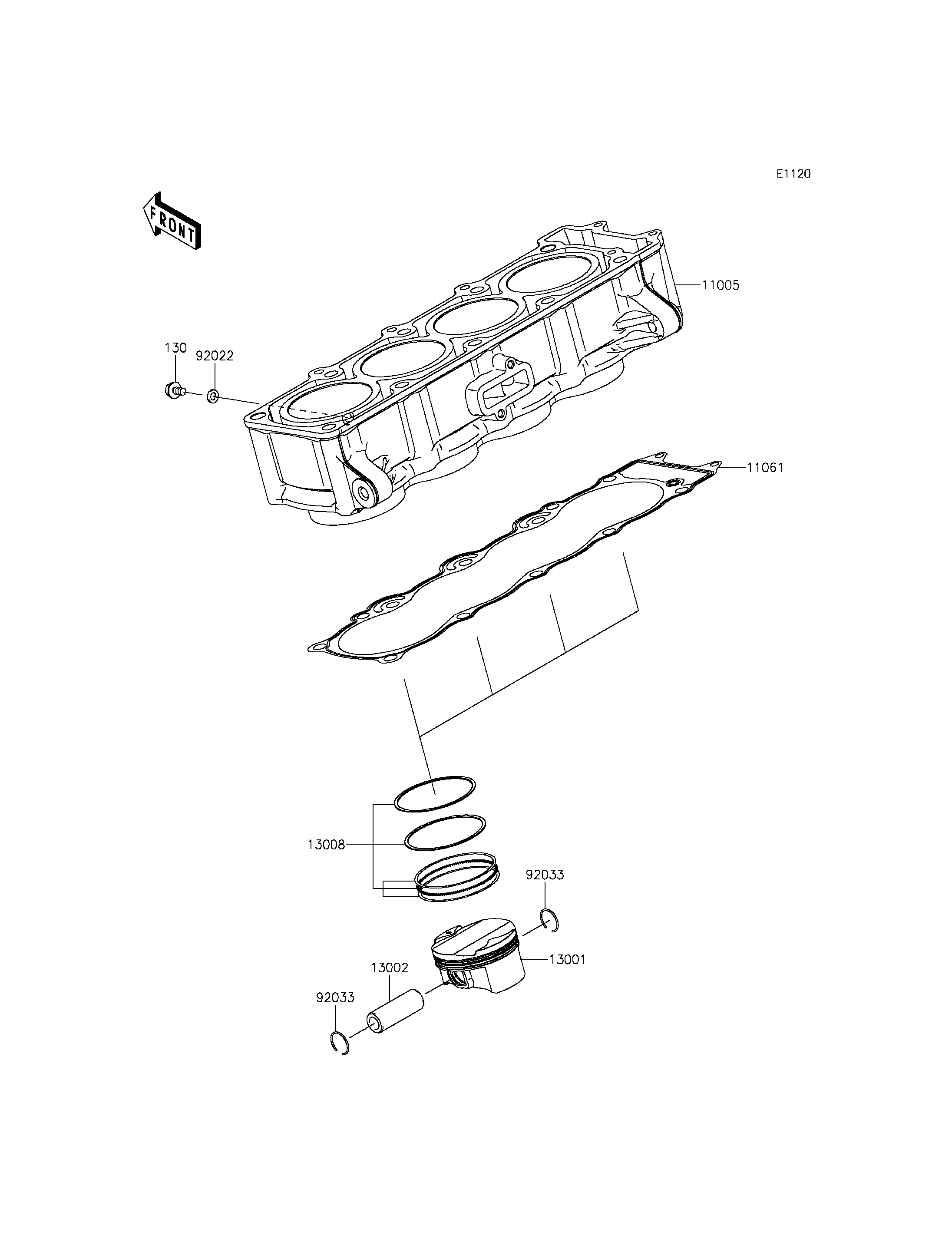

2015 ZR800 (European) - Cylinder/Piston(s)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,6X10 | 130 | 130BD0610 | 1 | ||
| CYLINDER-ENGINE | 11005 | 11005-0622 | 1 | ||
| GASKET,CYLINDER BASE | 11061 | 11061-1168 | 1 | ||
| PISTON-ENGINE | 13001 | 13001-0731 | 4 | ||
| PIN-PISTON | 13002 | 13002-0022 | 4 | ||
| RING-SET-PISTON | 13008 | 13008-0557 | 4 | ||
| WASHER,6.2X11X1 | 92022 | 92022-304 | 1 | ||
| RING-SNAP,20.5X1.2 | 92033 | 92033-1099 | 8 |
| BOLT-FLANGED,6X10 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CYLINDER-ENGINE | |
| REF # | 11005 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,CYLINDER BASE | |
| REF # | 11061 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PISTON-ENGINE | |
| REF # | 13001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| PIN-PISTON | |
| REF # | 13002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| RING-SET-PISTON | |
| REF # | 13008 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER,6.2X11X1 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-SNAP,20.5X1.2 | |
| REF # | 92033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
