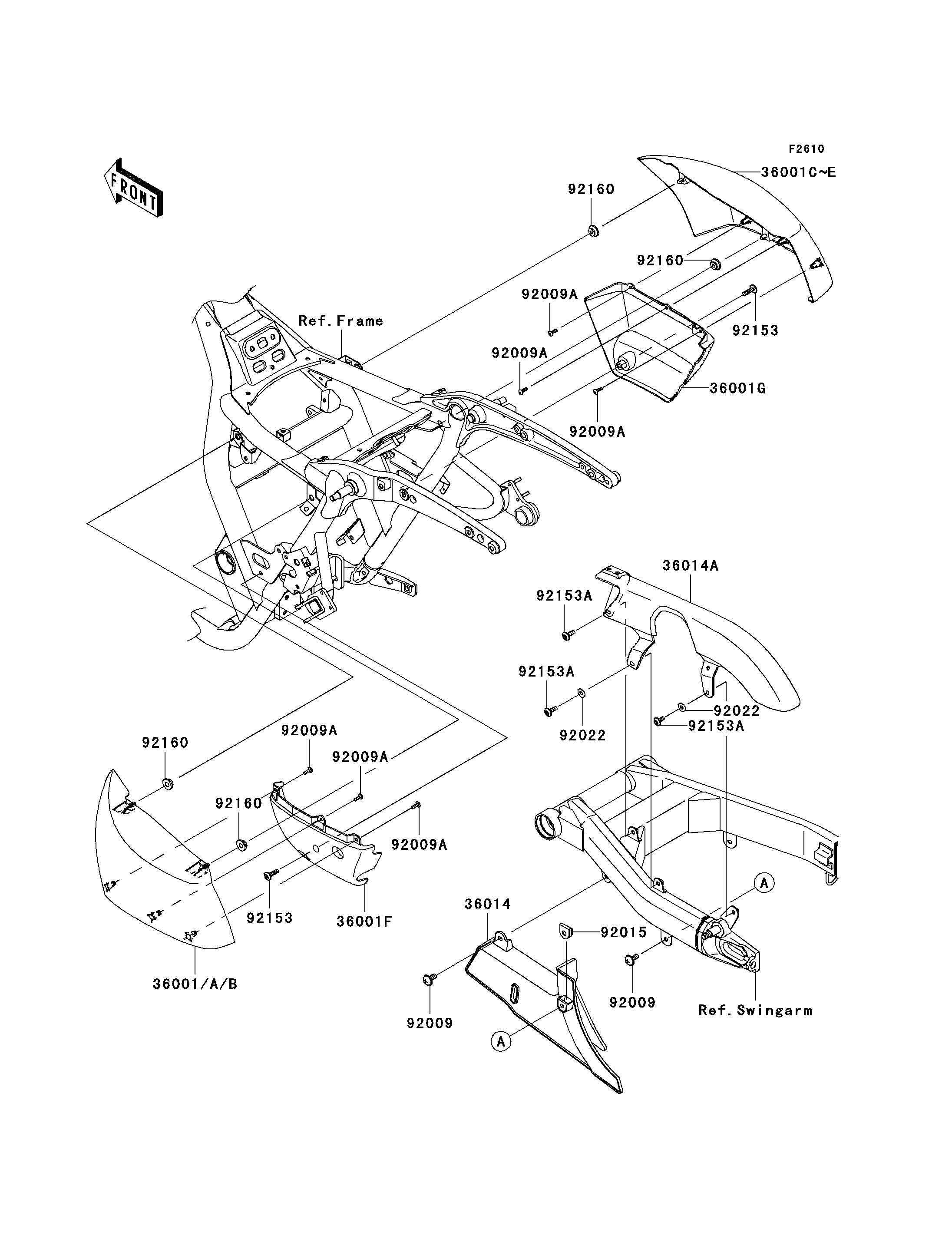

2012 VULCAN® 1700 CLASSIC - Side Covers/Chain Cover
36001
36001C
36001F
36001G
36014
36014A
92009
92009
92009A
92009A
92009A
92009A
92009A
92009A
92015
92022
92022
92153
92153
92153A
92153A
92153A
92160
92160
92160
92160
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER-SIDE,LH,UPP,EBONY | 36001 | 36001-0157-H8 | 1 | ||
| COVER-SIDE,RH,UPP,EBONY | 36001C | 36001-0158-H8 | 1 | ||
| COVER-SIDE,LH,LWR | 36001F | 36001-0202 | 1 | ||
| COVER-SIDE,RH,LWR | 36001G | 36001-0203 | 1 | ||
| CASE-CHAIN | 36014 | 36014-0042 | 1 | ||
| CASE-CHAIN,UPP | 36014A | 36014-0061 | 1 | ||
| SCREW,6X14 | 92009 | 92009-1555 | 2 | ||
| SCREW,TAPPING,4X14 | 92009A | 92009-1792 | 6 | ||
| NUT,CLIP,6MM | 92015 | 92015-1904 | 1 | ||
| WASHER,6.5X16X1.0 | 92022 | 92022-1654 | 2 | ||
| BOLT,SOCKET,6X22 | 92153 | 92153-0574 | 2 | ||
| BOLT,6X18 | 92153A | 92153-0816 | 3 | ||
| DAMPER | 92160 | 92160-1613 | 4 |
| COVER-SIDE,LH,UPP,EBONY | |
| REF # | 36001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-SIDE,RH,UPP,EBONY | |
| REF # | 36001C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-SIDE,LH,LWR | |
| REF # | 36001F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-SIDE,RH,LWR | |
| REF # | 36001G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CASE-CHAIN | |
| REF # | 36014 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CASE-CHAIN,UPP | |
| REF # | 36014A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,6X14 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING,4X14 | |
| REF # | 92009A |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| NUT,CLIP,6MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,6.5X16X1.0 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6X22 | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X18 | |
| REF # | 92153A |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92160 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
