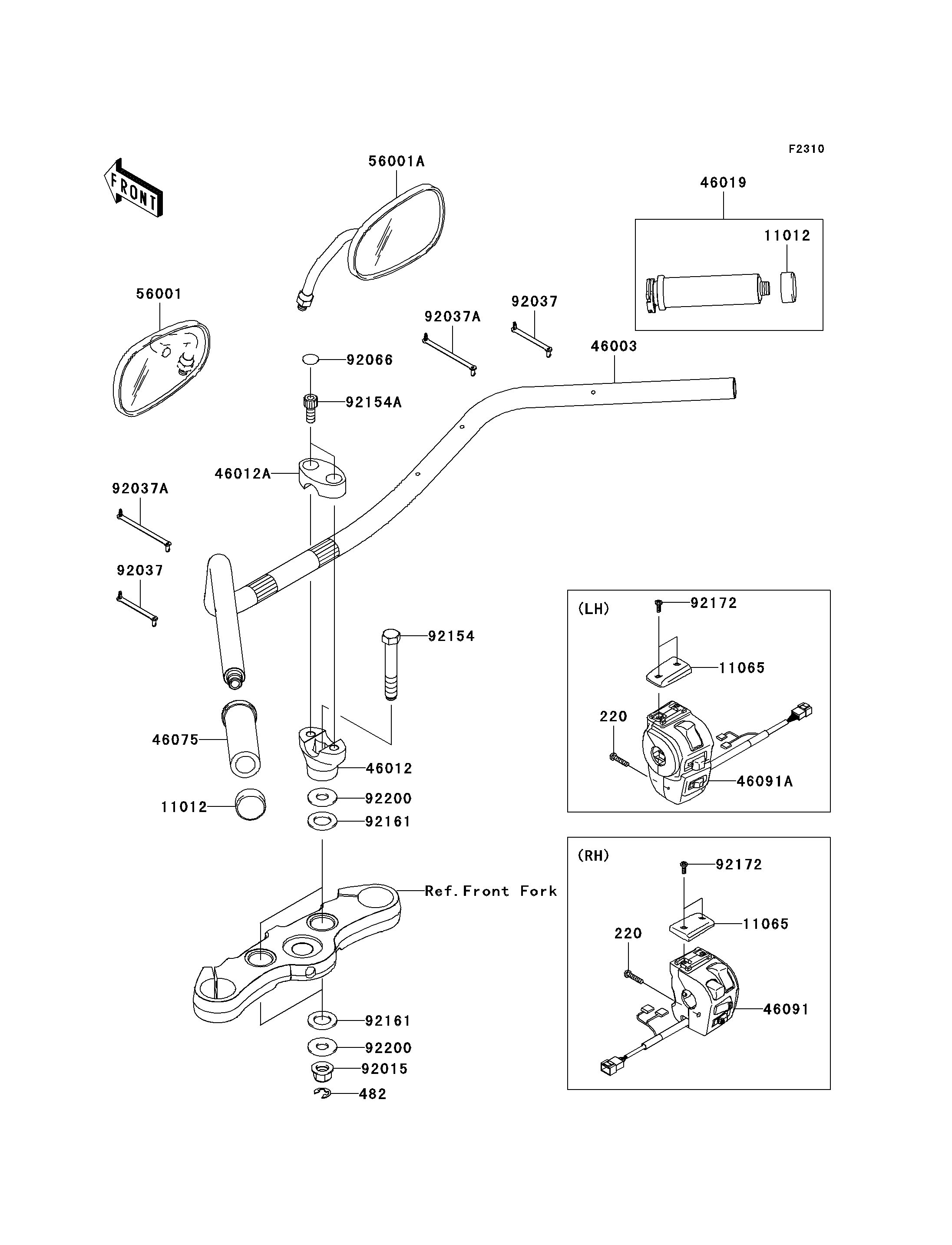

2012 VULCAN® 1700 CLASSIC - Handlebar

DOWNLOAD PDF
SELECT A NEW PART
220
220
482
11012
11012
11065
11065
46003
46012
46012A
46019
46075
46091
46091A
56001
56001A
92015
92037
92037
92037A
92037A
92066
92154
92154A
92161
92161
92172
92172
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-PAN-CROSS,5X25 220 220AB0525 2
CIRCLIP-TYPE-E,10MM 482 482EA0100 2
CAP,GRIP END 11012 11012-1975 2
CAP,HOUSING SWITCH 11065 11065-0310 2
HANDLE 46003 46003-0183 1
HOLDER-HANDLE,LWR 46012 46012-0078 2
HOLDER-HANDLE,UPP 46012A 46012-1273 2
GRIP-ASSY,THROTTLE 46019 46019-1109 1
GRIP,LH 46075 46075-1074 1
HOUSING-ASSY-CONTROL,RH 46091 46091-0167 1
HOUSING-ASSY-CONTROL,LH 46091A 46091-0170 1
MIRROR-ASSY,LH 56001 56001-0032 1
MIRROR-ASSY,RH 56001A 56001-0033 1
NUT,FLANGED,14MM 92015 92015-1401 2
CLAMP,SPEED,L=58 92037 92037-1163 2
CLAMP,SPEED,L=80.5 92037A 92037-1903 2
PLUG 92066 92066-1285 4
BOLT,UPSET,14X87 92154 92154-0279 2
BOLT,SOCKET,10X25 92154A 92154-0350 4
DAMPER,18X35X2.2 92161 92161-0836 4
SCREW,4X12 92172 92172-0421 4
WASHER,14.2X35X2.3 92200 92200-0534 4
