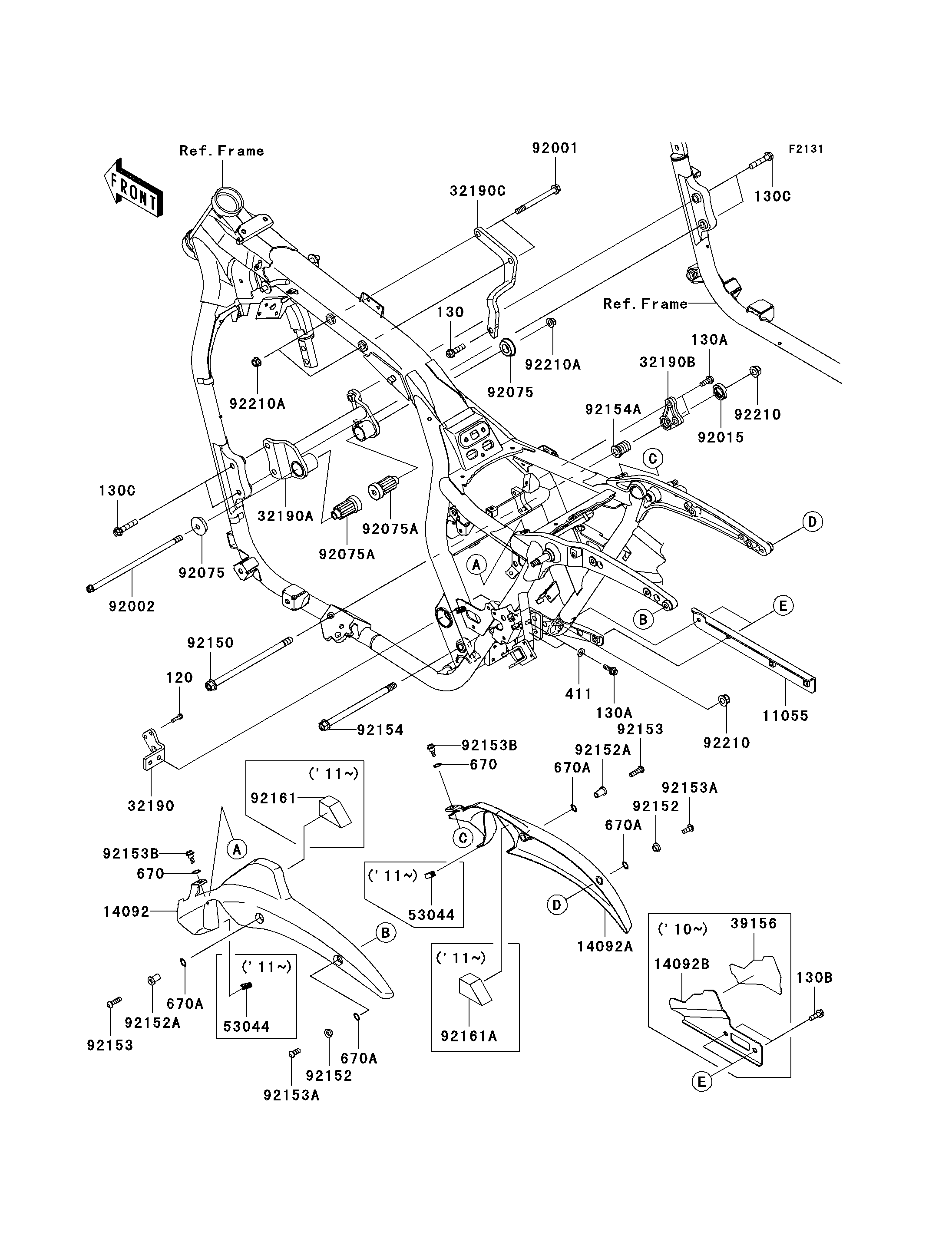

2012 VULCAN® 1700 CLASSIC - Frame Fittings
120
130
130A
130A
130B
130C
130C
411
670
670
670A
670A
670A
670A
11055
14092
14092A
14092B
32190
32190A
32190B
32190C
39156
53044
53044
92001
92002
92015
92075
92075
92075A
92075A
92150
92152
92152
92152A
92152A
92153
92153
92153A
92153A
92153B
92153B
92154
92154A
92161
92161A
92210
92210
92210A
92210A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-SOCKET,6X20 | 120 | 120CA0620 | 2 | ||
| BOLT-FLANGED,10X35 | 130 | 130BA1035 | 1 | ||
| BOLT-FLANGED,8X22 | 130A | 130BB0822 | 4 | ||
| BOLT-FLANGED,8X25 | 130B | 130BB0825 | 2 | ||
| BOLT-FLANGED,10X50 | 130C | 130BB1050 | 4 | ||
| WASHER-PLAIN,8.5X18X1.6 | 411 | 411AB0800 | 2 | ||
| O RING,10MM | 670 | 670B2010 | 2 | ||
| O RING,12MM | 670A | 670B2012 | 4 | ||
| BRACKET,MUFFLER | 11055 | 11055-1054 | 1 | ||
| COVER,RR FENDER,LH | 14092 | 14092-0061 | 1 | ||
| COVER,RR FENDER,RH | 14092A | 14092-0062 | 1 | ||
| COVER | 14092B | 14092-0137 | 1 | ||
| BRACKET-ENGINE,RR,LWR | 32190 | 32190-0396 | 1 | ||
| BRACKET-ENGINE,FR,F.S.BLACK | 32190A | 32190-0410-18R | 1 | ||
| BRACKET-ENGINE,RR,UPP,BLACK | 32190B | 32190-0446-18R | 1 | ||
| BRACKET-ENGINE,CYLINDER HEAD | 32190C | 32190-0452 | 1 | ||
| PAD,BRAKE HOSE,RR | 39156 | 39156-0629 | 1 | ||
| TRIM,L=22 | 53044 | 53044-0031 | 2 | ||
| BOLT,FLANGED,10X110 | 92001 | 92001-1602 | 2 | ||
| BOLT,FLANGED,10X260 | 92002 | 92002-1454 | 1 | ||
| NUT,ENGINE MOUNT,22MM | 92015 | 92015-1846 | 1 | ||
| DAMPER,ENGINE MOUNT | 92075 | 92075-1738 | 2 | ||
| DAMPER,ENGINE MOUNT,MAIN | 92075A | 92075-1739 | 2 | ||
| BOLT,FLANGED,12X228 | 92150 | 92150-1952 | 1 | ||
| COLLAR | 92152 | 92152-0381 | 2 | ||
| COLLAR,8.8X12X22.2 | 92152A | 92152-0744 | 2 | ||
| BOLT,SOCKET,8X30 | 92153 | 92153-0393 | 2 | ||
| BOLT,SOCKET,8X20 | 92153A | 92153-0912 | 2 | ||
| BOLT,FLANGED,6X19 | 92153B | 92153-1400 | 2 | ||
| BOLT,FLANGED,12X200 | 92154 | 92154-0244 | 1 | ||
| BOLT,ENGINE MOUNT,22X33.5 | 92154A | 92154-0245 | 1 | ||
| DAMPER | 92161 | 92161-0932 | 1 | ||
| DAMPER | 92161A | 92161-0933 | 1 | ||
| NUT,LOCK,FLANGED,12MM | 92210 | 92210-0110 | 2 | ||
| NUT,LOCK,FLANGED,10MM | 92210A | 92210-1081 | 3 |
