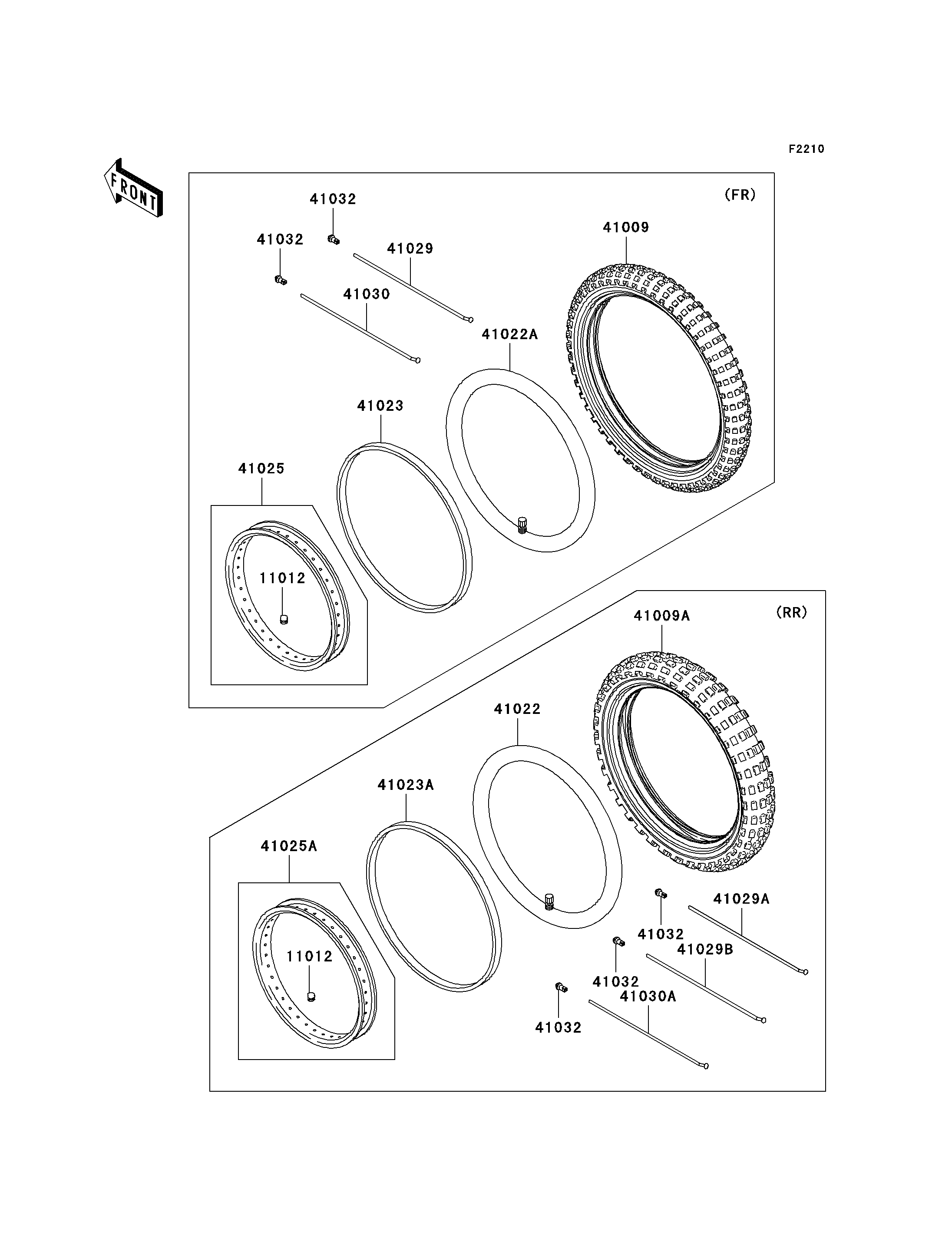

2010 Super Sherpa (Canada Only) - Wheels/Tires
11012
11012
41009
41009A
41022
41022A
41023
41023A
41025
41025A
41029
41029A
41029B
41030
41030A
41032
41032
41032
41032
41032
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP,BEAD STOPPER | 11012 | 11012-1670 | 2 | ||
| TIRE,FR,2.75-21 45P,TW301(BS) | 41009 | 41009-1194 | 1 | ||
| TIRE,RR,4.10-18 59P,TW302(BS) | 41009A | 41009-1195 | 1 | ||
| TUBE-TIRE,4.10-18(BS) | 41022 | 41022-1145 | 1 | ||
| TUBE-TIRE,2.75/3.50-21(BS) | 41022A | 41022-1178 | 1 | ||
| BAND-RIM,X-21(BS) | 41023 | 41023-1009 | 1 | ||
| BAND-RIM,4.10-18(BS) | 41023A | 41023-1086 | 1 | ||
| RIM,FR,1.60X21,A.SILVER | 41025 | 41025-1330-WA | 1 | ||
| RIM,RR,2.15X18,SILVER | 41025A | 41025-1332-WA | 1 | ||
| SPOKE-INNER,FR,229MMX167D | 41029 | 41029-0017 | 18 | ||
| SPOKE-INNER,RR,RH,190MMX162D | 41029A | 41029-0018 | 18 | ||
| SPOKE-INNER,RR,LH,194MMX172D | 41029B | 41029-0019 | 9 | ||
| SPOKE-OUTER,FR,227MMX167D | 41030 | 41030-0006 | 18 | ||
| SPOKE-OUTER,RR,LH,192MMX172D | 41030A | 41030-0007 | 9 | ||
| NIPPLE-SPOKE | 41032 | 41032-1073 | 72 |
| CAP,BEAD STOPPER | |
| REF # | 11012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| TIRE,FR,2.75-21 45P,TW301(BS) | |
| REF # | 41009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TIRE,RR,4.10-18 59P,TW302(BS) | |
| REF # | 41009A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE-TIRE,4.10-18(BS) | |
| REF # | 41022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE-TIRE,2.75/3.50-21(BS) | |
| REF # | 41022A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND-RIM,X-21(BS) | |
| REF # | 41023 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND-RIM,4.10-18(BS) | |
| REF # | 41023A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RIM,FR,1.60X21,A.SILVER | |
| REF # | 41025 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RIM,RR,2.15X18,SILVER | |
| REF # | 41025A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPOKE-INNER,FR,229MMX167D | |
| REF # | 41029 |
|---|---|
| PART NUMBER | |
| QUANTITY | 18 |
| DESTINATION | |
| REMARKS | |
| SPOKE-INNER,RR,RH,190MMX162D | |
| REF # | 41029A |
|---|---|
| PART NUMBER | |
| QUANTITY | 18 |
| DESTINATION | |
| REMARKS | |
| SPOKE-INNER,RR,LH,194MMX172D | |
| REF # | 41029B |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | |
| SPOKE-OUTER,FR,227MMX167D | |
| REF # | 41030 |
|---|---|
| PART NUMBER | |
| QUANTITY | 18 |
| DESTINATION | |
| REMARKS | |
| SPOKE-OUTER,RR,LH,192MMX172D | |
| REF # | 41030A |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | |
| NIPPLE-SPOKE | |
| REF # | 41032 |
|---|---|
| PART NUMBER | |
| QUANTITY | 72 |
| DESTINATION | |
| REMARKS | |
