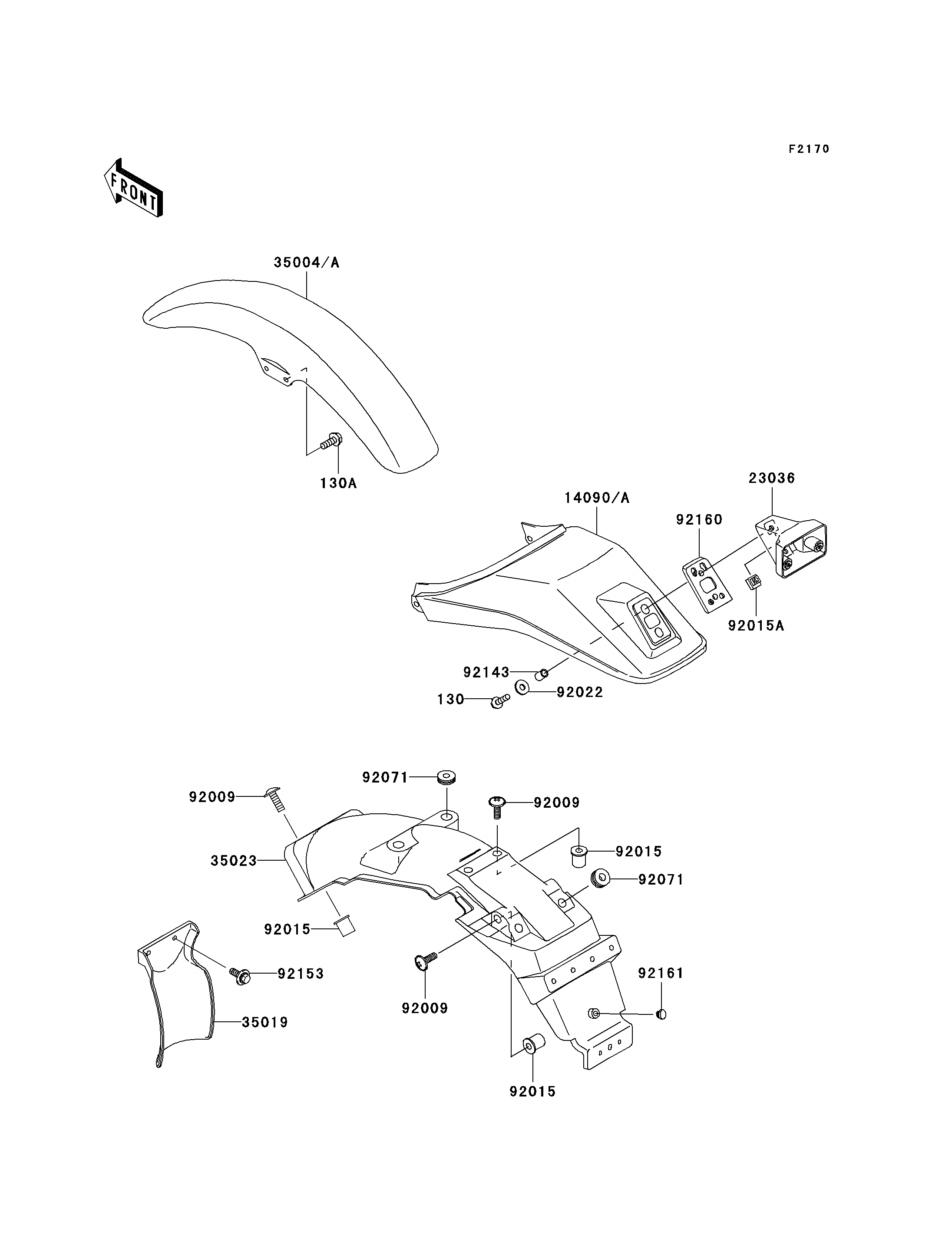

2010 Super Sherpa (Canada Only) - Fenders
130
130A
14090
23036
35004
35019
35023
92009
92009
92009
92015
92015
92015
92015A
92022
92071
92071
92143
92153
92160
92161
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,5X20 | 130 | 130BA0520 | 2 | ||
| BOLT-FLANGED,6X16 | 130A | 130BA0616 | 4 | ||
| COVER,SEAT,EBONY | 14090 | 14090-1796-6C | 1 | ||
| BRACKET-TAIL LAMP | 23036 | 23036-1146 | 1 | ||
| FENDER-FRONT,LOW TYPE,EBONY | 35004 | 35004-1365-6C | 1 | ||
| FLAP,RR FENDER,FR | 35019 | 35019-1345 | 1 | ||
| FENDER-REAR | 35023 | 35023-1530 | 1 | ||
| SCREW,6X18 | 92009 | 92009-1663 | 6 | ||
| NUT | 92015 | 92015-1700 | 6 | ||
| NUT,5MM | 92015A | 92015-1798 | 2 | ||
| WASHER,5.2X16X1.2 | 92022 | 92022-263 | 2 | ||
| GROMMET | 92071 | 92071-056 | 4 | ||
| COLLAR,5.6X8X9.3 | 92143 | 92143-1984 | 2 | ||
| BOLT,6X16 | 92153 | 92153-0863 | 2 | ||
| DAMPER,TAIL LAMP BRACKET | 92160 | 92160-1826 | 1 | ||
| DAMPER | 92161 | 92161-1084 | 1 |
