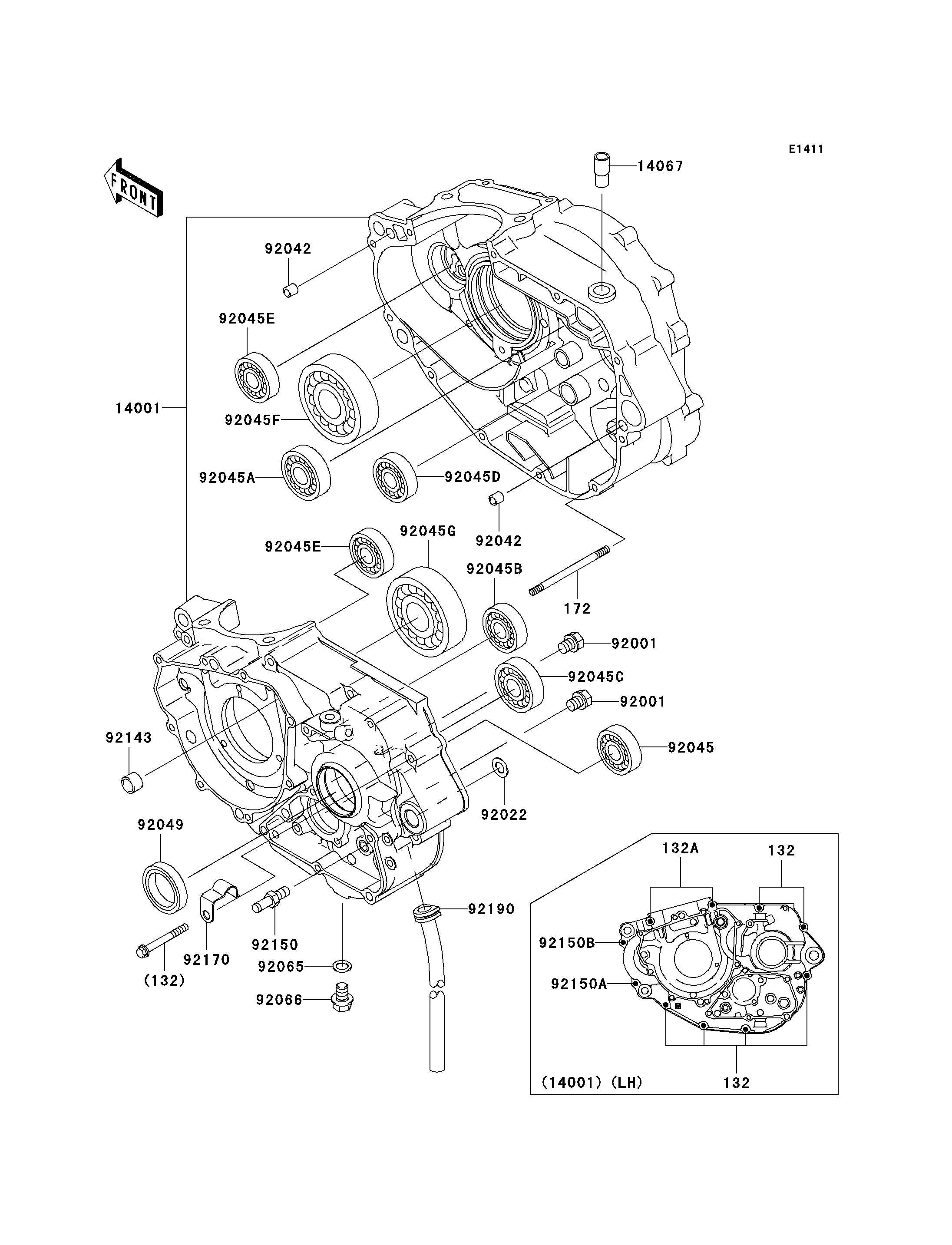

2010 Super Sherpa (Canada Only) - Crankcase

DOWNLOAD PDF
SELECT A NEW PART
132
132
132A
172
14001
14067
92001
92001
92022
92042
92042
92045
92045A
92045B
92045C
92045D
92045E
92045E
92045F
92045G
92049
92065
92066
92143
92150
92150A
92150B
92170
92190
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X50 132 132BD0650 6
BOLT-FLANGED-SMALL,6X70 132A 132BD0670 2
BOLT-STUD,6X80 172 172BA0680 1
SET-CRANKCASE 14001 14001-5359 1
FITTING,BREATHER 14067 14067-006 1
BOLT,W/WASHER,6X14 92001 92001-1829 2
WASHER,10.2X18X1.0,SK5 92022 92022-1415 1
PIN,DOWEL,6.3X8X14 92042 92042-007 2
BEARING-BALL,#6905 92045 92045-036 1
BEARING-BALL,TMB204 JR 92045A 92045-1041 1
BEARING-BALL,TMB203LU 92045B 92045-1287 1
BEARING-BALL,TMB205LU 92045C 92045-1288 1
BEARING-BALL,TMB203 92045D 92045-1291 1
BEARING-BALL,TMB302JR2 92045E 92045-1346 2
BEARING-BALL,TMB306JR2 92045F 92045-1347 1
BEARING-BALL,3TM-6207CJR2 92045G 92045-1348 1
SEAL-OIL,TC32457 92049 92049-1577 1
GASKET,10.5X16X1 92065 92065-058 1
PLUG,DRAIN 92066 92066-1241 1
COLLAR 92143 92143-1263 1
BOLT,RETURN SPRING 92150 92150-1803 1
BOLT,SOCKET,6X50 92150A 92150-1874 1
BOLT,SOCKET,6X35 92150B 92150-1875 1
CLAMP,TUBE 92170 92170-1803 1
TUBE 92190 92190-1493 1
