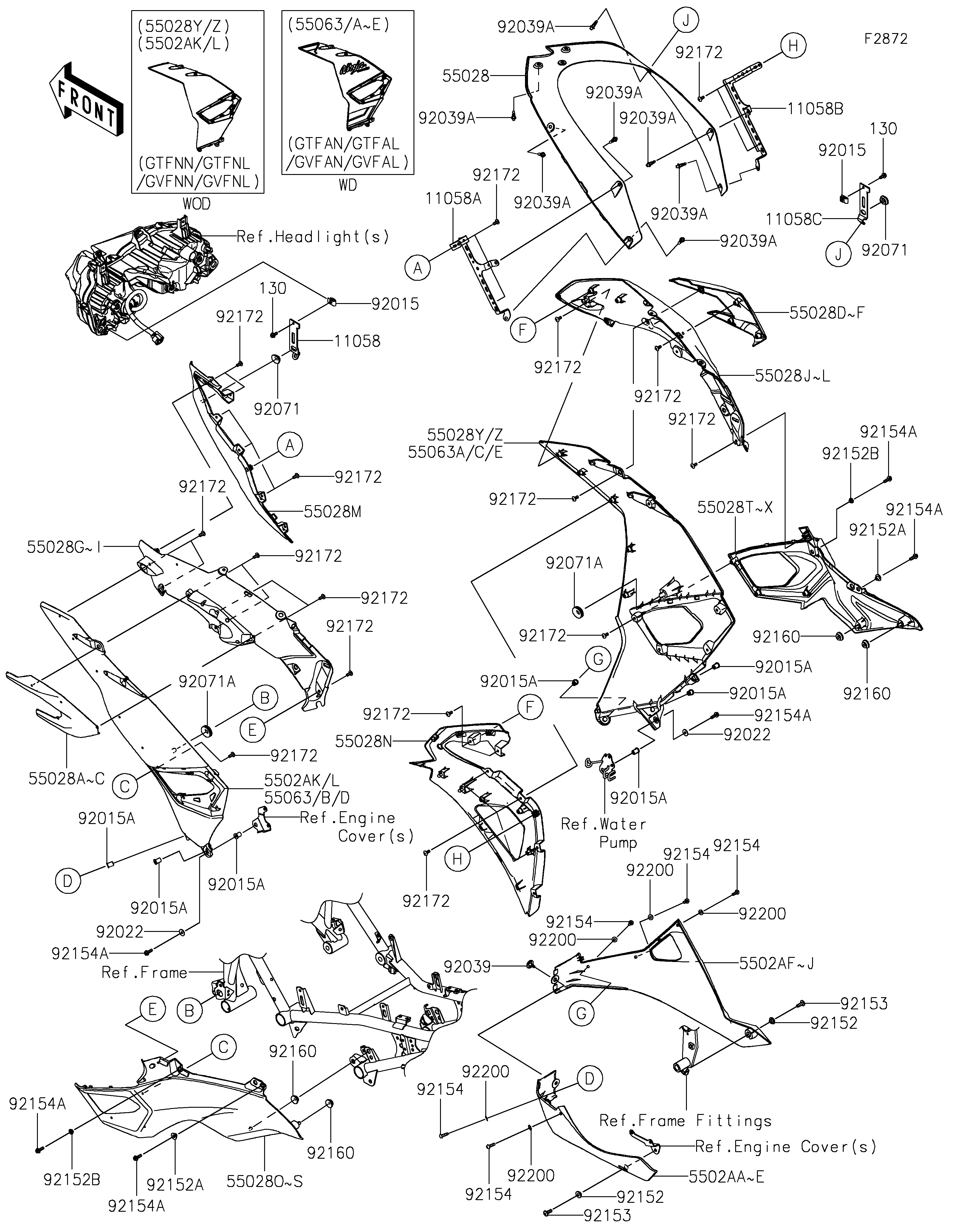

Parts Diagrams |
11058
11058
11058A
11058A
11058B
11058B
11058C
11058C
55028
55028
55028A
55028A
55028B
55028B
55028D
55028D
55028E
55028E
55028G
55028G
55028I
55028I
55028J
55028J
55028L
55028L
55028M
55028M
55028N
55028N
55028O
55028O
55028Q
55028Q
55028S
55028S
55028T
55028T
55028V
55028V
55028X
55028X
55028Y
55028Y
5502AB
5502AB
5502AD
5502AD
5502AE
5502AE
5502AG
5502AG
5502AI
5502AI
5502AJ
5502AJ
5502AK
5502AK
55063
55063
55063A
55063A
55063B
55063B
55063C
55063C
92015
92015
92015
92015
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92022
92022
92022
92022
92039
92039
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92071
92071
92071
92071
92071A
92071A
92071A
92071A
92152
92152
92152
92152
92152A
92152A
92152A
92152A
92152B
92152B
92152B
92152B
92153
92153
92153
92153
92154
92154
92154
92154
92154
92154
92154
92154
92154
92154
92154A
92154A
92154A
92154A
92154A
92154A
92154A
92154A
92154A
92154A
92154A
92154A
92160
92160
92160
92160
92160
92160
92160
92160
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
130
130
130
130
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,HEAD LAMP,LH | 11058 | 11058-1180 | 1 | ||
| BRACKET,FR COWLING,LH | 11058A | 11058-1182 | 1 | ||
| BRACKET,FR COWLING,RH | 11058B | 11058-1183 | 1 | ||
| BRACKET,HEAD LAMP,RH | 11058C | 11058-2403 | 1 | ||
| COWLING,FR | 55028 | 55028-0877 | 1 | ||
| COWLING,FIN,LH,M.S.SILVER | 55028A | 55028-0878-35Z | 1 | ||
| COWLING,FIN,LH,M.S.BLACK | 55028B | 55028-0878-660 | 1 | ||
| COWLING,FIN,RH,M.S.SILVER | 55028D | 55028-0879-35Z | 1 | ||
| COWLING,FIN,RH,M.S.BLACK | 55028E | 55028-0879-660 | 1 | ||
| COWLING,SIDE,UPP,LH,M.S.BLACK | 55028G | 55028-0880-660 | 1 | ||
| COWLING,SIDE,UPP,LH,EBONY | 55028I | 55028-0880-H8 | 1 | ||
| COWLING,SIDE,UPP,RH,M.S.BLACK | 55028J | 55028-0881-660 | 1 | ||
| COWLING,SIDE,UPP,RH,EBONY | 55028L | 55028-0881-H8 | 1 | ||
| COWLING,SIDE,FR,LH | 55028M | 55028-0882 | 1 | ||
| COWLING,SIDE,FR,RH | 55028N | 55028-0883 | 1 | ||
| COWLING,SIDE,RR,LH,M.M.T.BLUE | 55028O | 55028-0884-68M | 1 | ||
| COWLING,SIDE,RR,LH,M.F.S.BLACK | 55028Q | 55028-0884-739 | 1 | ||
| COWLING,SIDE,RR,LH,EBONY | 55028S | 55028-0884-H8 | 1 | ||
| COWLING,SIDE,RR,RH,M.M.T.BLUE | 55028T | 55028-0885-68M | 1 | ||
| COWLING,SIDE,RR,RH,M.F.S.BLACK | 55028V | 55028-0885-739 | 1 | ||
| COWLING,SIDE,RR,RH,EBONY | 55028X | 55028-0885-H8 | 1 | ||
| COWLING,SIDE,RH,M.F.S.BLACK | 55028Y | 55028-0887-739 | 1 | ||
| COWLING,LWR,LH,M.F.S.BLACK | 5502AB | 55028-0888-739 | 1 | ||
| COWLING,LWR,LH,M.Y.GREEN | 5502AD | 55028-0888-79K | 1 | ||
| COWLING,LWR,LH,C.P.RED | 5502AE | 55028-0888-A5 | 1 | ||
| COWLING,LWR,RH,M.F.S.BLACK | 5502AG | 55028-0889-739 | 1 | ||
| COWLING,LWR,RH,M.Y.GREEN | 5502AI | 55028-0889-79K | 1 | ||
| COWLING,LWR,RH,C.P.RED | 5502AJ | 55028-0889-A5 | 1 | ||
| COWLING,SIDE,LH,M.F.S.BLACK | 5502AK | 55028-0916-739 | 1 | ||
| COWLING,SIDE,LH,EBONY | 55063 | 55063-5252-H8 | 1 | ||
| COWLING,SIDE,RH,EBONY | 55063A | 55063-5254-H8 | 1 | ||
| COWLING,SIDE,LH,M.M.T.BLUE | 55063B | 55063-5260-68M | 1 | ||
| COWLING,SIDE,RH,M.M.T.BLUE | 55063C | 55063-5262-68M | 1 | ||
| NUT,5MM | 92015 | 92015-1710 | 2 | ||
| NUT,WELL,5MM | 92015A | 92015-1757 | 7 | ||
| WASHER,5.2X16X1.2 | 92022 | 92022-263 | 2 | ||
| RIVET,HOLE 8MM | 92039 | 92039-0014 | 1 | ||
| RIVET | 92039A | 92039-0709 | 9 | ||
| GROMMET,20X24X7.5 | 92071 | 92071-0766 | 2 | ||
| GROMMET | 92071A | 92071-1043 | 2 | ||
| COLLAR,6.5X16X5.6 | 92152 | 92152-1838 | 2 | ||
| COLLAR,5.2X7.8X7.2 | 92152A | 92152-2371 | 2 | ||
| COLLAR,6X8X4.5 | 92152B | 92152-2395 | 2 | ||
| BOLT,6X18 | 92153 | 92153-0478 | 2 | ||
| BOLT,SOCKET,5X16 | 92154 | 92154-4294 | 5 | ||
| BOLT,FLANGED,5X16 | 92154A | 92154-7034 | 6 | ||
| DAMPER | 92160 | 92160-1613 | 4 | ||
| SCREW,5X12 | 92172 | 92172-0821 | 34 | ||
| WASHER,5.2X12X1.0 | 92200 | 92200-0784 | 5 | ||
| BOLT-FLANGED,5X12 | 130 | 130BA0512 | 2 |
| BRACKET,HEAD LAMP,LH | |
| REF # | 11058 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,FR COWLING,LH | |
| REF # | 11058A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,FR COWLING,RH | |
| REF # | 11058B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,HEAD LAMP,RH | |
| REF # | 11058C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,FR | |
| REF # | 55028 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,FIN,LH,M.S.SILVER | |
| REF # | 55028A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,FIN,LH,M.S.BLACK | |
| REF # | 55028B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,FIN,RH,M.S.SILVER | |
| REF # | 55028D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,FIN,RH,M.S.BLACK | |
| REF # | 55028E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,SIDE,UPP,LH,M.S.BLACK | |
| REF # | 55028G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,SIDE,UPP,LH,EBONY | |
| REF # | 55028I |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,SIDE,UPP,RH,M.S.BLACK | |
| REF # | 55028J |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,SIDE,UPP,RH,EBONY | |
| REF # | 55028L |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,SIDE,FR,LH | |
| REF # | 55028M |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,SIDE,FR,RH | |
| REF # | 55028N |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,SIDE,RR,LH,M.M.T.BLUE | |
| REF # | 55028O |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,SIDE,RR,LH,M.F.S.BLACK | |
| REF # | 55028Q |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,SIDE,RR,LH,EBONY | |
| REF # | 55028S |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,SIDE,RR,RH,M.M.T.BLUE | |
| REF # | 55028T |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,SIDE,RR,RH,M.F.S.BLACK | |
| REF # | 55028V |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,SIDE,RR,RH,EBONY | |
| REF # | 55028X |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,SIDE,RH,M.F.S.BLACK | |
| REF # | 55028Y |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,LWR,LH,M.F.S.BLACK | |
| REF # | 5502AB |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,LWR,LH,M.Y.GREEN | |
| REF # | 5502AD |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,LWR,LH,C.P.RED | |
| REF # | 5502AE |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,LWR,RH,M.F.S.BLACK | |
| REF # | 5502AG |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,LWR,RH,M.Y.GREEN | |
| REF # | 5502AI |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,LWR,RH,C.P.RED | |
| REF # | 5502AJ |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,SIDE,LH,M.F.S.BLACK | |
| REF # | 5502AK |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,SIDE,LH,EBONY | |
| REF # | 55063 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,SIDE,RH,EBONY | |
| REF # | 55063A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,SIDE,LH,M.M.T.BLUE | |
| REF # | 55063B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,SIDE,RH,M.M.T.BLUE | |
| REF # | 55063C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,5MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,WELL,5MM | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 7 |
| DESTINATION | |
| REMARKS | |
| WASHER,5.2X16X1.2 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RIVET,HOLE 8MM | |
| REF # | 92039 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RIVET | |
| REF # | 92039A |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | |
| GROMMET,20X24X7.5 | |
| REF # | 92071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| GROMMET | |
| REF # | 92071A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,6.5X16X5.6 | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,5.2X7.8X7.2 | |
| REF # | 92152A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,6X8X4.5 | |
| REF # | 92152B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X18 | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,5X16 | |
| REF # | 92154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,5X16 | |
| REF # | 92154A |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92160 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SCREW,5X12 | |
| REF # | 92172 |
|---|---|
| PART NUMBER | |
| QUANTITY | 34 |
| DESTINATION | |
| REMARKS | |
| WASHER,5.2X12X1.0 | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,5X12 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
