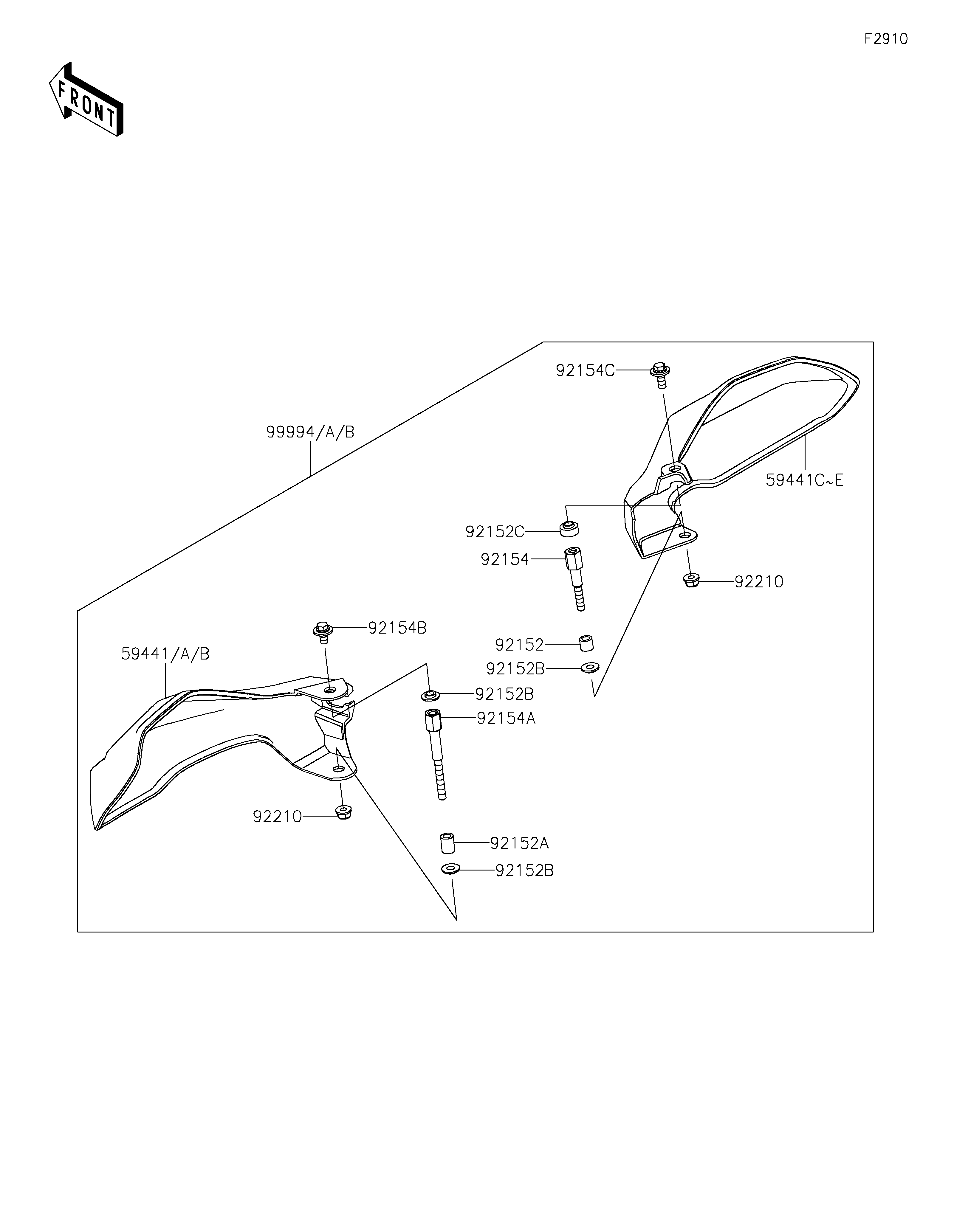

2026 KLX®230 SHERPA S ABS - Accessory(Handle)

DOWNLOAD PDF
SELECT A NEW PART
59441
59441A
59441B
59441C
59441D
59441E
92152
92152A
92152B
92152B
92152B
92152C
92154
92154A
92154B
92154C
92210
92210
99994
99994A
99994B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER-HANDLE,LH,W.BEIGE 59441 59441-0045-67J 1
COVER-HANDLE,LH,M.C.GRAY 59441A 59441-0045-67K 1 CN
COVER-HANDLE,LH,M.S.GREEN 59441B 59441-0045-67L 1 CN
COVER-HANDLE,RH,W.BEIGE 59441C 59441-0046-67J 1
COVER-HANDLE,RH,M.C.GRAY 59441D 59441-0046-67K 1 CN
COVER-HANDLE,RH,M.S.GREEN 59441E 59441-0046-67L 1 CN
COLLAR,6.5X10.5X9.3 92152 92152-1992 1
COLLAR,6.5X10.5X14 92152A 92152-2302 1
COLLAR,6.5X15X3.4 92152B 92152-2314 3
COLLAR 92152C 92152-2592 1
BOLT 92154 92154-1670 1
BOLT 92154A 92154-2359 1
BOLT,6X12 92154B 92154-7271 1
BOLT,FLANGED,6X16 92154C 92154-7288 1
NUT,LOCK,FLANGED,6MM 92210 92210-1992 2
HAND COVER,W.BEIGE 99994 99994-2073-67J 1
HAND COVER,M.C.GRAY 99994A 99994-2073-67K 1 CN
HAND COVER,M.S.GREEN 99994B 99994-2073-67L 1 CN
