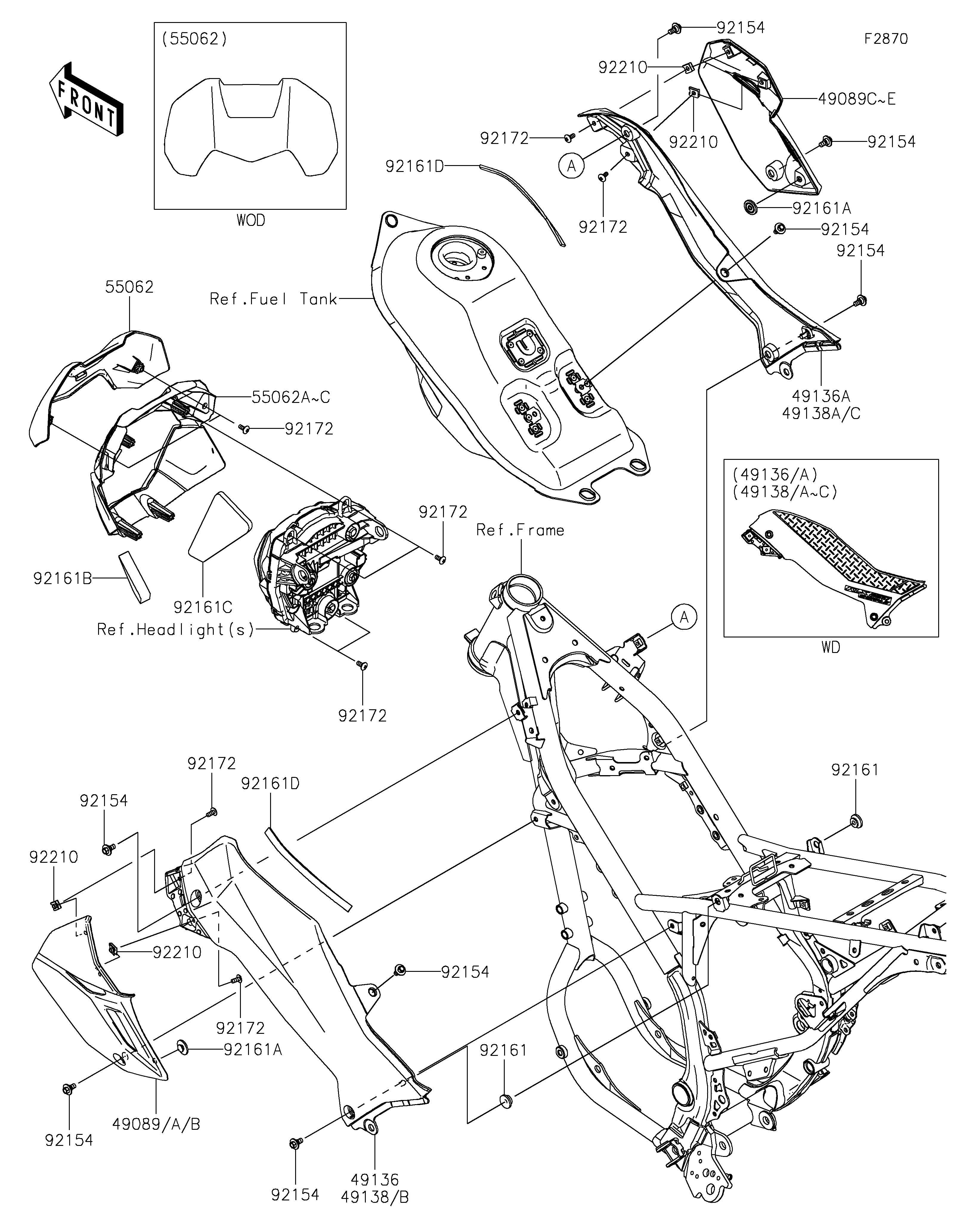

2026 KLX®230 SHERPA S ABS - Cowling

DOWNLOAD PDF
SELECT A NEW PART
49089
49089A
49089B
49089C
49089D
49089E
49136
49136A
49138
49138A
49138B
49138C
55062
55062A
55062B
55062C
92154
92154
92154
92154
92154
92154
92154
92154
92161
92161
92161A
92161A
92161B
92161C
92161D
92161D
92172
92172
92172
92172
92172
92172
92172
92210
92210
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SHROUD-ENGINE,LH,LWR,W.BEIGE 49089 49089-1201-67J 1
SHROUD-ENGINE,LH,LWR,M.C.GRAY 49089A 49089-1201-67K 1 CN
SHROUD-ENGINE,LH,LWR,M.S.GREEN 49089B 49089-1201-67L 1 CN
SHROUD-ENGINE,RH,LWR,W.BEIGE 49089C 49089-1203-67J 1
SHROUD-ENGINE,RH,LWR,M.C.GRAY 49089D 49089-1203-67K 1 CN
SHROUD-ENGINE,RH,LWR,M.S.GREEN 49089E 49089-1203-67L 1 CN
SHROUD-ENGINE,LH,UPP,W.BEIGE 49136 49136-5349-67J 1
SHROUD-ENGINE,RH,UPP,W.BEIGE 49136A 49136-5350-67J 1
SHROUD-ENGINE,LH,UPP,M.C.GRAY 49138 49138-5004-67K 1 CN
SHROUD-ENGINE,RH,UPP,M.C.GRAY 49138A 49138-5005-67K 1 CN
SHROUD-ENGINE,LH,UPP,M.S.GREEN 49138B 49138-5006-67L 1 CN
SHROUD-ENGINE,RH,UPP,M.S.GREEN 49138C 49138-5007-67L 1 CN
COVER-HEAD LAMP,UPP,EBONY 55062 55062-0003-6C 1
COVER-HEAD LAMP,LWR,W.BEIGE 55062A 55062-0004-67J 1
COVER-HEAD LAMP,LWR,M.C.GRAY 55062B 55062-0004-67K 1 CN
COVER-HEAD LAMP,LWR,M.S.GREEN 55062C 55062-0004-67L 1 CN
BOLT,FLANGED,6X13 92154 92154-4411 8
DAMPER 92161 92161-1531 2
DAMPER 92161A 92161-2547 2
DAMPER,HEAD LAMP COVER,LH 92161B 92161-2735 1
DAMPER,HEAD LAMP COVER,RH 92161C 92161-2736 1
DAMPER,10X180X3 92161D 92161-2737 2
SCREW,5X12 92172 92172-1095 10
NUT,CLIP,5MM 92210 92210-1666 4
