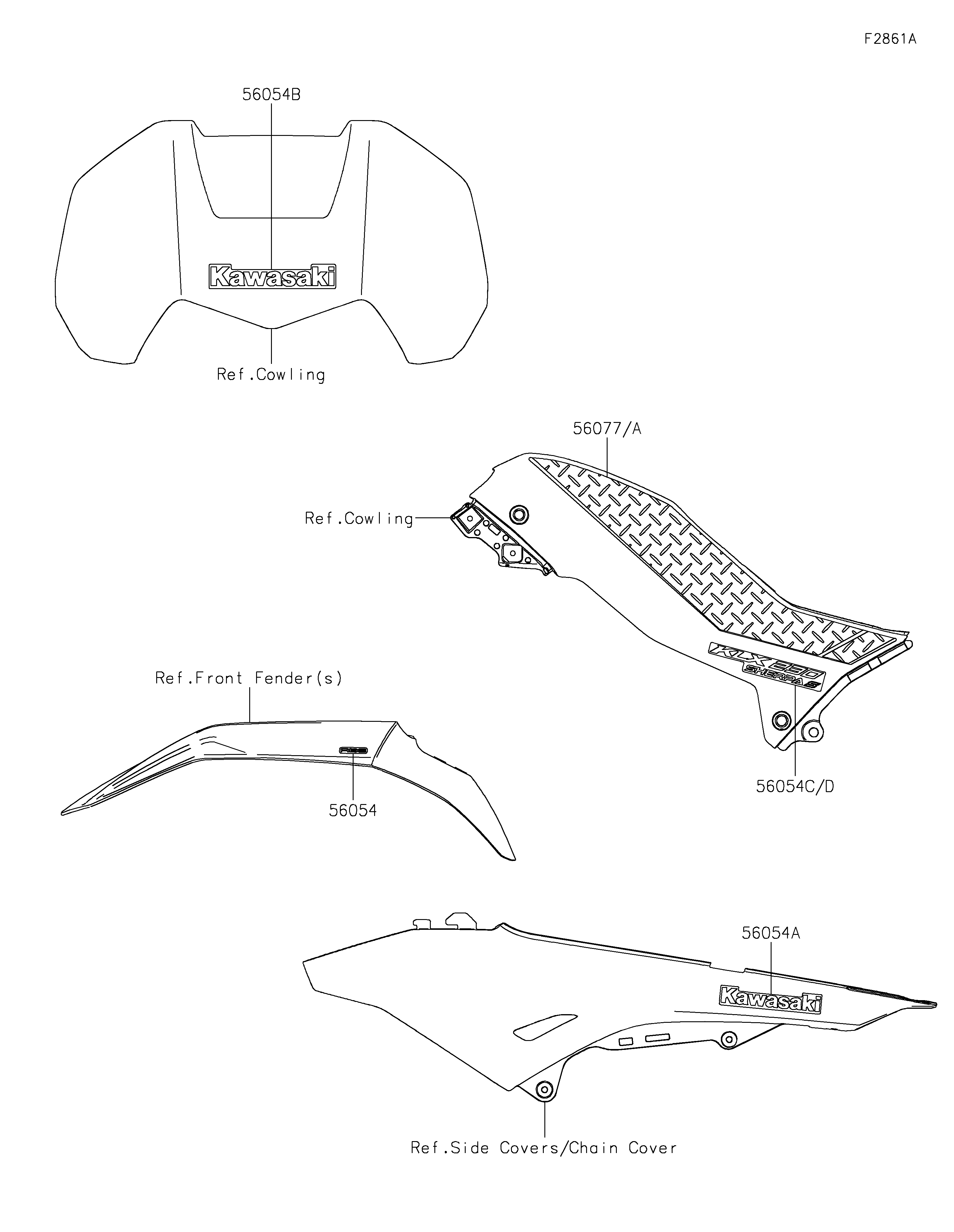

2026 KLX®230 SHERPA S ABS - Decals(Green)(RTFNN)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,ABS | 56054 | 56054-4345 | 2 | CN | |
| MARK,SIDE COVER,KAWASAKI | 56054A | 56054-4348 | 2 | CN | |
| MARK,HEAD LAMP COVER,KAWASAKI | 56054B | 56054-4353 | 1 | CN | |
| MARK,SHROUD,LH,KLX230 SHERPA S | 56054C | 56054-7057 | 1 | CN | |
| MARK,SHROUD,RH,KLX230 SHERPA S | 56054D | 56054-7058 | 1 | CN | |
| PATTERN,SHROUD,LH | 56077 | 56077-2657 | 1 | CN | |
| PATTERN,SHROUD,RH | 56077A | 56077-2658 | 1 | CN |
| MARK,ABS | |
| REF # | 56054 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CN |
| REMARKS | |
| MARK,SIDE COVER,KAWASAKI | |
| REF # | 56054A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CN |
| REMARKS | |
| MARK,HEAD LAMP COVER,KAWASAKI | |
| REF # | 56054B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| MARK,SHROUD,LH,KLX230 SHERPA S | |
| REF # | 56054C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| MARK,SHROUD,RH,KLX230 SHERPA S | |
| REF # | 56054D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,SHROUD,LH | |
| REF # | 56077 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,SHROUD,RH | |
| REF # | 56077A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
