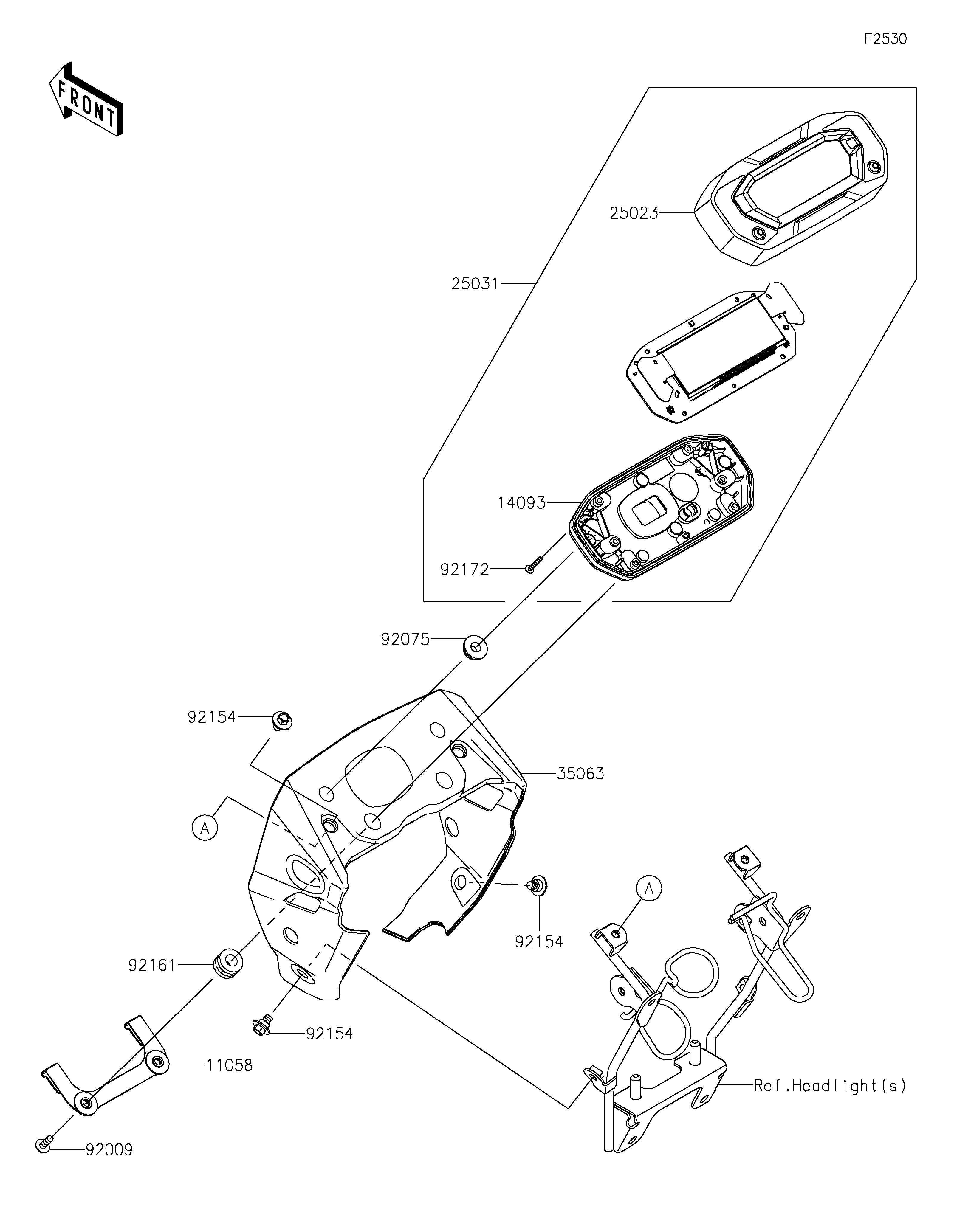

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,METER | 11058 | 11058-3869 | 1 | ||
| COVER,METER | 14093 | 14093-0941 | 1 | ||
| COVER-METER CASE | 25023 | 25023-0139 | 1 | ||
| METER-ASSY,LCD | 25031 | 25031-1423 | 1 | ||
| STAY,METER | 35063 | 35063-1604 | 1 | ||
| SCREW,TAPPING,5X14 | 92009 | 92009-1197 | 2 | ||
| DAMPER,RADIATOR GUARD | 92075 | 92075-1469 | 2 | ||
| BOLT,FLANGED,6X10 | 92154 | 92154-4486 | 4 | ||
| DAMPER,10X20X12 | 92161 | 92161-2102 | 2 | ||
| SCREW,TAPPING,3X20 | 92172 | 92172-1224 | 6 |
