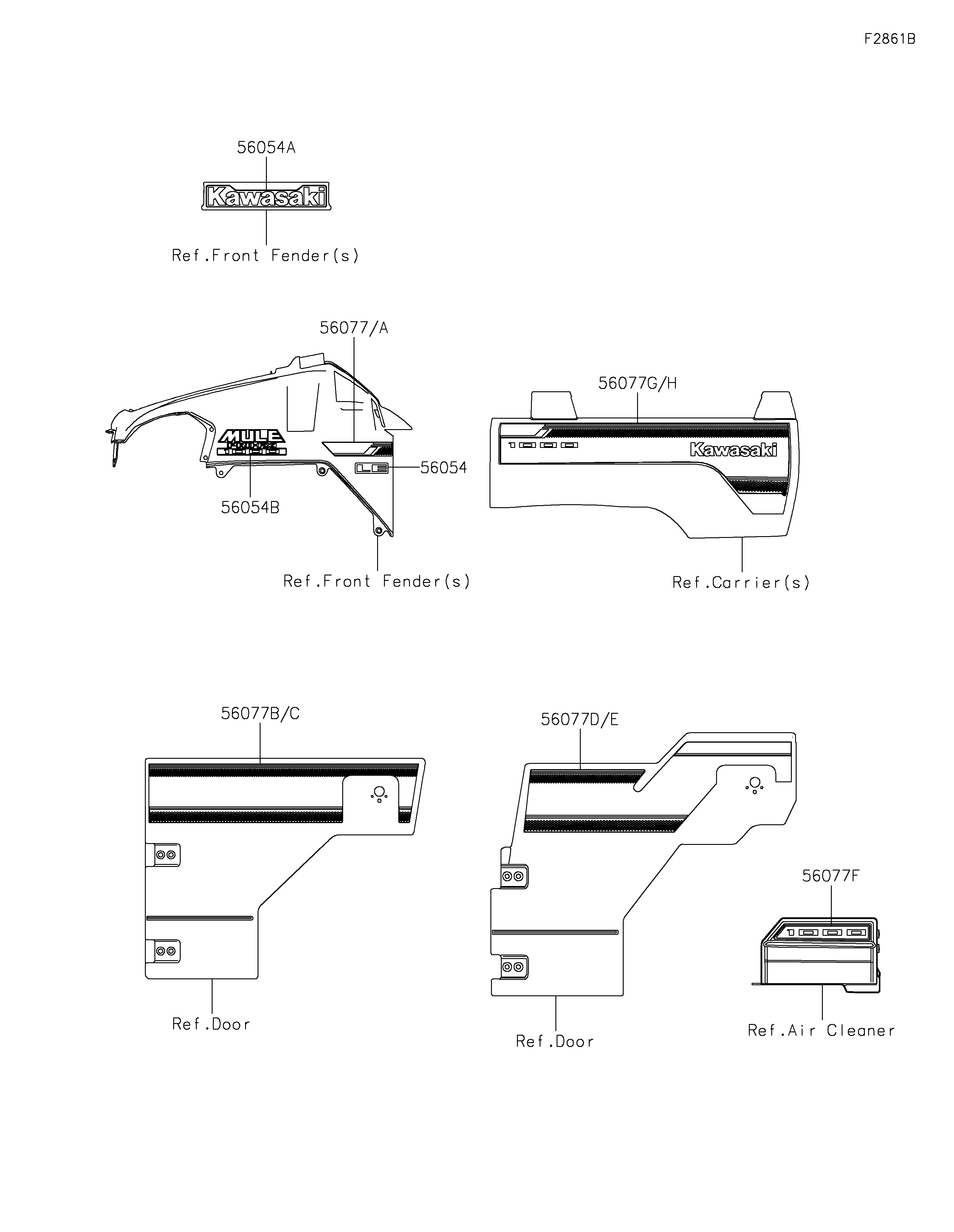

2025 MULE PRO-FXT 1000 LE - Decals(Red)(ASSNN/ASSNL)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,FR FENDER,LE | 56054 | 56054-1569 | 2 | ||
| MARK,KAWASAKI | 56054A | 56054-3890 | 1 | ||
| MARK,MULE PRO-FXT 1000 | 56054B | 56054-4014 | 2 | ||
| PATTERN,FR FENDER,LH | 56077 | 56077-1658 | 1 | ||
| PATTERN,FR FENDER,RH | 56077A | 56077-1659 | 1 | ||
| PATTERN,SIDE GUARD,LH,FR | 56077B | 56077-1660 | 1 | ||
| PATTERN,SIDE GUARD,RH,FR | 56077C | 56077-1661 | 1 | ||
| PATTERN,SIDE GUARD,LH,RR | 56077D | 56077-1662 | 1 | ||
| PATTERN,SIDE GUARD,RH,RR | 56077E | 56077-1663 | 1 | ||
| PATTERN,AIR FILTER COVER | 56077F | 56077-1664 | 1 | ||
| PATTERN,CARRIER PANEL,LH | 56077G | 56077-1665 | 1 | ||
| PATTERN,CARRIER PANEL,RH | 56077H | 56077-1666 | 1 |
| MARK,FR FENDER,LE | |
| REF # | 56054 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| MARK,KAWASAKI | |
| REF # | 56054A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,MULE PRO-FXT 1000 | |
| REF # | 56054B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FR FENDER,LH | |
| REF # | 56077 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FR FENDER,RH | |
| REF # | 56077A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE GUARD,LH,FR | |
| REF # | 56077B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE GUARD,RH,FR | |
| REF # | 56077C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE GUARD,LH,RR | |
| REF # | 56077D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE GUARD,RH,RR | |
| REF # | 56077E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,AIR FILTER COVER | |
| REF # | 56077F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,CARRIER PANEL,LH | |
| REF # | 56077G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,CARRIER PANEL,RH | |
| REF # | 56077H |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
