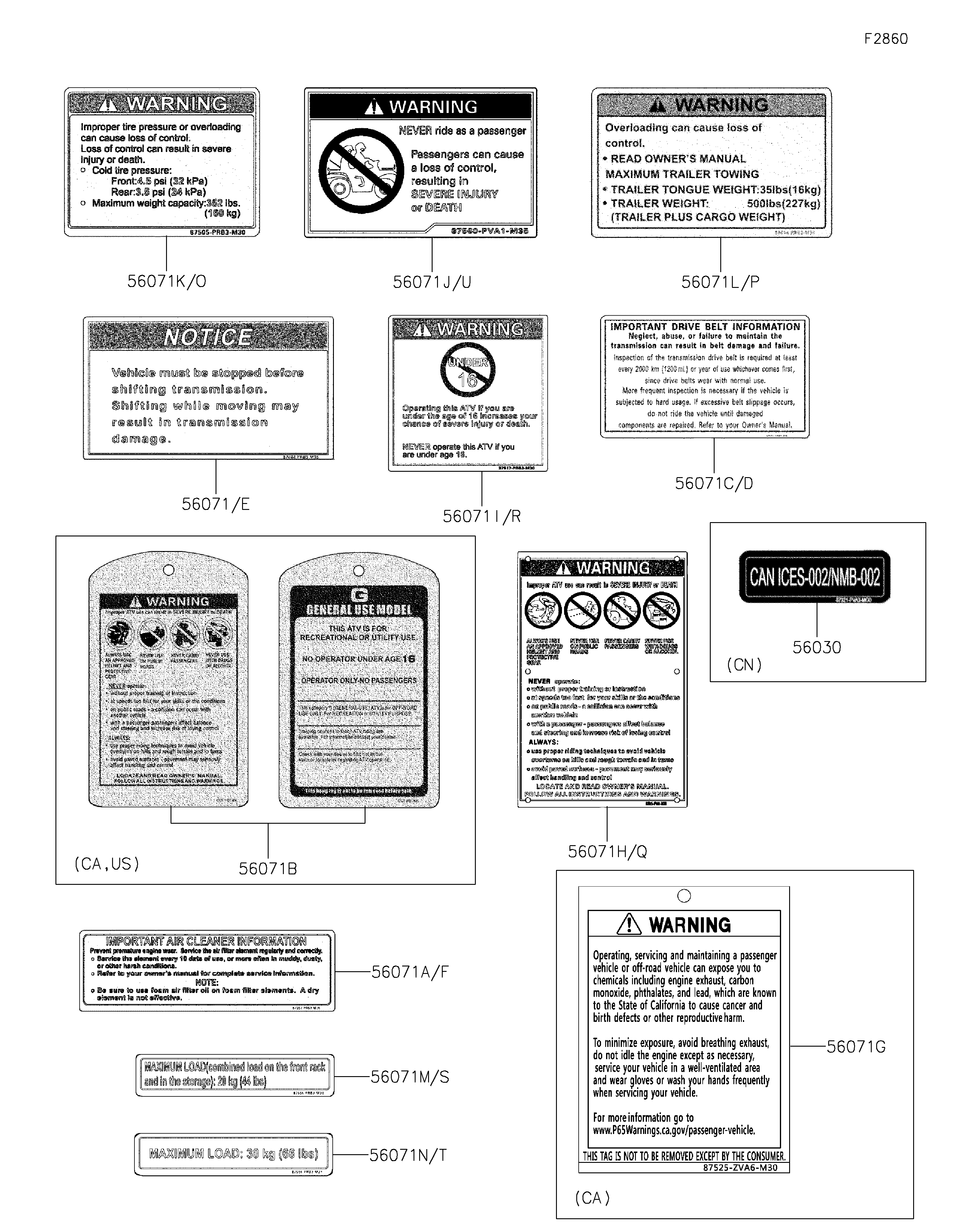

2026 Brute Force 300 - Labels

DOWNLOAD PDF
SELECT A NEW PART
56030
56071
56071A
56071B
56071C
56071D
56071E
56071F
56071G
56071H
56071I
56071J
56071K
56071L
56071M
56071N
56071O
56071P
56071Q
56071R
56071S
56071T
56071U
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LABEL,ICES-002 56030 56030-Y019 1 CN
LABEL-WARNING,SHIFT LEVER 56071 56071-Y034 1
LABEL-WARNING,AIR CLEANER 56071A 56071-Y035 1
LABEL-WARNING,HANGTAG 56071B 56071-Y039 1 CA,US
LABEL-WARNING,DRIVE BELT 56071C 56071-Y042 1
LABEL-WARNING,DRIVE BELT 56071D 56071-Y047 1 CN
LABEL-WARNING,SHIFT LEVER 56071E 56071-Y048 1 CN
LABEL-WARNING,AIR CLEANER 56071F 56071-Y049 1 CN
LABEL-WARNING,HANG TAG 56071G 56071-Y068 1 CA
LABEL-WARNING,OFF ROAD 56071H 56071-Y085 1
LABEL-WARNING,UNDER 16 56071I 56071-Y086 1
LABEL-WARNING,NO PASSENGER 56071J 56071-Y091 1
LABEL-WARNING,OFF ROAD 56071K 56071-Y099 1
LABEL-WARNING,MAX. CAPACITY 56071L 56071-Y100 1
LABEL-WARNING,CARRIER(20KG) 56071M 56071-Y101 1
LABEL-WARNING,CARRIER(30KG) 56071N 56071-Y102 1
LABEL-WARNING,OFF ROAD(F) 56071O 56071-Y103 1 CN
LABEL-WARNING,MAX LOAD 500LBS 56071P 56071-Y104 1 CN
LABEL-WARNING,GENERAL(F) 56071Q 56071-Y105 1 CN
LABEL-WARNING,UNDER 16(F) 56071R 56071-Y106 1 CN
LABEL-WARNING,CARRIER(20KG)(F) 56071S 56071-Y107 1 CN
LABEL-WARNING,CARRIER(30KG)(F) 56071T 56071-Y108 1 CN
LABEL-WARNING,NO PASSENGER(F) 56071U 56071-Y109 1 CN
