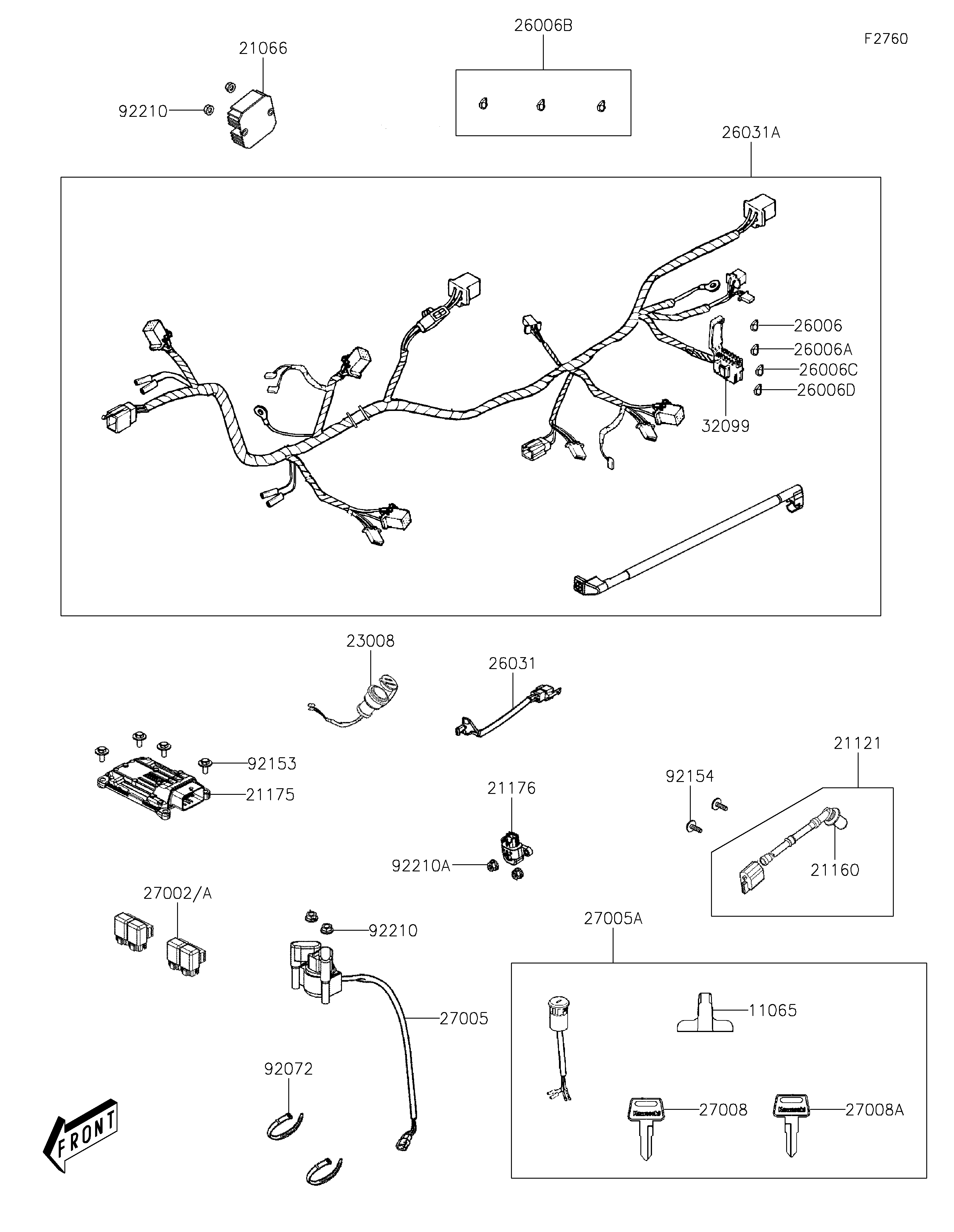

2026 Brute Force 300 - Chassis Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
11065
21066
21121
21160
21175
21176
23008
26006
26006A
26006B
26006C
26006D
26031
26031A
27002
27002A
27005
27005A
27008
27008A
32099
92072
92153
92154
92210
92210
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,KEY 11065 11065-Y007 1
REGULATOR-VOLTAGE 21066 21066-Y006 1
COIL-IGNITION 21121 21121-Y002 1
CAP-ASSY-PLUG 21160 21160-Y001 1
CONTROL UNIT-ELECTRONIC 21175 21175-Y012 1
SENSOR,VEHICLE-DOWN 21176 21176-Y017 1
SOCKET-ASSY,DC12V 23008 23008-Y006 1
FUSE,BLADE,15A 26006 26006-Y003 4
FUSE,BLADE,30A 26006A 26006-Y004 2
FUSE,SPARE 26006B 26006-Y015 1
FUSE,4A 26006C 26006-Y016 2
FUSE,7.5A 26006D 26006-Y017 2
HARNESS,SUB 26031 26031-Y006 1
HARNESS,MAIN 26031A 26031-Y043 1
RELAY-ASSY,LIGHT 27002 27002-Y007 2 CA
RELAY-ASSY,LIGHT 27002A 27002-Y015 2 CN,US
SWITCH,RELAY 27005 27005-Y009 1
SWITCH-ASSY-IGNITION 27005A 27005-Y010 1
KEY-LOCK,BLANK 27008 27008-Y003 1
KEY-LOCK,BLANK 27008A 27008-Y004 1
CASE,FUSE 32099 32099-Y008 1
BAND 92072 92072-Y008 2
BOLT,6X20 92153 92153-Y019 4
BOLT,4X25 92154 92154-Y240 2
NUT,6MM 92210 92210-Y027 4
NUT,FLANGE,5MM 92210A 92210-Y053 2
